6 Station extensions User Manual SIPLACE D1/D2
6.4 PCB barcode scanner From software version SR.605.xx 07/2008 EN Edition
292
6.4.5 Warning label W216 on the cover of the PCB input side
6
Warning label W216 "Laser class 2" on the cover of the PCB input side,
item no. 03010316-01 (number per machine: 1)
PLEASE NOTE 6
When you install a PCB barcode scanner on the machine, you must attach laser warning label
W206 contained in the retrofit kit to the cover on the PCB input side.
6
6.4.6 Positioning PCB barcode labels on the PCB
PLEASE NOTE
Restrictions for PCBs longer than 430 mm
6.4.6.1 Positioning along the long side of the PCB -
Scanning beam across the direction of travel
6

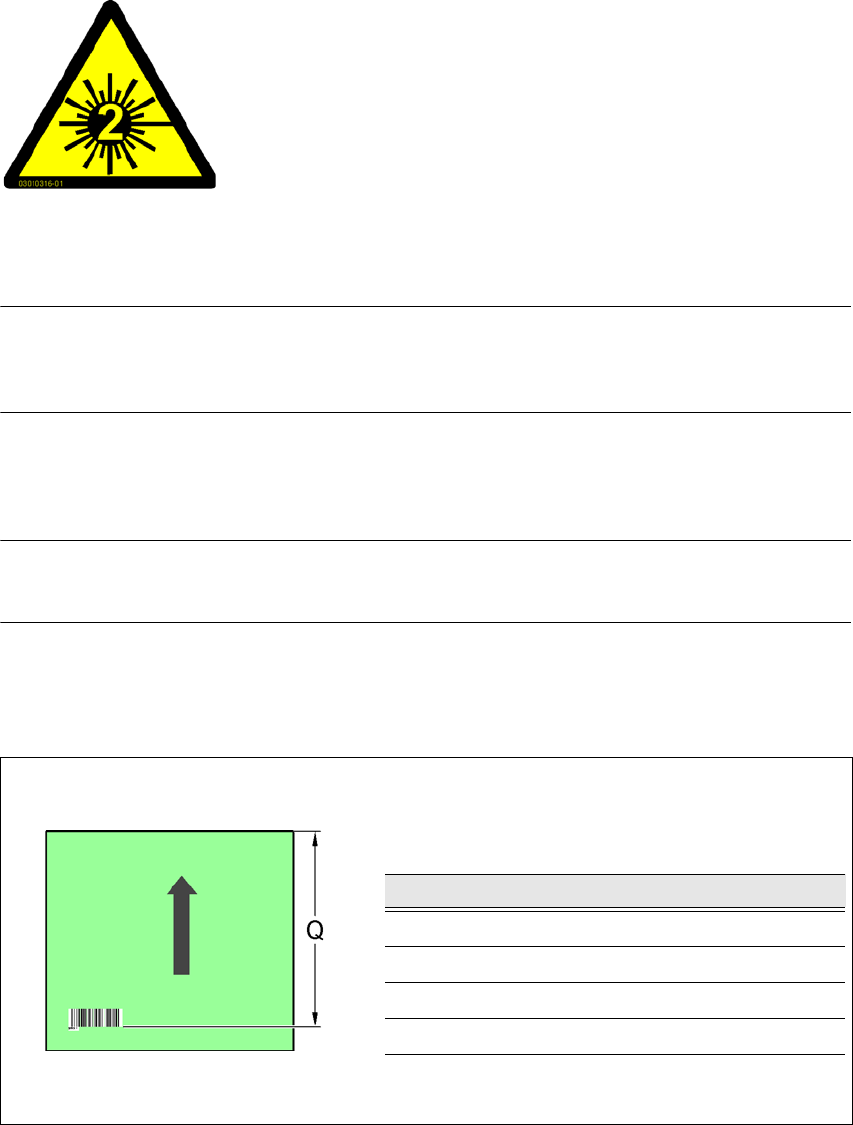

Fig. 6.4 - 4 Positioning along the long side of the PCB - Scanning beam across the direction of travel
6
6
6
6
6
6
LASER RADIATION!
Do not look into beam
Laser class 2
PCB barcode scanner Q [mm]
2D topside 390
1D topside 390
2D underside 430
1D underside 430
User Manual SIPLACE D1/D2 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.4 PCB barcode scanner
293
6.4.6.2 Positioning along the long side of the PCB -
Scanning beam along the direction of travel
6

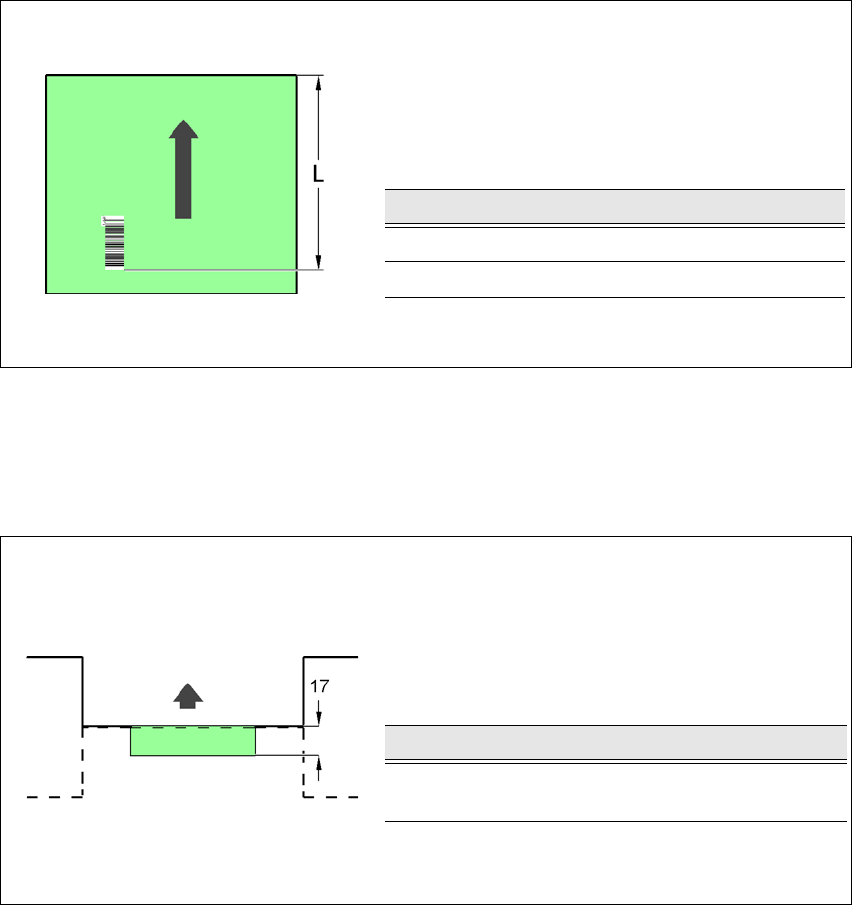

Fig. 6.4 - 5 Positioning along the long side of the PCB - Scanning beam along the direction of travel
6.4.6.3 PCB overshoot over the machine with the dual conveyor
6
Fig. 6.4 - 6 PCB overshoot over the machine with the dual conveyor
PCB barcode scanner L [mm]
1D topside 320 - 350
1D underside 380 - 410
PCB barcode scanner Overshoot [mm]
2D underside on the dual con-
veyor
17
Input side of the downstream machine
Output side of the upstream machine
6 Station extensions User Manual SIPLACE D1/D2
6.4 PCB barcode scanner From software version SR.605.xx 07/2008 EN Edition
294
6.4.6.4 Positioning along the width of the PCB -
Scanning beam across the direction of travel
6
Fig. 6.4 - 7 Positioning along the width of the PCB - Scanning beam across the direction of travel
6.4.6.5 Positioning along the width of the PCB -
Scanning beam along the direction of travel,
PCB barcode scanner 1D topside
6
Fig. 6.4 - 8 Positioning along the width of the PCB - Scanning beam along the direction of travel
PCB barcode scanner 1D topside
PCB barcode scanner LQ [mm] RQ [mm]
2D topside 3 3
1D topside 3 3
2D underside 5 5
1D underside 5 5
PCB dimensions/conveyor LO [mm] RO [mm]
460 mm / SC 3 20
508 mm / SC 3 44
216 mm / DC1 3 24
242 mm / DC1
430 mm / SM1
358
216 mm / DC2 3 3
242 mm / DC2
430 mm / SM2
33
