3 Technical data for the machine User Manual SIPLACE D1/D2
3.10 Feeder modules From software version SR.605.xx 07/2008 EN Edition
156
3.10.8.10 44 mm S DP tape feeder module for deep pockets

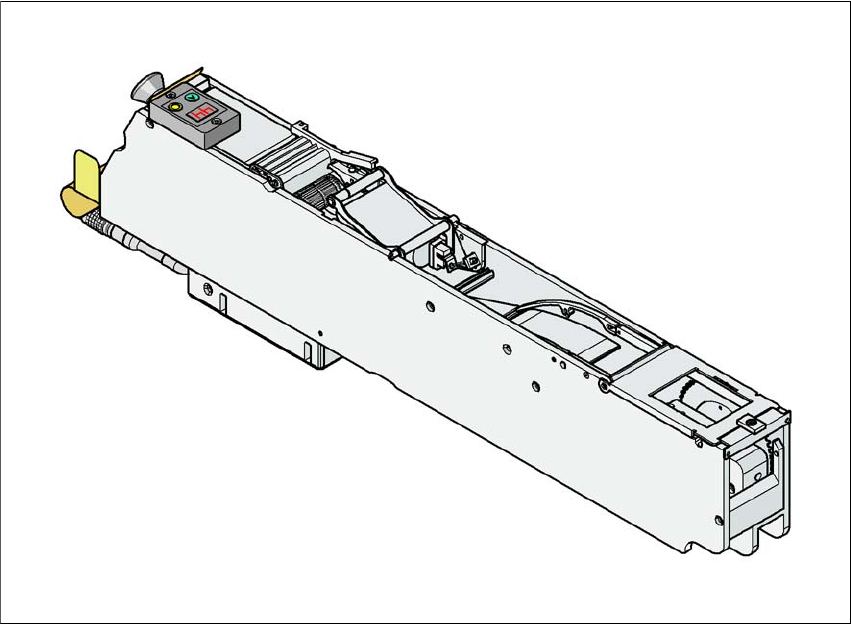

Fig. 3.10 - 10 44 mm S DP tape feeder module for deep pockets
Item no. 00141194-xx 3
Width 54.6 mm 3
Tracks per feeder module 1 3
Feeder module locations filled 2 3
Max. number of feeder mod. per machine 2 x 7 3
Tape height Up to 25 mm 3
Conveyor increment From 4 mm to 52 mm in 4 mm increments 3
Tape material Blister tapes 3
Max. component height 24 mm 3
3
User Manual SIPLACE D1/D2 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.10 Feeder modules
157
3.10.8.11 56 mm S tape feeder module
Fig. 3.10 - 11 56 mm S tape feeder module
Item no. 00141095-xx 3
Width 66.6 mm 3
Tracks per feeder module 1 3
Feeder module locations filled 2.5 3
Max. number of feeder mod. per machine 2 x 6 3
Stock of components for 7" reels Approx. 2,000 3
Conveyor increment From 4 to 68 mm in 4 mm increments 3
Tape material Blister tapes 3
Max. component height 14 mm 3
3
3 Technical data for the machine User Manual SIPLACE D1/D2
3.10 Feeder modules From software version SR.605.xx 07/2008 EN Edition
158
3.10.8.12 56 mm S DP tape feeder module for deep pockets
Fig. 3.10 - 12 56 mm S DP tape feeder module for deep pockets
Item no. 00141195-xx 3
Width 66.6 mm 3
Tracks per feeder module 1 3
Feeder module locations filled 2.5 3
Max. number of feeder mod. per machine 2 x 6 3
Tape height Up to 25 mm 3
Conveyor increment From 4 mm to 68 mm in 4 mm increments 3
Tape material Blister tapes 3
Max. component height 24 mm 3
3
