1 Introduction User Manual SIPLACE D1/D2 1.1 Description of the machine From software version SR.605.xx 07/2008 EN Edition 22 1.1.6 Serial number of the machine The serial number of the ma chine can be found in two dif f…
User Manual SIPLACE D1/D2 1 Introduction
From software version SR.605.xx 07/2008 EN Edition 1.1 Description of the machine
21
– 0201 package
We can supply the 0201 package for processing 0201 components with the 12-segment Col-
lect&Place head. 1
– Stationary component camera, type 33
Use component camera , type 33, with the higher resolution and the larger field of view in
place of component camera type 36. 1
– Single head configuration
The SIPLACE D1 placement machine can be configured as single head machine.
– Splice detection for tape feeder modules
Splice detection for tape feeder modules can be retrofitted on the machines.
1 Introduction User Manual SIPLACE D1/D2
1.1 Description of the machine From software version SR.605.xx 07/2008 EN Edition
22
1.1.6 Serial number of the machine
The serial number of the machine can be found in two different places.
– The serial number (e.g. C1) is struck on the base of the machine frame, on the same side as
the pneumatic unit (see item 1 in Fig. 1.1 - 4
).
– The serial number is also punched on the machine's rating plate (see item 2 in Fig. 1.1 - 4
).
1

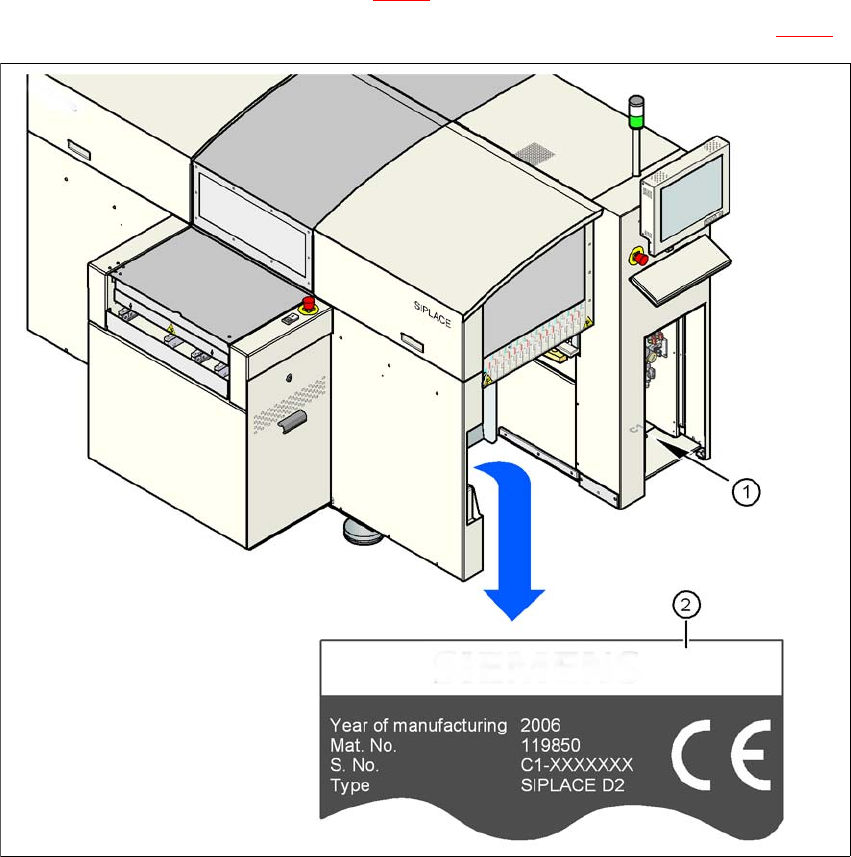

Fig. 1.1 - 4 Places with the serial number on the machine
User Manual SIPLACE D1/D2 1 Introduction
From software version SR.605.xx 07/2008 EN Edition 1.1 Description of the machine
23
1.1.7 EU Declaration of Conformity
The product/device described below 1
Product: Placement machine
Type: SIPLACE D1 SIPLACE D2
Item no.: 00119800 00119850 1
manufactured by
SIPLACE
Electronics Assembly Systemsr
Rupert-Mayer-Str. 44
81379 München 1
conforms to the regulations and standards listed in the EU Declaration of Conformity provided.
1.1.8 Use as prescribed
The product must only be used for its intended purposes as described in the catalogs and techni-
cal descriptions, namely the placement of SMD components, and only with the third-party equip-
ment and components recommended or permitted by SIPLACE Company. Use for a different or
extended purpose is not prescribed.
If the product is not used as prescribed, SIPLACE Companyaccepts no liability for any damage
that may occur and does not guarantee that the components will work properly and without prob-
lems.
Use as prescribed also includes compliance with all the instructions in the user manual.
For the product to operate correctly and reliably, it must have been transported, stored, erected
and assembled correctly and must be operated and maintained with care.
1.1.9 Failure to use the product as prescribed
Failure to use the product as prescribed can result in both danger to life and limb and material
damage. For this reason any use that is not prescribed is not allowed. If the product is not used
as prescribed, SIPLACE Companyaccepts no liability for any damage that may occur and does
not guarantee that the components will work properly and without problems.
Use of the machine other than as prescribed includes, for example
– operation of the placement machine with safety equipment deactivated or removed.
– placement of components that do not meet the permitted specification.
– use of component feeder modules that have not been approved.
– use of unauthorized accessories and additional modules.
