User Manual SIPLACE D1/D2 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.2 Warning labels
43
2.2.1.1 Warning label W201
2
Pos. W201 in Fig. 2.2 - 1, page 41 (number per machine: 1)
2.2.1.2 Warning label W203
2
Pos. W203 in Figs. 2.2 - 1, page 41 and 2.2 - 2, page 42 (number per machine: 4)
2.2.1.3 Warning label W204
2
Pos. W204 in Figs. 2.2 - 1, page 41 and 2.2 - 2, page 42 (number per machine: 4)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
SAFE OPERATION OF THE MACHINE
Safe operation of the machine depends absolutely on the
operator being familiar with the user manual and safety
instructions and putting them into effect.
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and
hands.
Do not reach into the machine while it is running
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and
hands.
Do not reach into the machine while it is running
2 Operational safety User Manual SIPLACE D1/D2
2.2 Warning labels From software version SR.605.xx 07/2008 EN Edition
44
2.2.1.4 Warning label W206
2
Pos. W206 in Fig. 2.2 - 1, page 41, item no. 03009345-01 (number per machine: 1)
2.2.1.5 Warning label W210
2
Pos. W210 in Figs. 2.2 - 1, page 41 and 2.2 - 2, page 42, item no. 03009350-01
(number per machine: 3)
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
2
2
2
2
2
2
Warning label on the EMERGENCY STOP button
User Manual SIPLACE D1/D2 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.2 Warning labels
45
2.2.2 Warning labels for the linear drives

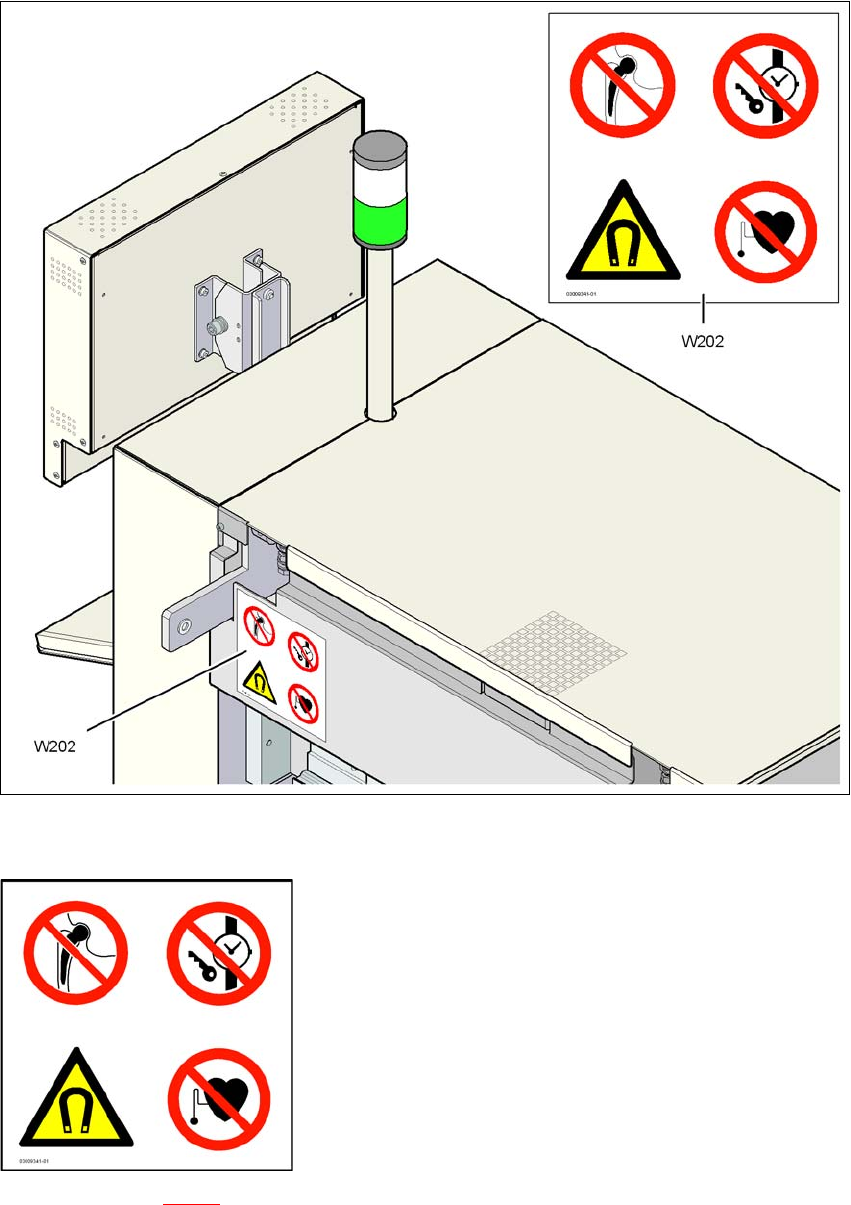

Fig. 2.2 - 3 Warning label W202 for the Y axis linear drives
Pos. W202, item no. 03009341-01
2
Pos. W202 in Fig. 2.2 - 3, item no. 03009341-01 (number per machine: 4)
