User Manual SIPLACE D1/D2 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.11 Component trolley
173
NOTE ON OPERATIONAL SAFETY 3
All component trolleys must be docked on the machine in order to operate it. If they are not, the
machine stays in EMERGENCY STOP status. The placement process is interrupted.
The communication interface (item 5 in Fig. 3.11 - 3
, page 172) supplies the necessary voltages
and control signals to the feeder modules.
The tape reel container (item 4 in Fig. 3.11 - 3
, page 172) holds tape reels up to 19" (483 mm).
The pull-out waste tape container (item 4 in Fig. 3.11 - 3
, page 172) can be found beneath the
chassis. The cut waste tape travel down a chute into the waste container, which must be regularly
emptied.
3.11.3 Technical data
3
3
Length of the component trolley without handles
Length with handle folded up
Width
715 mm
881 mm
570 mm
Height of bottom edge of table bed for
830 mm PCB conveyor height
900 mm PCB conveyor height
930 mm PCB conveyor height
950 mm PCB conveyor height
680 mm
750 mm
780 mm
800 mm
PCB conveyor height 830 mm ± 15 mm (standard)
900 mm ± 15 mm (option)
930 mm ± 15 mm (option)
950 mm ± 15 mm (SMEMA option)
Weight
without feeder modules
with feeder module at all locations
a
a) All the locations on the component trolley are filled with 2x8 mm S feeder modules.
77.5 kg
132.0 kg
Reel diameter
standard
maximum
up to 432 mm (17")
483 mm (19")
Locations for feeder modules max. 15
Changeover time less than 1 min.
3 Technical data for the machine User Manual SIPLACE D1/D2
3.11 Component trolley From software version SR.605.xx 07/2008 EN Edition
174
3.11.4 Tape container
The tape container can hold reels up to 19" in diameter. You should use spindles to process reels
of 15" diameter or more. The insertion of separating plates is described in Section 5.5.4
page 245.
PLEASE NOTE 3
For optimum operation, we recommend the use of spindles for 15" diameter or more.
3

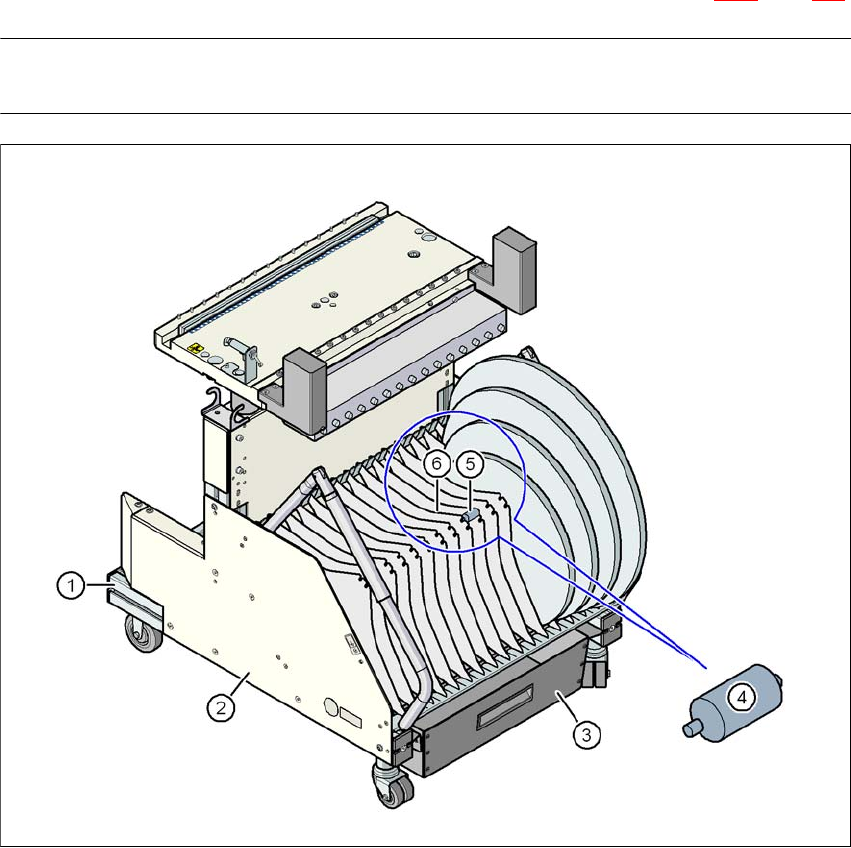

Fig. 3.11 - 4 Component trolley with tape container
(1) Component trolley
(2) Tape container
(3) Waste tape container
(4) Spindle (enlarged)
(5) Position of the spindles
(6) Separating plate
User Manual SIPLACE D1/D2 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.11 Component trolley
175
3.11.4.1 Maximum tape reel diameter
The tape reels are mounted on spindles in the tape reel container. The results apply whether or
not the mount for the third tape reel is installed.
3
3
3
3.11.5 External power supply for component trolley
Item no. 00119781-xx External power supply, component trolley, D1, D2, D3
To keep the time required for a setup change as short as possible, component trolleys can be set
up in advance at a special external location. The feeder module
functions and setting can be checked there to prepare for use. We
provide an external power supply for this purpose. It is used to sup-
ply the component trolley with the required electrical power and com-
pressed air.
3.11.5.1 Technical data
The kit contains a main power cable to European standards, a main power cable to US standards
and a connecting cable between the power supply and the component trolley.
3.11.6 Compressed air supply for bulk case feeder modules
Item no. 00142335-xx Bulk case compressed air distributor
Bulk case feeder modules require compressed air in order to work. A compressed air supply for
bulk case feeder modules is therefore available as an option.
PCB conveyor height
Maximum tape reel
diameter
Without splice
detection option
With splice detection
option
950 mm
19"
17"
Yes
Yes
No
Yes
930 mm 17" Yes Yes
900 mm 17" Yes No
830 mm 15" No No
Main power voltage 230 VAC ± 5%
120 VAC ± 5%
Compressed air connection Max. 1.0 MPa (10 bar)
Output pressure Can be adjusted with pressure regulator
