5 Tasks for the operating personnel User Manual SIPLACE D1/D2
5.5 Carrying out a walk-through inspection From software version SR.605.xx 07/2008 EN Edition
246
5

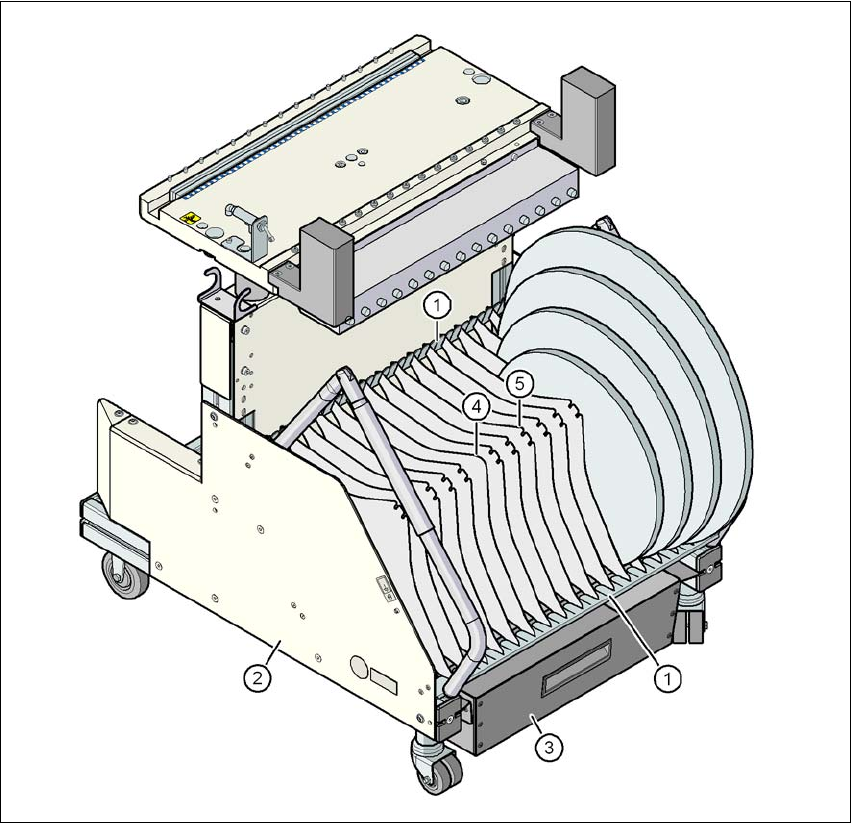

Fig. 5.5 - 2 Separating plates in the tape container
(1) Guide rail for the separating plates
(2) Tape container
(3) Waste tape container
(4) Position of the separating plate if no spindles are used
(5) Position of the separating plate if spindles are used
User Manual SIPLACE D1/D2 5 Tasks for the operating personnel
From software version SR.605.xx 07/2008 EN Edition 5.5 Carrying out a walk-through inspection
247
5.5.5 Using spindles for large tape reels
→ Insert spindles into the separating plates when using large tape reels.
PLEASE NOTE 5
We recommend that you use spindles if the tape reel diameter exceeds 15" (381 mm). This will
ensure that the feeder modules operate reliably.
5

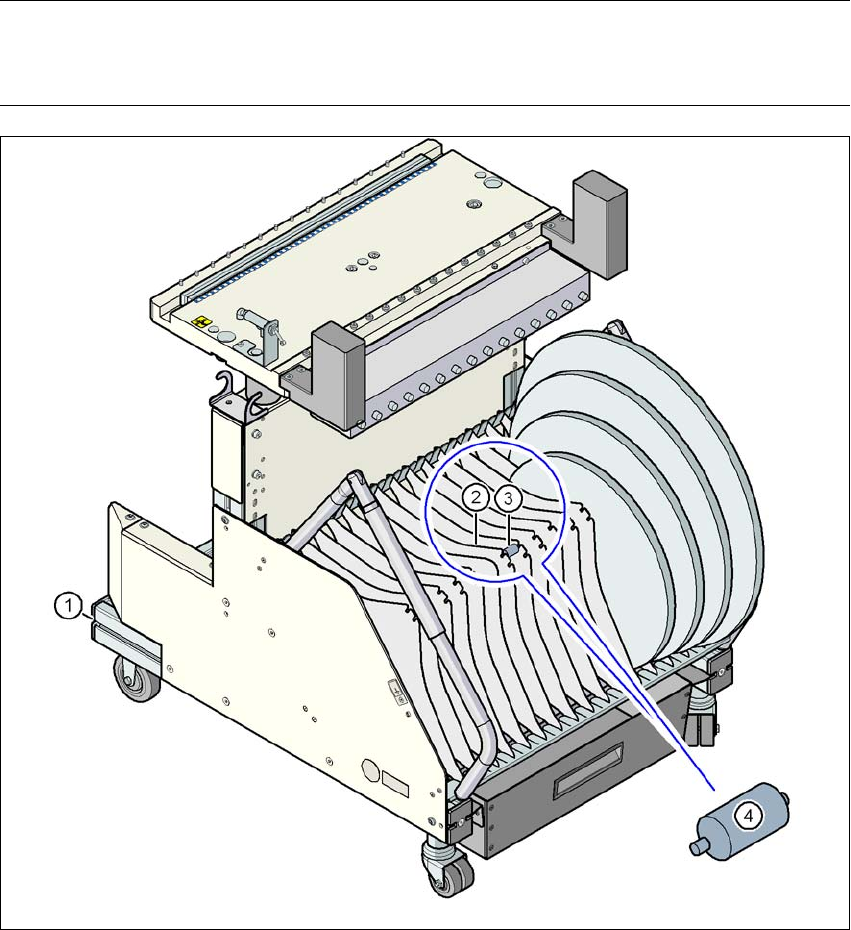

Fig. 5.5 - 3 Inserting spindles for large reels
5
(1) Component trolley
(2) Separating plate
(3) Position of the spindles
(4) Spindle (enlarged)
5 Tasks for the operating personnel User Manual SIPLACE D1/D2
5.6 Setting up the feeder modules From software version SR.605.xx 07/2008 EN Edition
248
5.6 Setting up the feeder modules
5

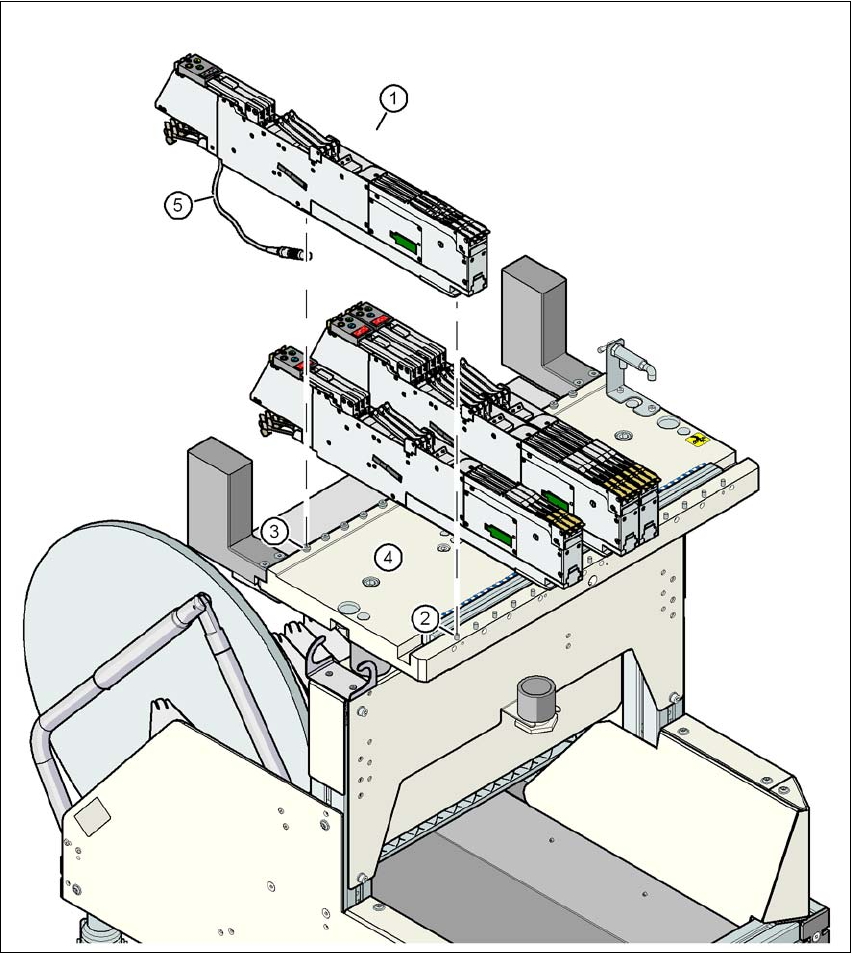

Fig. 5.6 - 1 Component table with 15 locations for S feeder modules
(1) S feeder module
(2) Centering pin
(3) Centering ball
(4) Component table
(5) Connecting cable for the S feeder module
