6 Station extensions User Manual SIPLACE D1/D2 6.12 C&P high-resolution CO camera, type 29, 27 x 27 , di gital Fr om software version SR.605.xx 07/2008 EN Edition 304 6.12 C&P high-resolution CO camera, type 29, …
User Manual SIPLACE D1/D2 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.11 Component sensor for the C&P12 head
303
PLEASE NOTE 6
If you are placing 0201 components with the 906 nozzle, it is essential to use the component sen-
sor since no vacuum measurements are possible. 6
Using the component sensor can improve the dpm rate even when placing other small compo-
nents, such as 0402 or 0603 components. When you select a component sensor from the pack-
age form list, remember that the component can only be placed on machines that are equipped
with that component sensor.
If you wish to test components with the component sensor, then it must be configured on the line.
The following alternatives are then available:
New set-up The set-up optimization automatically assigns the components to the
component sensor, if the sensor is installed.
Old set-up A new GF number is assigned to components to be checked with the
component sensor.
Central data management If not every machine on the line is equipped with the component sen-
sor, then a new package form number is assigned for every compo-
nent to be checked with the component sensor.
PLEASE NOTE 6
– The component sensor may only be retrofitted by SIPLACE Companyservice engineers.
– Recalibrate the 12-segment C&P head with the SITEST program after installing the compo-
nent sensor.
6 Station extensions User Manual SIPLACE D1/D2
6.12 C&P high-resolution CO camera, type 29, 27 x 27, digital From software version SR.605.xx 07/2008 EN Edition
304
6.12 C&P high-resolution CO camera, type 29, 27 x 27, digital
Item no. 00119779-xx High-resolution camera, C&P12, digital, type 29
6.12.1 Structure
6

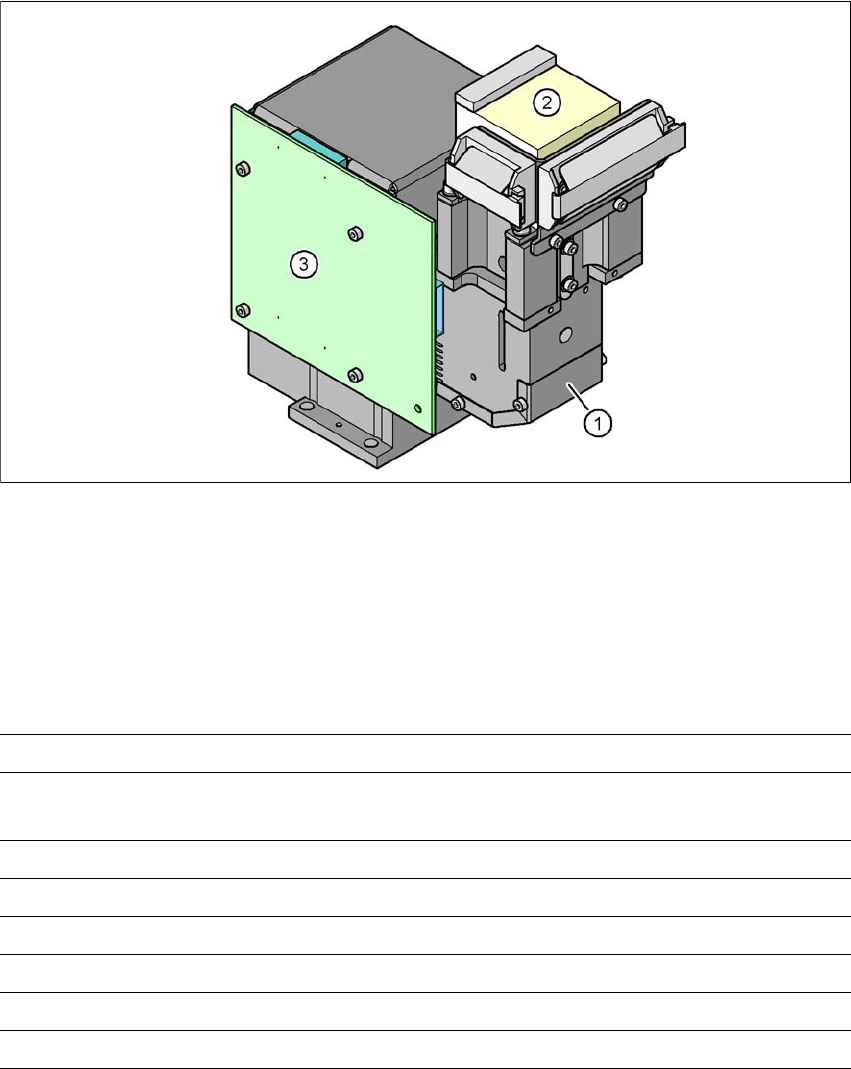

Fig. 6.12 - 1 C&P component camera, type 29, 27 x 27, digital
(1) Component camera lens and illumination
(2) Camera amplifier
(3) Illumination control
6.12.2 Technical data
6
Component dimensions 0.3 x 0.3 mm² to 18.7 x 18.7 mm²
Range of components 0201 to 27 x 27 mm²
PLCC, SO, QFP, TSDP, SOT, MELF, CHIP, IC BGA
Min. lead pitch 0.3 mm
Min. lead width 0.15 mm
Min. ball pitch 0.25 mm
Min. ball diameter 0.14 mm
Field of vision 32 x 32 mm²
Method of illumination Front-illumination (5 levels, programmable as required)
User Manual SIPLACE D1/D2 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.13 01005 package
305
6.13 01005 package
Item no. 00119920-xx 01005 package for D4/D2/D1
The SIPLACE D1 and D2 machines are already prepared to place 01005 components as stan-
dard. In order to process 01005 components one simply needs upgrading of the 12-segment Col-
lect&Place head. The retrofitting package contains the following parts:
– CO camera, C&P, type 38, 16 x 16, digital Item no. 03051870-xx, 1x
– A type 12 sleeve complete, 270°-sub-division Item no. 03054107-xx, 3x
– Nozzle, type 905 ESD, 1 x 0.15 Item no. 03057320-xx, 12x
– Assembly instructions 01005 package for D4/D2/D1
German and English Item no. 00195398-xx, 1x
6.14 0201 package
Item no. 00119720-xx 0201 package for C&P12, X/D series
We can supply the 0201 package for processing 0201 components with the 12-segment Col-
lect&Place head. This contains:
– C&P component camera (type 29), digital Item no. 00119779, 1x
– Component sensor for the 12-segment C&P head Item no. 00118021, 1x
– Nozzle, type 706/906 Vectra ceramic Item no. 00345031, 12x
6.15 Single head configuration on the D1 machine
The following extension kits are available for configuring the SIPLACE D1 machines with only one
placement head:
Item no. 00119862-xx Extension kit P&P for D1 Single
Item no. 00119863-xx Extension kit C&P6 for D1 Single
Item no. 00119864-xx Extension kit C&P12 for D1 Single
The extension kits include servo amplifier for the head axes and the cable set.
