4. Part Data Settings QD004-18 110 NXT Programming Manual P_pattern 23, 24 These cannot be used on th e NXT. The lead ti p and width are detected and the r esults are used to det ermine the part position similar to p_ pa…
QD004-18 4. Part Data Settings
NXT Programming Manual 109
P_pattern 15, 16
Basically, these are the same as p_pattern types 5 and 6. The major difference is that with
these p_patterns, the inward pointing lead tip is not used for determining the part
positioning. The lead width detection results only are used to determine the part
positioning. The lead tip detection results are used only as reference data for internal vision
processing items.
• Type 15: The lead appears black and the outside circumference is white.
• Type 16: The lead appears white and the outside circumference is black.
It is only possible to use this for parts that have leads that are to be detected on two
perpendicular sides or more.
Furthermore, the information for the part positioning using the lead length is not acquired
so these types cannot be used for parts with leads on one side or two opposing sides only.
Example Target Parts
Type 15:Currently no example target part exists.
Type 16:Black background and body parts with orthogonal leads in the body (e.g., LCC)
processed with frontlighting.

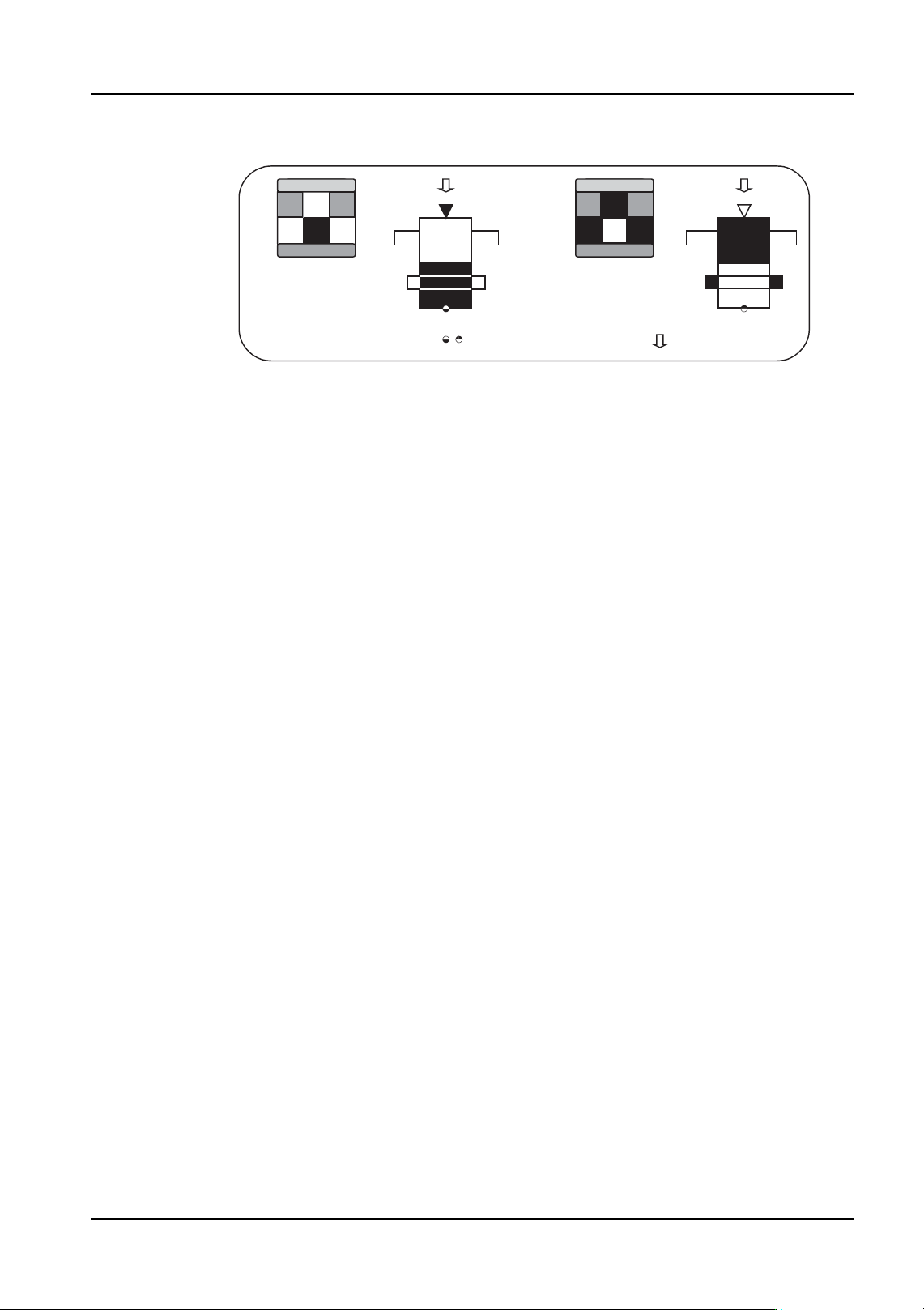

NXTVPP018E
:Entered element position
:Defined element direction
Type 16 Type 15
4. Part Data Settings QD004-18
110 NXT Programming Manual
P_pattern 23, 24
These cannot be used on the NXT. The lead tip and width are detected and the results are
used to determine the part position similar to p_pattern types 3 and 4. The major difference
is that with these p_patterns, the color of the points on the lead at which the lead tip and
lead width are detected are opposite.
• Type 23: The lead tip appears white, while the lead body appears black. The
lead tip half of the outside circumference is black, while the body half is white.
• Type 24: The lead tip appears black, while the lead body appears white. The
lead tip half of the outside circumference is white, while the body half is black.
These are primarily used for parts with J-leads on one side or two opposing sides.
With parts that have J-leads on two perpendicular sides or more, the lead width direction is
only required for determining the positioning, therefore it is recommended to select a
different p_pattern (type: 33, 34) that matches the processing conditions.
Example Target Parts
Type 23: Currently no example target part exists.
Type 24: SOJ parts processed with frontlighting with a white background.

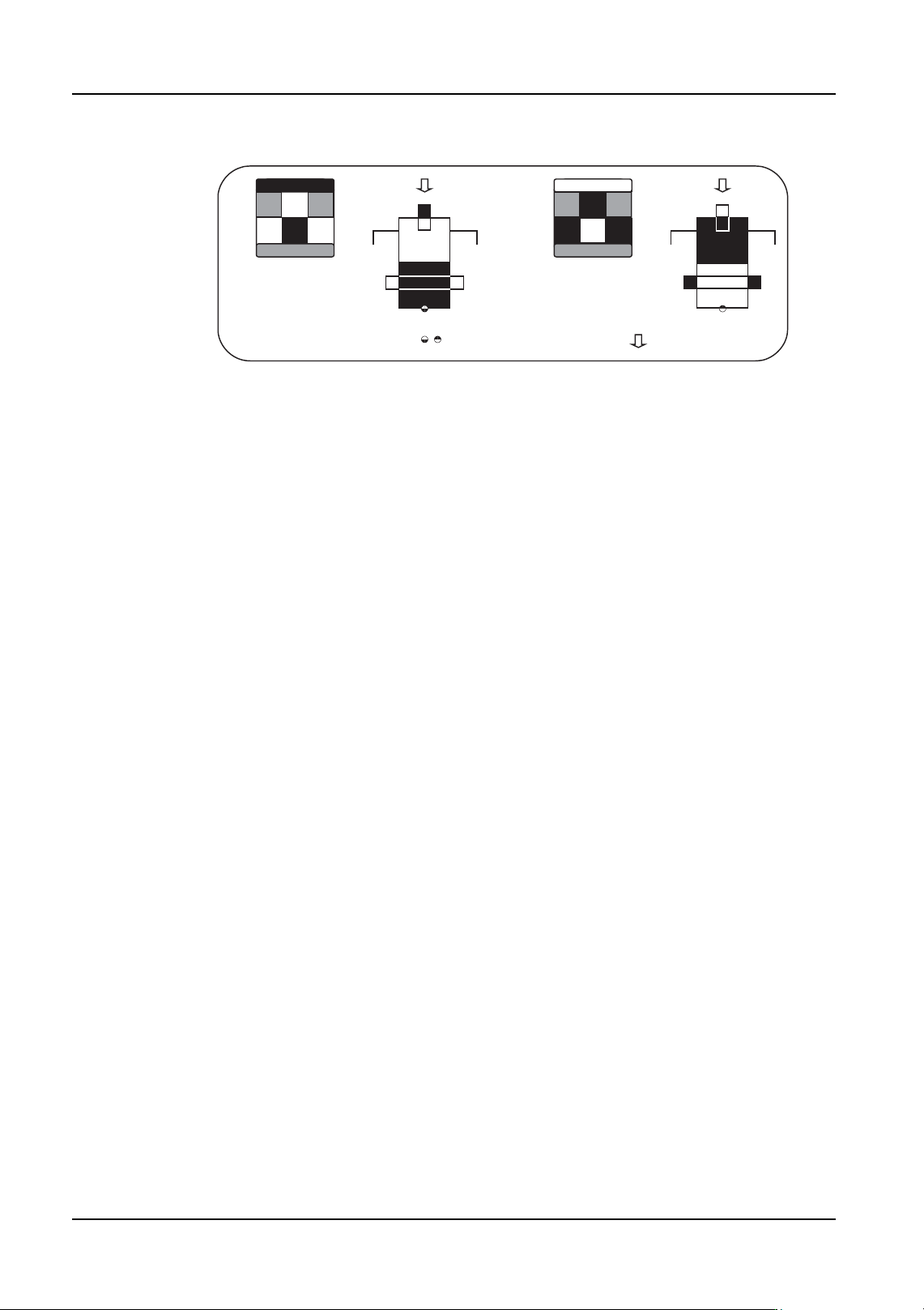

NXTVPP019E
:Entered element position
:Defined element direction
Type 23 Type 24
QD004-18 4. Part Data Settings
NXT Programming Manual 111
P_pattern 33, 34
These cannot be used on the NXT. Basically, these types are the same as the types 23
and 24. The major difference is that with these p_patterns, the lead tip is not used for
determining the part positioning. The lead width detection results only are used to
determine the part positioning. The lead tip detection results are used only as reference
data for internal vision processing items.
• Type 33: The lead tip appears white, while the lead body appears black. The
lead tip half of the outside circumference is black, while the body half is white.
• Type 34: The lead tip appears black, while the lead body appears white. The
lead tip half of the outside circumference is white, while the body half is black.
It is only possible to use this for parts that have leads that are to be detected on two
perpendicular sides or more.
Furthermore, the information for the part positioning using the lead length is not acquired
so these types cannot be used for parts with leads on one side or two opposing sides only.
Example Target Parts
Type 33: Currently no example target part exists.
Type 34: PLCC parts processed with frontlighting with a white background.
NXTVPP020E
:Entered element position
:Defined element direction
Type 33 Type 34
