6. Editing Jobs on the Machine (MEdit) QD004-18

158 NXT Programming Manual

6.4 Irregular fiducial marks (from NXT V3.90)

6.4.1 Details

When there are no Fuji standard fiducial marks (circular, rectangular, diamond, upward-

facing right triangle, downward-facing right triangle, double square, cross) on a panel, or it

is desired to use a land pattern or other mark on a panel as a fiducial mark, it is possible to

create mark data by using images of the desired marks.

To create mark data for irregular fiducial marks, it is first necessary to acquire an image of

the mark using Accessory Software. Next, start MDW (Mark Data Wizard) from MEdit and

edit the fiducial marks. The created fiducial marks will be saved in the Fuji Flexa library and

used as job data in production.

It is possible to register up to eight fiducial marks including global skip marks and local

marks.

Requirements

1. The position of the mark to be used as an irregular fiducial mark is already known (the

exact position can be obtained through CAD data or other data).

2. There must be no similar marks which appear in the same field of view as the fiducial

mark.

3. The panel stopping position must be stable.

4. Land patterns which are covered in solder cannot be used because the reflection may

change due to the condition of the solder. Due to this, they are not supported.

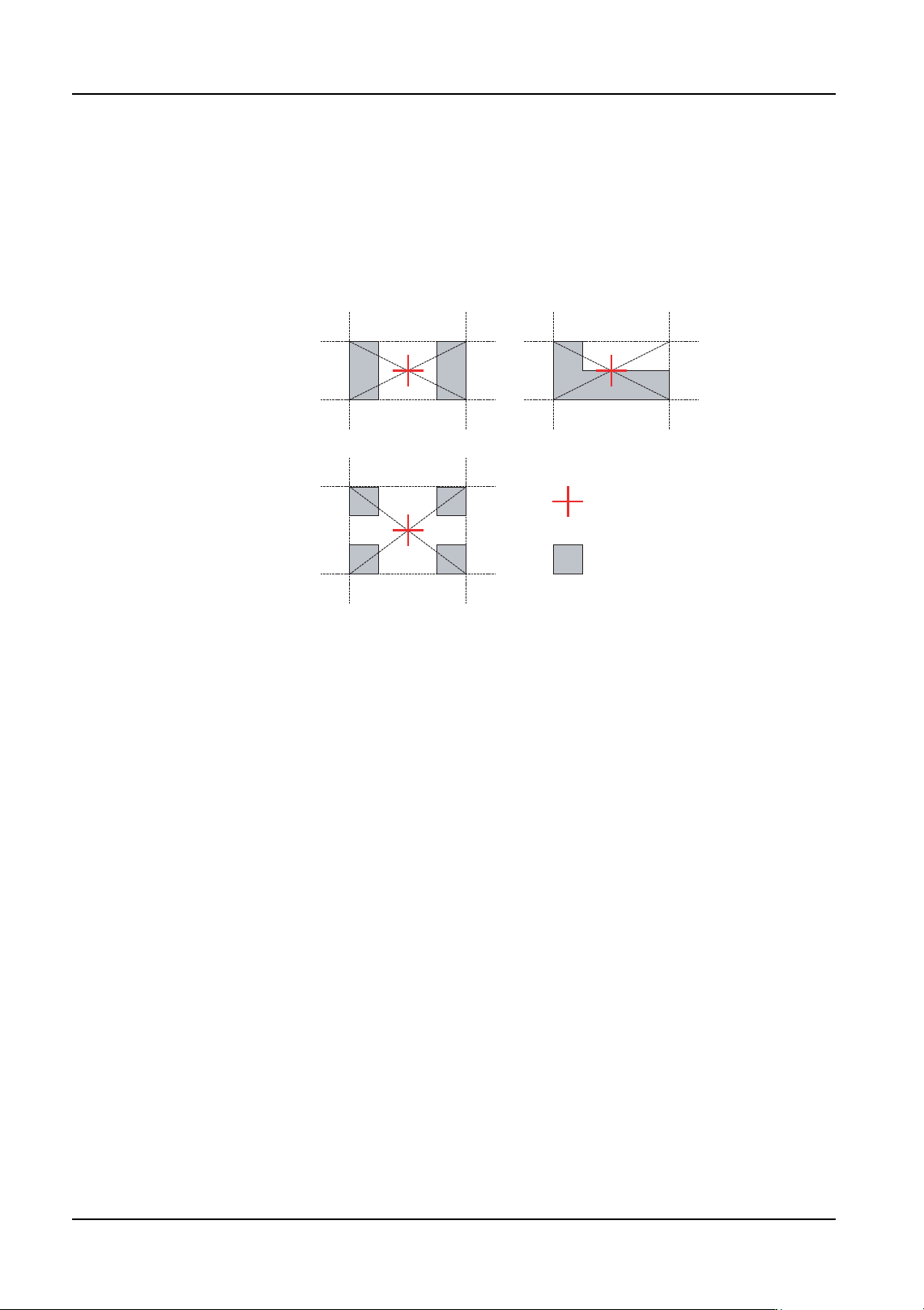

Mark center

Land pattern

01PRG-0001E

QD004-18 6. Editing Jobs on the Machine (MEdit)

NXT Programming Manual 159

6.4.2 Creating an irregular fiducial mark for a job that is not

currently being used in production

Creation flowchart

The flowchart below shows the general procedure for creating mark data.

Procedure

1. Create temporary mark data by specifying a circular fiducial mark and create the job. A

mark vision processing error will occur because this does not match the actual mark.

2. Send the job to the machine.

3. In Accessory Software, specify [OFF] for the setting for the fiducial mark recovery

function.

Note: Refer to the Accessory Software Online Manual for details regarding the use of Accessory

Software.

4. Push START to begin production.

5. A fiducial mark reading error will occur. Use Accessory Software to acquire and save

the image of the error.

6. Start MEdit and select [Open the Current Job] from the [File] menu.

Create temporary data in the job and start

production. (A mark vision processing error occurs.)

Use Accessory Software to acquire an image

of the vision processing error mark.

Open the job in MEdit and edit the mark data.

Start MDW and create mark data.

Edit the template.

Vision processing test.

Use MEdit to update the mark data and

resend the job to the machine.

01PRG-0002E

6. Editing Jobs on the Machine (MEdit) QD004-18

160 NXT Programming Manual

Note: Refer to the MEdit Online Manual for details regarding the use of MEdit.

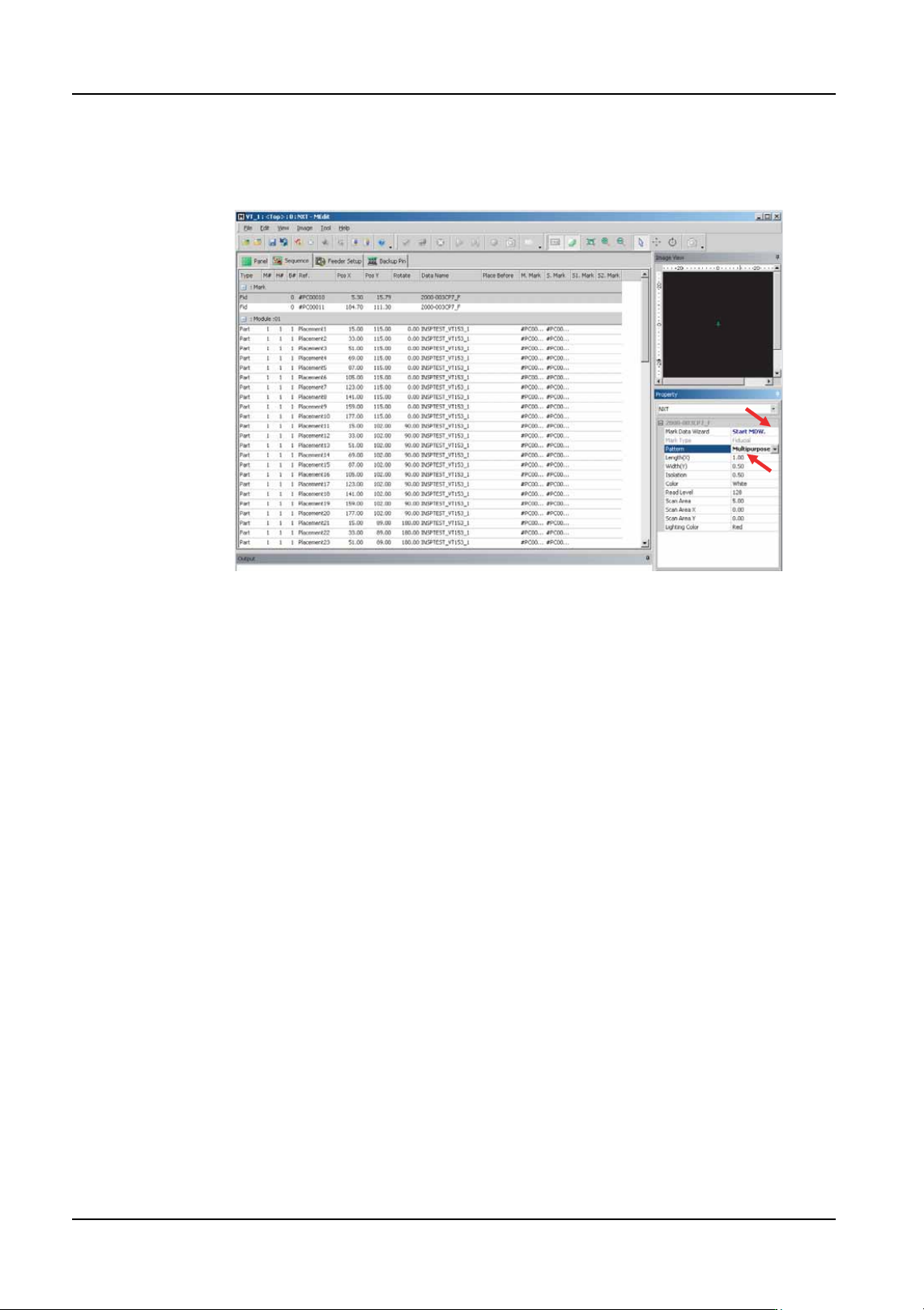

7. In MEdit, specify [Multipurpose] as the setting for the [Pattern] item in the [Property]

pane.

8. Click the button next to [Start MDW] to start MDW.

9. A dialog box to select the data to be edited is displayed. Open the acquired image of

the vision processing error and edit the template.

10.Next, a dialog box to complete the editing process is displayed. Perform a vision

processing test.

11.After the test has been successfully completed, update the mark data.

Note: Refer to the Online Manual for details regarding the use of MDW.

12.Exit MDW and return to MEdit.

13.Remove the panel from the machine and return to the main screen at the machine

operation panel.

14.Use MEdit to transmit the updated job to the machine.

01PRG-0003E
