QD004-18 3. Job Builder
NXT Programming Manual 49
Mode 1: Producing panels with many part types
Features
• When producing with several different part types that exceed 12 slots, the job is
set up to use both magazines as one.
• Production efficiency is improved by setting alternate trays at empty slots.
When setting alternate trays inside the same magazine, partially used trays do
not occur. However, when setting alternate feeders in the other magazine,
partially used trays occur frequently.
• If parts resupply is not complete while the other magazine is being used in
production, production stops.
Job settings
1. At the [Machine Configuration - Modules] tab, select the [Stage Type] for the module
where the tray unit is located. Refer to "3.3.3 Configuring an NXT machine" for details.
2. Optimize the job. (Refer to "3.6 Optimizing" for details.)
3. Select the [Feeder Setup] tab and then check the tray allocation for magazines A and B.
4. If necessary, specify alternate trays. (Refer to "3.3.5 Assigning an alternate feeder" for
details.)
5. Send the job to the machine.
Unit Listed name
Tray unit-LT TULT
Tray unit-LTC TULTC
01PRG-0126E
Tray unit-LT Tray unit-LTC
3. Job Builder QD004-18
50 NXT Programming Manual
Mode 2: Producing with minimized downtime during parts resupply
Features
• The job is set up to produce while using each magazine separately. Up to 12
slots can be used (24 when using both subslots on the tray unit-LT).
• This mode minimizes downtime by allowing a magazine to continue production
when a recovery limit is reached at the other magazine. The magazine that
reached the recovery limit is then replenished with parts.
• Partially used trays occur easily because the magazine is exchanged at each
recovery limit.
Job settings
1. At the [Machine Configuration - Modules] tab, select the [Stage Type] for the module
where the tray unit is located. Refer to "3.3.3 Configuring an NXT machine" for details.
2. Optimize the job. (Refer to "3.6 Optimizing" for details.)
Unit Listed name
Tray unit-LT TULT
Tray unit-LTC TULTC
01PRG-0126E
Tray unit-LT Tray unit-LTC
QD004-18 3. Job Builder
NXT Programming Manual 51
3. Select the [Feeder Setup] tab and then check that all the required slots are allocated to
magazine A.

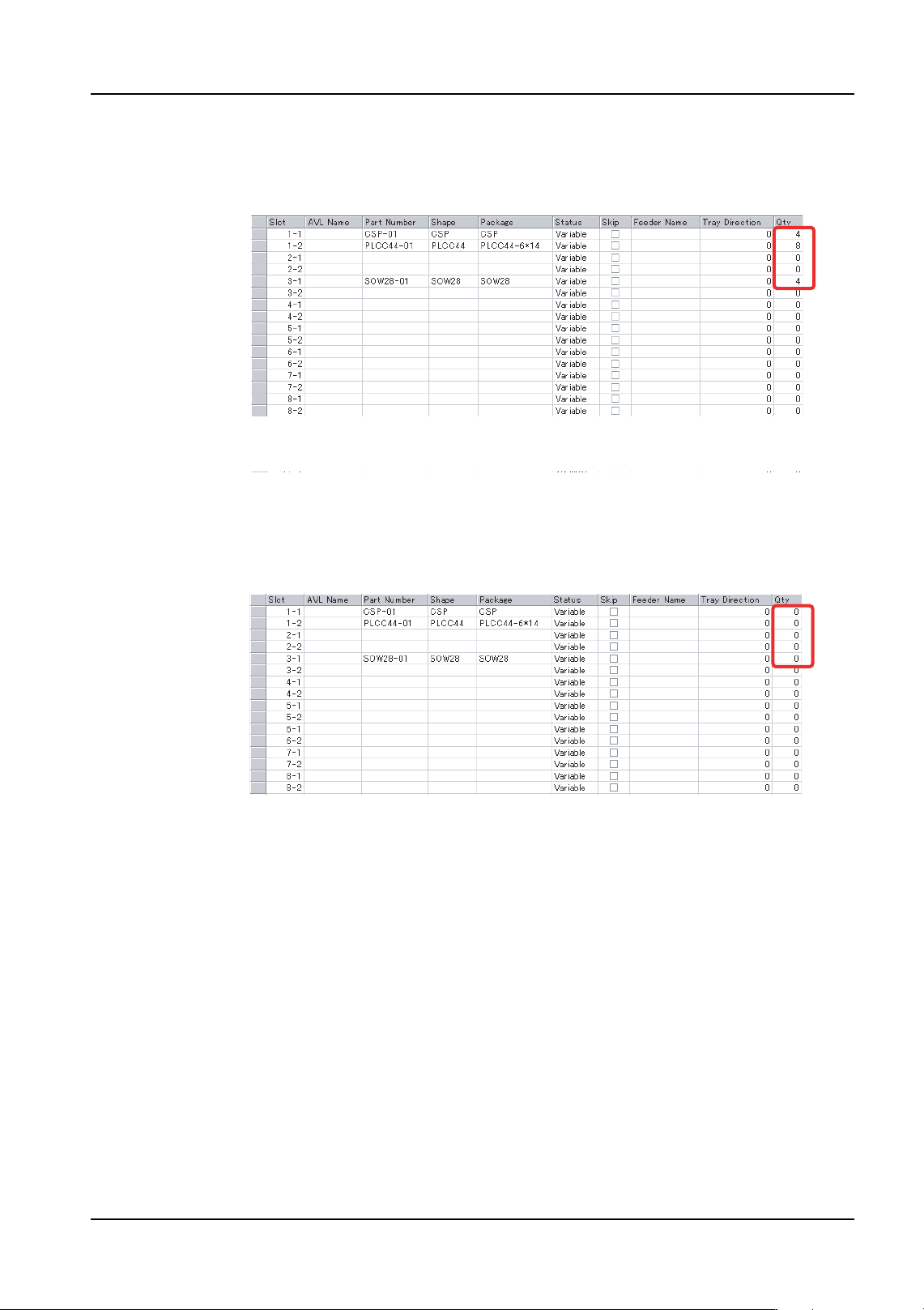

Note: The screenshot shown below is for a tray unit-LT.
4. Specify alternate trays at magazine B for all original trays in magazine A. (Refer to
"3.3.5 Assigning an alternate feeder" for details.)
Note: Alternate trays must be specified for all original slots in magazine A. Furthermore, do not
move original trays from magazine A.
5. Send the job to the machine.
01PRG-0127
01PRG-0128
