QD004-18 3. Job Builder NXT Programming Manual 49 Mode 1: Producin g panels with many part types Features • When producing with several different part types that exceed 12 slots, the job is set up to use both magazines a…
3. Job Builder QD004-18
48 NXT Programming Manual
Summary of each mode
Note: 1: The quantities shown in the brackets indicate the number of subslots on the tray unit-LT.
2:There are cases of partially used trays occurring based on alternate trays settings.
Mode Details Max. no.
of slots
TU-LT
(Note 1)
Max. no.
of slots
TU-LTC
Part
resupply
downtime
Partially
used
trays
Next
produc-
tion
prepara-
tion
Mode 1 When using several different part types
that exceed 12 slots, both magazines
are used as one in the job settings.
24(48) 24 Medium (Note 2) Not
possible
Mode 2 Each magazine is used in production
separately. When a recovery limit is
reached at one of the magazines, the
other magazine continues production.
The magazine with the recovery limit
can then be replenished with parts.
12(24) 12 Short Possible Not
possible
Mode 3 This mode optimizes the job so that tray
exchange is minimized during
changeover. Several jobs are created
in the production schedule and then
tray allocation is optimized using Multi
Job Line Balancer in Fuji Flexa.
24(48) 24 Medium to
long
Not
possible
Possible
under
certain
condi-
tions
Mode 4 One of the magazines is used for parts
resupply and the other is used for
production. When parts run out at the
production magazine, the drawer with
the empty tray is unloaded to slot 12 of
the resupply magazine. A new tray is
then moved from the resupply
magazine to a slot in the production
magazine and then production
continues.
9(18) 10 Short Not
possible
Not
possible
QD004-18 3. Job Builder
NXT Programming Manual 49
Mode 1: Producing panels with many part types
Features
• When producing with several different part types that exceed 12 slots, the job is
set up to use both magazines as one.
• Production efficiency is improved by setting alternate trays at empty slots.
When setting alternate trays inside the same magazine, partially used trays do
not occur. However, when setting alternate feeders in the other magazine,
partially used trays occur frequently.
• If parts resupply is not complete while the other magazine is being used in
production, production stops.
Job settings

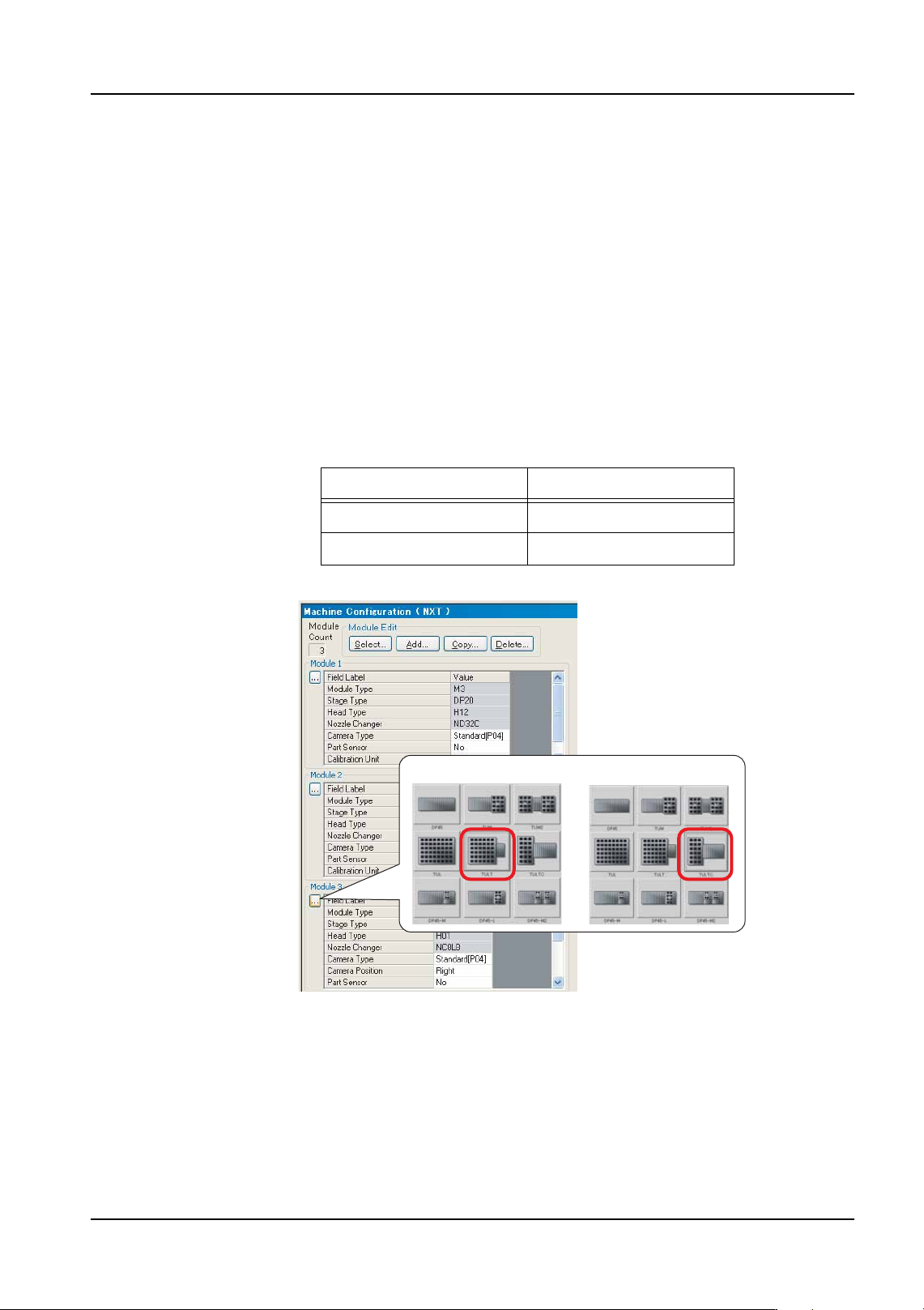

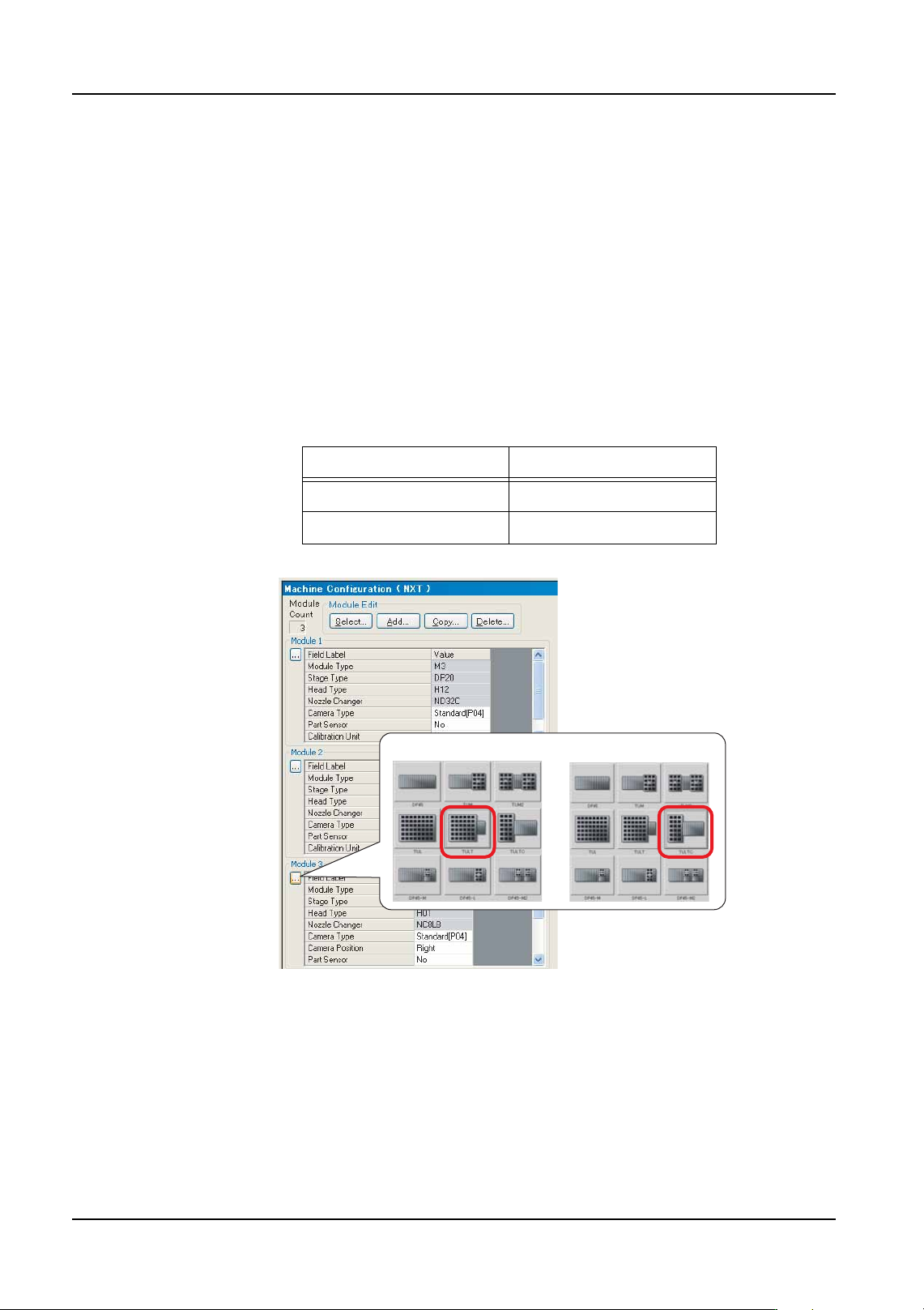

1. At the [Machine Configuration - Modules] tab, select the [Stage Type] for the module
where the tray unit is located. Refer to "3.3.3 Configuring an NXT machine" for details.
2. Optimize the job. (Refer to "3.6 Optimizing" for details.)
3. Select the [Feeder Setup] tab and then check the tray allocation for magazines A and B.
4. If necessary, specify alternate trays. (Refer to "3.3.5 Assigning an alternate feeder" for
details.)
5. Send the job to the machine.
Unit Listed name
Tray unit-LT TULT
Tray unit-LTC TULTC
01PRG-0126E
Tray unit-LT Tray unit-LTC
3. Job Builder QD004-18
50 NXT Programming Manual
Mode 2: Producing with minimized downtime during parts resupply
Features
• The job is set up to produce while using each magazine separately. Up to 12
slots can be used (24 when using both subslots on the tray unit-LT).
• This mode minimizes downtime by allowing a magazine to continue production
when a recovery limit is reached at the other magazine. The magazine that
reached the recovery limit is then replenished with parts.
• Partially used trays occur easily because the magazine is exchanged at each
recovery limit.
Job settings
1. At the [Machine Configuration - Modules] tab, select the [Stage Type] for the module
where the tray unit is located. Refer to "3.3.3 Configuring an NXT machine" for details.
2. Optimize the job. (Refer to "3.6 Optimizing" for details.)
Unit Listed name
Tray unit-LT TULT
Tray unit-LTC TULTC
01PRG-0126E
Tray unit-LT Tray unit-LTC
