QD004-18 3. Job Builder NXT Programming Manual 55 Category: Alternate feed er (Alternate tray) change condit ion setting Job settings 1. At the [Machine Configur ation - Modules] tab, select the [Stage Type ] for the mod…
3. Job Builder QD004-18
54 NXT Programming Manual
Machine configuration settings
Specify the following settings in Accessory Software.
Category: Fujitrax settings
Note: Turn verification off at the [Use Verifier] setting or the [Tray unit-L/LT/LTC verification ON/
OFF setting].
Category: Tray unit settings
Setting Value
Use Verifier OFF
Tray unit-L/LT/LTC verification ON/
OFF setting
OFF
Setting Value
Tray unit-LT/LTC resupply Select either [Parts resupply from
magazine A] or [Parts resupply from
magazine B]
01PRG-0119E
01PRG-0120E
QD004-18 3. Job Builder
NXT Programming Manual 55
Category: Alternate feeder (Alternate tray) change condition setting
Job settings
1. At the [Machine Configuration - Modules] tab, select the [Stage Type] for the module
where the tray unit is located. Refer to "3.3.3 Configuring an NXT machine" for details.
Setting Value
Alternate tray change condition Parts out
01PRG-0121E
Unit Listed name
Tray unit-LT TULT
Tray unit-LTC TULTC
01PRG-0126E
Tray unit-LT Tray unit-LTC
3. Job Builder QD004-18
56 NXT Programming Manual

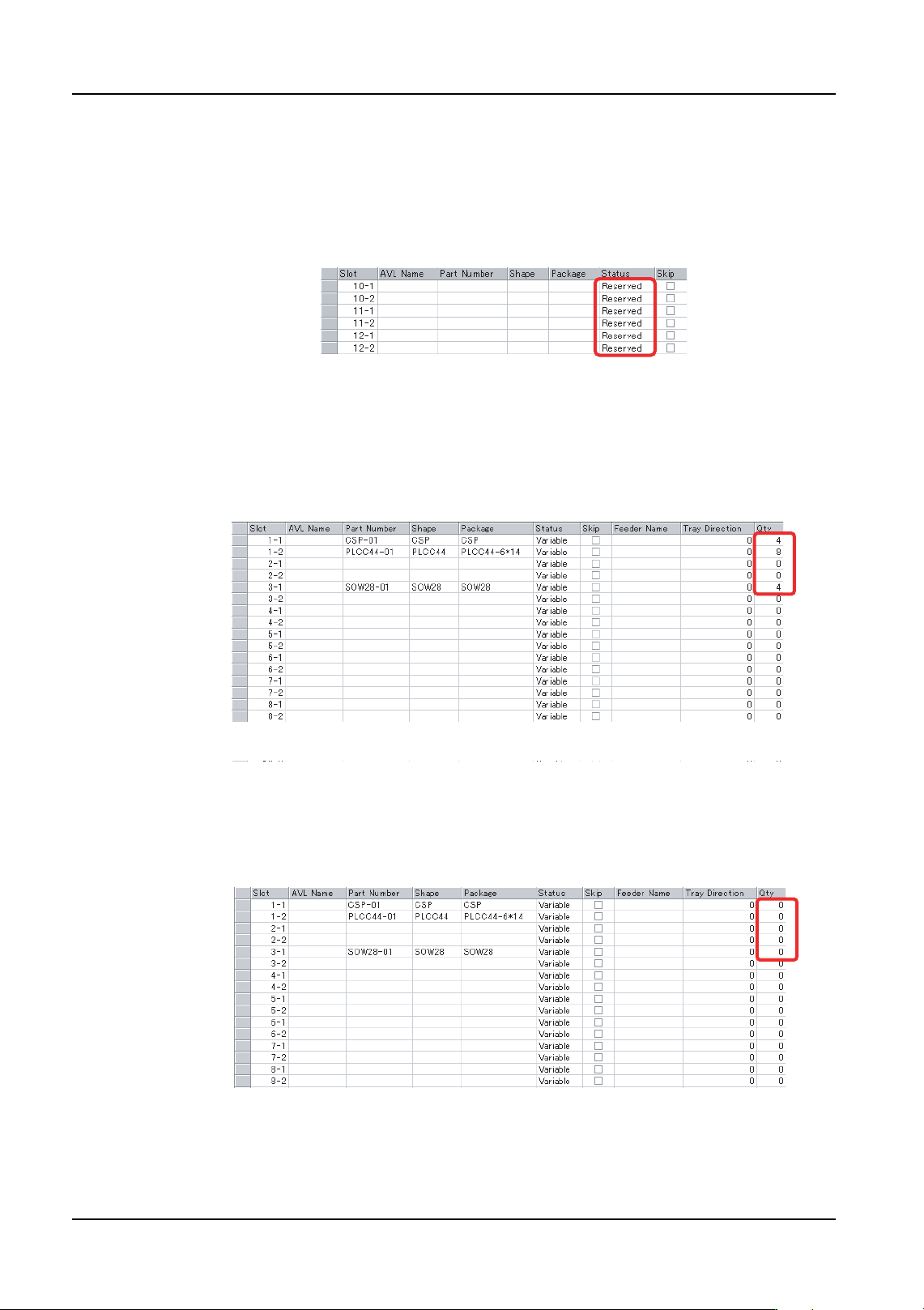

2. In the [Feeder Setup] tab for the machine configuration, reserve the following slots at
both magazine A and B.
Note: The screenshot shown below is for a tray unit-LT.
• Specify [Reserved] for slots 10-1 to 12-2 at both magazines when using a tray
unit-LT.
• Specify [Reserved] for slots 11 to 12 at both magazines when using a tray unit-
LTC.
3. Specify all original trays to the magazine to be used for production.
Note: When specifying [Parts resupply from magazine B], set all original trays at magazine A.
When specifying [Parts resupply from magazine A], set all original trays at magazine B.
4. Optimize the job. (Refer to "3.6 Optimizing" details.)
5. Specify alternate trays (for all original trays) to the magazine used for resupplying parts.
Note: Specify alternate trays at the same positions as original slots that are set at the production
magazine. Do not move original trays from the production magazine.
6. Send the job to the machine.
01PRG-0122
01PRG-0127
01PRG-0128
