4. Part Data Settings QD004-18
120 NXT Programming Manual
Vision Type 62 Resistors networks, MELFs
Enter the body size in part data. There is no need to enter element information. The
reference point for the part is the part center.
Vision Type 65 Aluminum electrolytic capacitors
Enter the body size in part data. There is no need to enter element information. Be sure
to include projections such as leads in the body size. The reference point for the part is the
part center.
Resistor networks
Glass tube diodes MELF
Direction 0 deg
90 deg
Body size X
Body size X
Body size X
Body
size
Y
Body
size
Y
Supply direction
Body
size
Y
Body size X
Body
size
Y
Aluminum electrolytic capacitor
Direction 0 deg
90 deg
Supply direction
Body size X
Body
size
Y
QD004-18 4. Part Data Settings
NXT Programming Manual 121

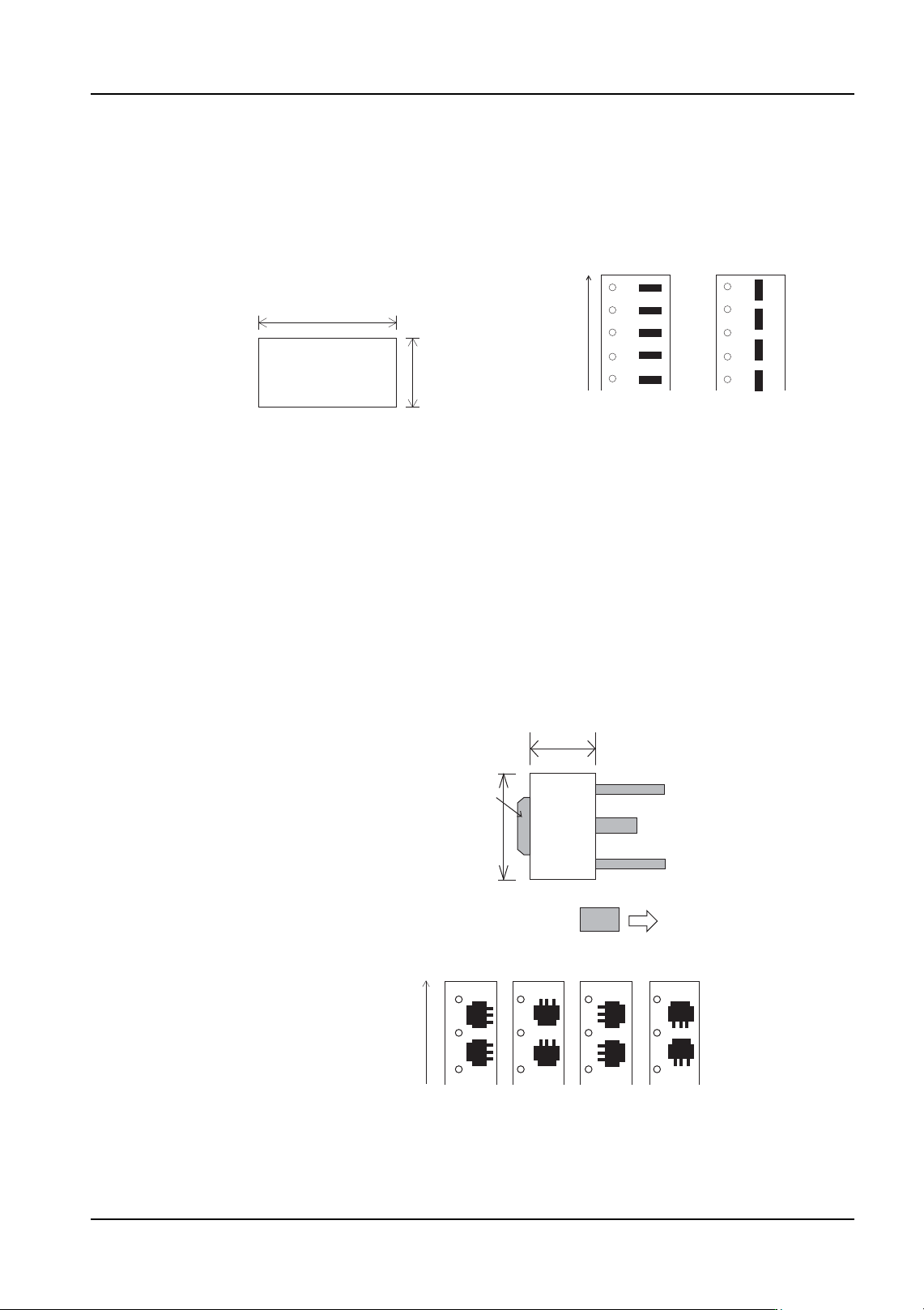

Vision Type 66 Rectangular Chips (skewed pickup check function)
Enter the body size in part data. There is no need to enter element information. The
reference point for the part is the part center. This performs a check to ensure that the part
is not picked up skewed.
Vision Type 70 (75) Power transistors
It is necessary to enter the body size and element information in part data. The reference
point is the body center with vision type 70, while the reference point is the part center with
vision type 75. Create separate element data for leads of different length and width. If the
leads have a large cuts at the corners then it is necessary to select the [Don’t inspect] option
for the [Result] group for that element.
Rectangular chip
Body size X
Direction 0 deg
90 deg
Supply direction
Body size
Y
Power transistor
Element 1
Direction 0 deg 90 deg 180 deg 270 deg
Element
Body
size
Y
Body size X
Element 2
Element 3
Supply direction
Note: Create separate
element data for leads
of different length and
width.
Element 4
4. Part Data Settings QD004-18
122 NXT Programming Manual

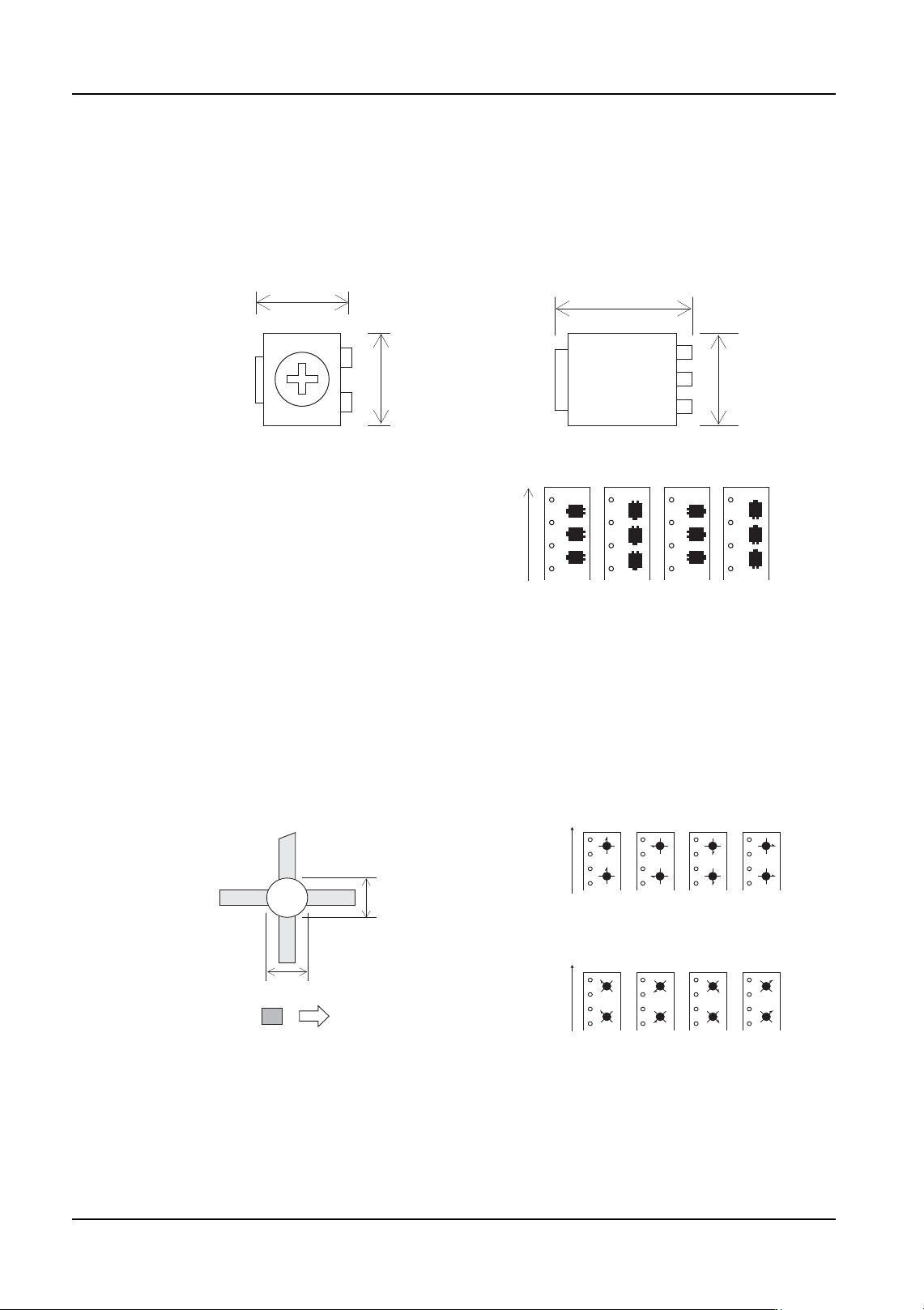

Vision Type 71 Trimmer resistors, trimmer capacitors
Enter the body size in part data. There is no need to enter element information. Note that
projections such as leads are included in the body size. The reference point for the part is
the part center.
Vision Type 72 HEMT (Supplied at 0 degrees)
Vision Type 73 HEMT (Supplied at 45 degrees)
It is necessary to enter the body size and element information in part data. The reference
point for the part is the part center. If the tip of a lead is not square by design then this
information must be set in part data so that it is not detected as a defect. Note that polarity
inspection cannot be performed.
Direction 0 deg 90 deg 180 deg 270 deg
Supply direction
Body size X
Body size X
Body
size
Y
Body
size
Y
Trimmer resistors
Trimmer capacitors
Element
Direction
0 deg
90 deg 180 deg 270 deg
Vision type: 72
Vision type: 73
Supply direction
Supply direction
Body size X
Body size Y
HEMT
Direction
0 deg
90 deg 180 deg 270 deg
