3.4.8 Specifying the tape pitch and indexing speed in the job (from
NXT V5.15)
Until now the pitch and indexing speed of tape have been set using the dip switches on the
feeder itself. However, from this version onwards these can be set in the job.
Also, for W12 and larger feeders, pitch sizes that could not be set using the dip switches on
the feeder (64, 68, and 72 mm) can now be set. (Refer to the illustration below.)
Feeder types and pitches that can be set in the job
Required items
Intelligent Feeders
• W04b/W08b/W08c (V1.10 or higher)
• Not including W04b/W08b/W08c (V3.14 or higher)
Software
• NXT application (V5.15 or higher)
• Fuji Flexa (V5.0.0 or higher)
How to specify settings
Set [Feed Pitch], [Indexing Speed] and [Assign Feeder Indexing Settings] in the job
Package Data.
1. Open the job in Fuji Flexa.
2. Select the [Package Data] tab on the job information bar in Job Builder.
3. Double click the appropriate Package Data.
4. Select the [Package Information] tab from the [Package Data] screen.
W12
W16
W24
W32
W44
W56
W72
W88
W104
W120
W136
W152
W168
W184
W200
1
W04b
W08b/W08c
W08
Feeder type
Pitch (mm)
24812 60 6864 7216 20 24 28 32 36 40 44 48 52 56 73 ~ 100
01PRG-0113E
O: Supported X: Not supported : Can be set in the job
O
O
O
X X
X
QD004-18 3. Job Builder
NXT Programming Manual 61

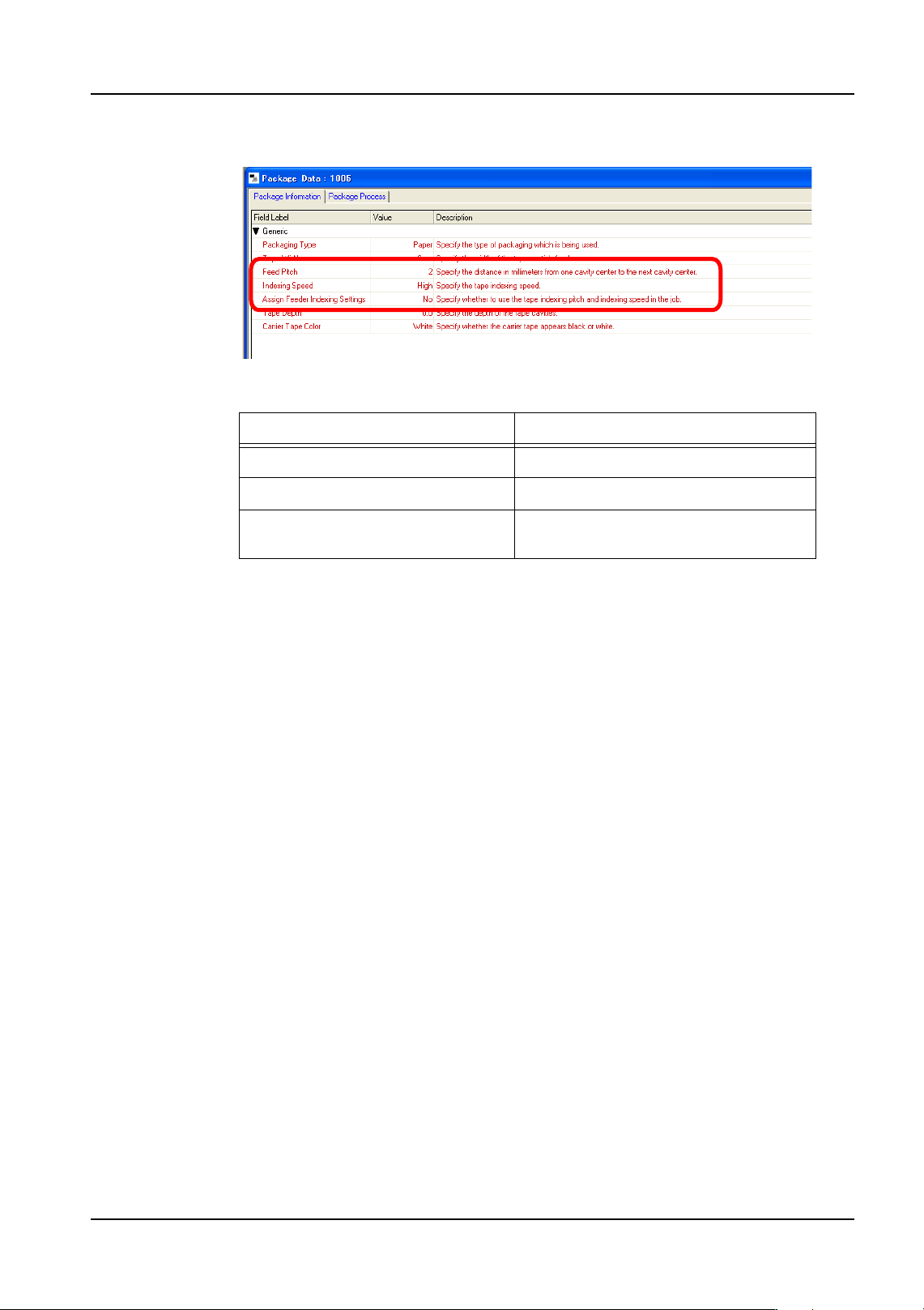

5. Set the following items.
Important points
• The dip switches on the feeder are disabled when the job is transmitted and the
settings in the job for tape pitch and indexing speed are used in production.
• The settings from the job are saved and remain even if the job is deleted. If the
feeder is removed from the pallet and then inserted again, the settings in the
feeder are cleared and the dip switches on the feeder are enabled.
• The dip switches on the feeder are enabled when the Package Data setting
[Assign Feeder Indexing Settings] is changed from [ON] to [OFF]. Use this
setting as required.
• When using AVL, tapes with different pitches or indexing speeds cannot be set.
• When splicing, tapes with different pitches or indexing speeds cannot be
connected.
• When using MEdit, the [Feed Pitch] is not used. It is only possible to set
[Indexing Speed] and the setting for using settings specified in the job [Assign
Feeder Indexing Settings].
• When performing different name dual production, do not specify different values
for [Assign Feeder Indexing Settings] for parts with the same device comment.
• With free allocation, when [Kit Line Configuration] - [Splicing Warning: ON] is
specified, set [Assign Feeder Indexing Settings] to [OFF].
• When the feeder firmware is not supported, guidance to exchange the feeder
displays. Change to a feeder that is supported.
Item Details
Feed Pitch The pitch of the tape (mm)
Indexing Speed The tape indexing speed
Assign Feeder Indexing Settings Set whether to specify the tape pitch
and indexing speed in the job (On/Off).
01PRG-0114E
3. Job Builder QD004-18
62 NXT Programming Manual
3.4.9 Adjusting placement due to panel warp function (from NXT
V5.15)
This function improves productivity by adjusting placement based on the state of warpage
of the panel. Throughput is improved by changing the speed change height of the placing
head for the previously fixed soft placement, simple pressure control, and Package-on-
Package placement.
Required items
Unit
A head supporting either soft placement, simple pressure control, or Package-on-Package
placement
Software
• NXT application (V5.15 or higher)
• Fuji Flexa (V5.0.0 or higher)
• MEdit (V5.15.0 or higher)
Soft placement Simple
pressure
control
Packgage-on-package
H01 Supported Supported Supported
H02 Supported Supported Supported
H04 Supported - -
G04 Supported Supported Supported
OF Supported - -
