3. Job Builder QD004-18 54 NXT Programming Manual Machine config uration settings Specify the following settings in Access ory Software. Category: Fuji trax settings Note: Turn verification off at the [Use Verifier] se t…
QD004-18 3. Job Builder
NXT Programming Manual 53
Mode 4: Resupplying parts from the resupply magazine during production
Features
• One of the magazines is set to be used to resupply parts. During production,
parts are resupplied using this magazine.
• The job is set up to produce while using each magazine separately. The bottom
slots (tray unit-LT: 10 to 12, tray unit-LTC: 11 to 12) are reserved slots and
remain empty.
• When parts run out at the production magazine, the drawer with the empty tray
is unloaded to slot 12 of the resupply magazine. Next, the drawer with the
alternate tray in the resupply magazine is moved to a slot in the production
magazine and then production continues.
• Parts are resupplied to the retracted magazine according to the operation panel
guidance.
• When using this mode for the tray unit-LT, the same tray parts should be
allocated to subslots 1 and 2. If different tray parts are allocated to the same
drawer and one of the tray parts runs out, the drawer will be moved to the
resupply magazine and the other tray part will still have parts remaining.
Supply method Accessory Software
setting
Parts allocation in the job
Magazine A is used for
production
Parts are supplied from
magazine B
Parts resupply from
magazine B
Magazine A: Original trays
Magazine B: Alternate trays
Magazine B is used for
production
Parts are supplied from
magazine A
Parts resupply from
magazine A
Magazine A: Alternate trays
Magazine B: Original trays
A
Tray
A
Tray
01SYS-0325E
A
Magazine A, Slot 1
Magazine B, Slot 1
Tray
A
Tray
3. Job Builder QD004-18
54 NXT Programming Manual
Machine configuration settings
Specify the following settings in Accessory Software.
Category: Fujitrax settings
Note: Turn verification off at the [Use Verifier] setting or the [Tray unit-L/LT/LTC verification ON/
OFF setting].
Category: Tray unit settings
Setting Value
Use Verifier OFF
Tray unit-L/LT/LTC verification ON/
OFF setting
OFF
Setting Value
Tray unit-LT/LTC resupply Select either [Parts resupply from
magazine A] or [Parts resupply from
magazine B]
01PRG-0119E
01PRG-0120E
QD004-18 3. Job Builder
NXT Programming Manual 55

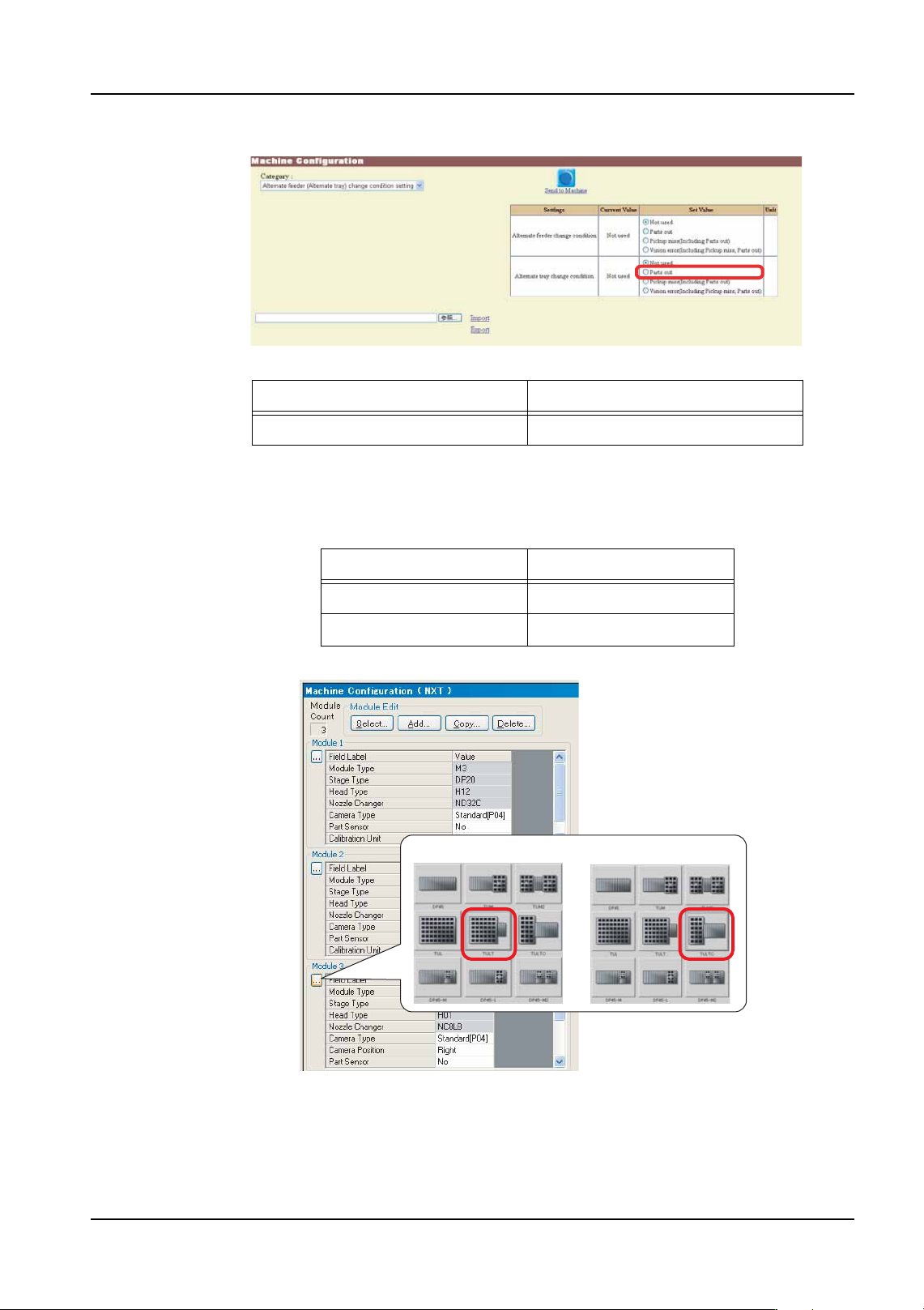

Category: Alternate feeder (Alternate tray) change condition setting
Job settings
1. At the [Machine Configuration - Modules] tab, select the [Stage Type] for the module
where the tray unit is located. Refer to "3.3.3 Configuring an NXT machine" for details.
Setting Value
Alternate tray change condition Parts out
01PRG-0121E
Unit Listed name
Tray unit-LT TULT
Tray unit-LTC TULTC
01PRG-0126E
Tray unit-LT Tray unit-LTC
