4. Part Data Settings QD004-18
118 NXT Programming Manual
Note: The vision types in parentheses use the part center.
151 (156) Black connectors placed using mechanical
chuck
152 (157) Black bodied connectors Supports multiframe
153 (158) White bodied connectors Supports multiframe
160 (165) Body detection (frontlight)
170 Mechanical chuck part existence check
180 (185) Tantulams, condensers, SOT-type parts Up to 6 leads.
Supports multiframe
181 Coil parts 2 Leads at 45 degrees
230 (235) Black bodied BGAs Supports multiframe
231 (236) White bodied BGAs Supports multiframe
233 (238) Black bodied CSPs
234 (239) White bodied CSPs
240 MPA (uses VPDplus) From NXT V3.00
Supports multiframe
241 Insertion pin inspection (uses VPDplus) Inspects part shape
and pins
Supports multiframe
242 Insertion pin inspection (uses VPDplus) Inspects part shape
and pins
Supports multiframe
243 Insertion pin inspection Inspects pins
Supports multiframe
251 Segmented parts inspection
252 White bodied parts Supports multiframe
Vision
Type
Part Types Note
QD004-18 4. Part Data Settings
NXT Programming Manual 119
Vision type number details
The following section provides an explanation of the processing method for each vision
type.
Vision Type 18 MPA (Multi-Purpose Algorithm)
Vision Type 19 MPA (Multi-Purpose Algorithm) with lead checks
Use this vision type for irregularly shaped parts for which other vision types cannot be used.
Use VPDplus to create the vision data.

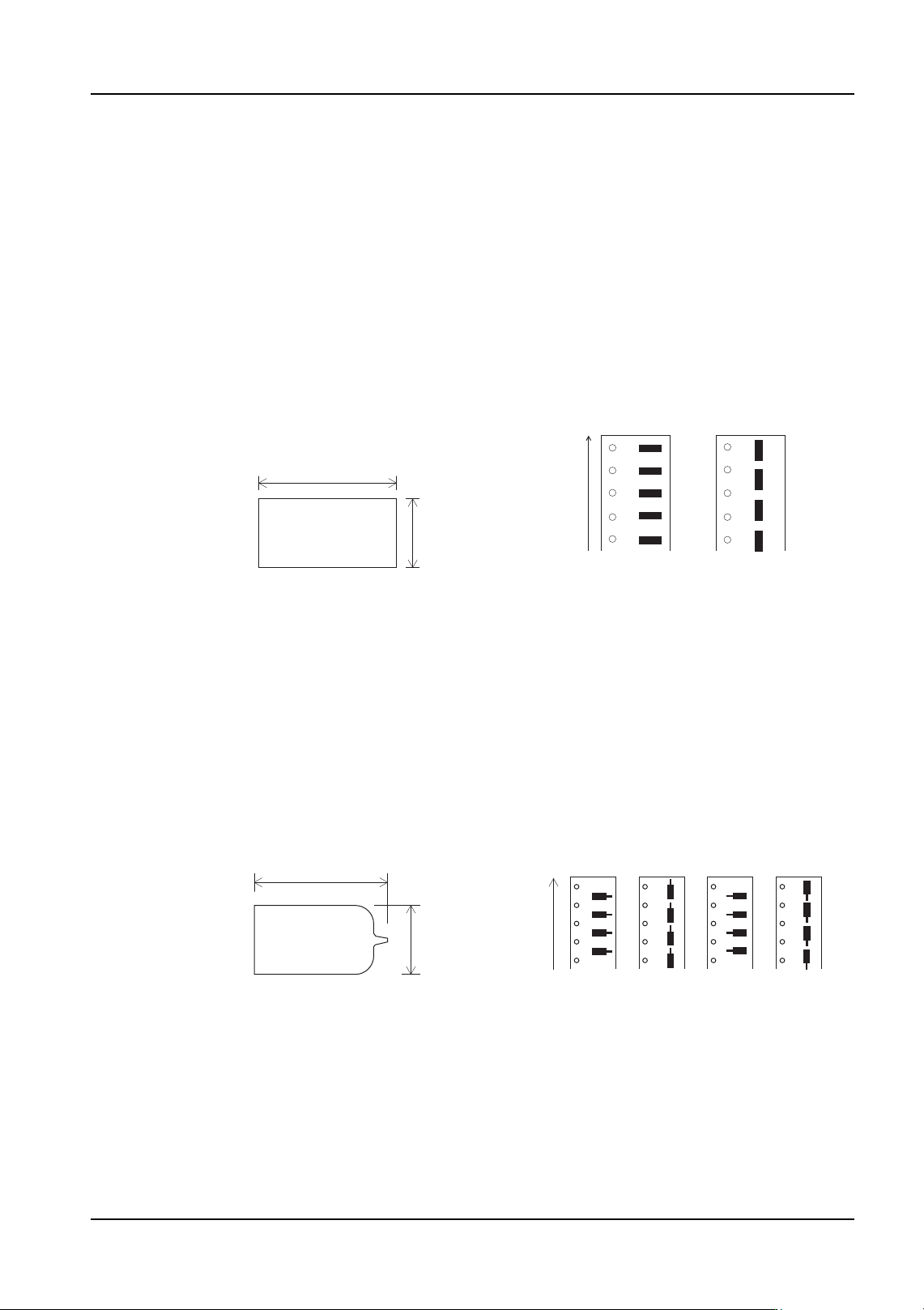

Vision Type 60 Rectangular Chips
Enter the body size in part data. There is no need to enter element information. The
reference point for the part is the part center.
Vision Type 61 Tantalum Spragues
Vision Type 63 Tantalum Spragues (polarity check performed)
Enter the body size in part data. There is no need to enter element information. The
projection of the tantalum sprague must be included in the body size. The reference point
for the part is the part center. To perform a polarity check, the supply direction must be
correctly specified in part data.
Rectangular chip
Body size X
Direction 0 deg
90 deg
Supply direction
Body size
Y
Tantalum sprague
Direction 0 deg 90 deg 180 deg 270 deg
Body size X
Body
size Y
Supply direction
4. Part Data Settings QD004-18
120 NXT Programming Manual

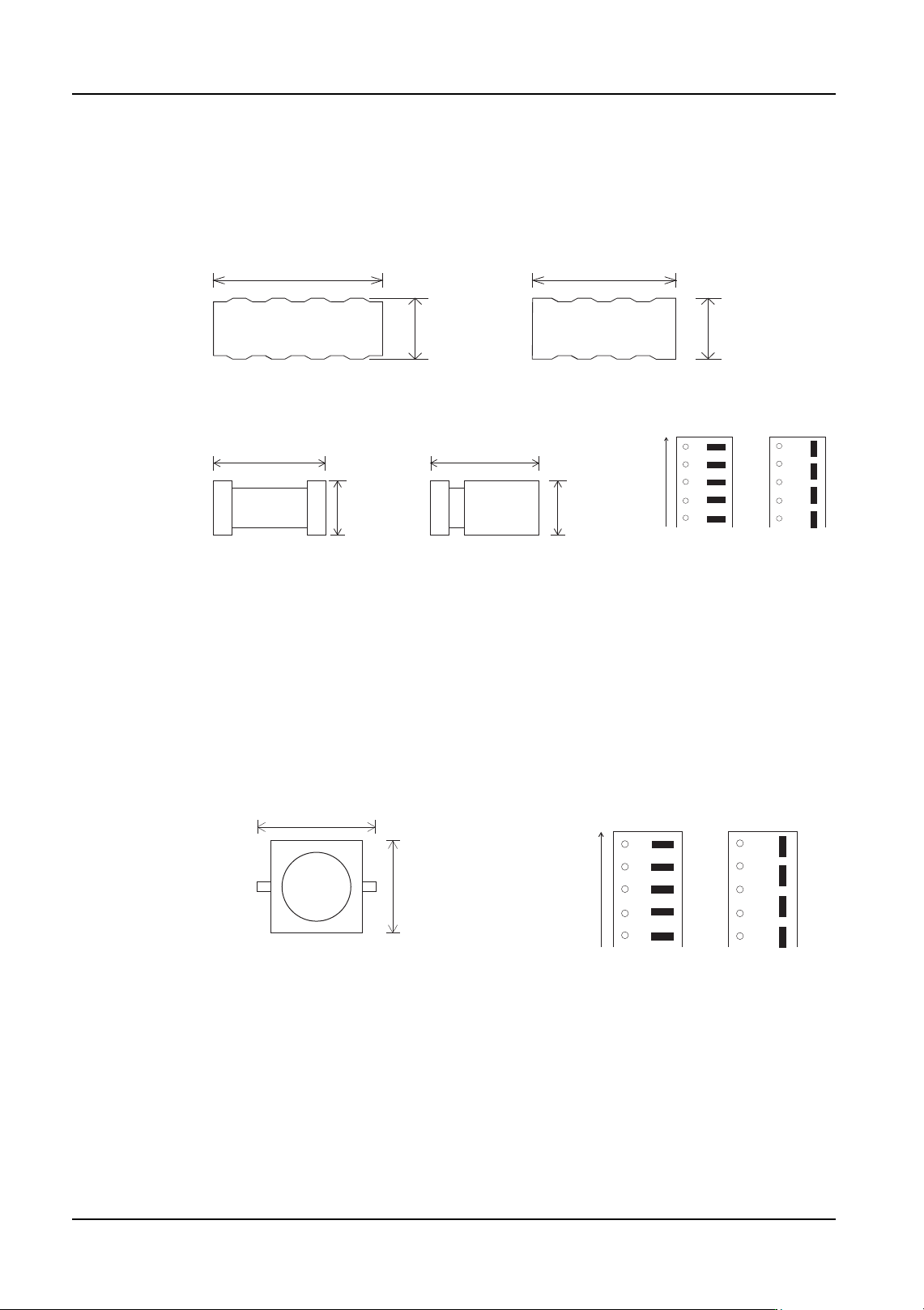

Vision Type 62 Resistors networks, MELFs
Enter the body size in part data. There is no need to enter element information. The
reference point for the part is the part center.
Vision Type 65 Aluminum electrolytic capacitors
Enter the body size in part data. There is no need to enter element information. Be sure
to include projections such as leads in the body size. The reference point for the part is the
part center.
Resistor networks
Glass tube diodes MELF
Direction 0 deg
90 deg
Body size X
Body size X
Body size X
Body
size
Y
Body
size
Y
Supply direction
Body
size
Y
Body size X
Body
size
Y
Aluminum electrolytic capacitor
Direction 0 deg
90 deg
Supply direction
Body size X
Body
size
Y
