FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 1 Initial Adjustment Page 1 of 8
Chapter 1 – Initial adjustment
1.1 Leveling
1. Measuring equipment: track level (0.02/1000mm)
2. Before leveling carry out the following procedure:
3. On new machines remove the red bracket that secures the X and Y axes during transit.
4. Remove the IN and OUT side conveyor covers.
5. Remove the mesh-cover that surrounds the MTU empty tray eject area at the rear of the
machine.
6. Check that the accessory parts are present. On a standard machine there should be:
4 back-up pins (Solid type)
1 Coupler for the air supply
1 Waste tape box
1 Lock
1 MFU
7. Remove the waste tape duct.
8. Check that the cooling fan is not blocked.
Machine Leveling

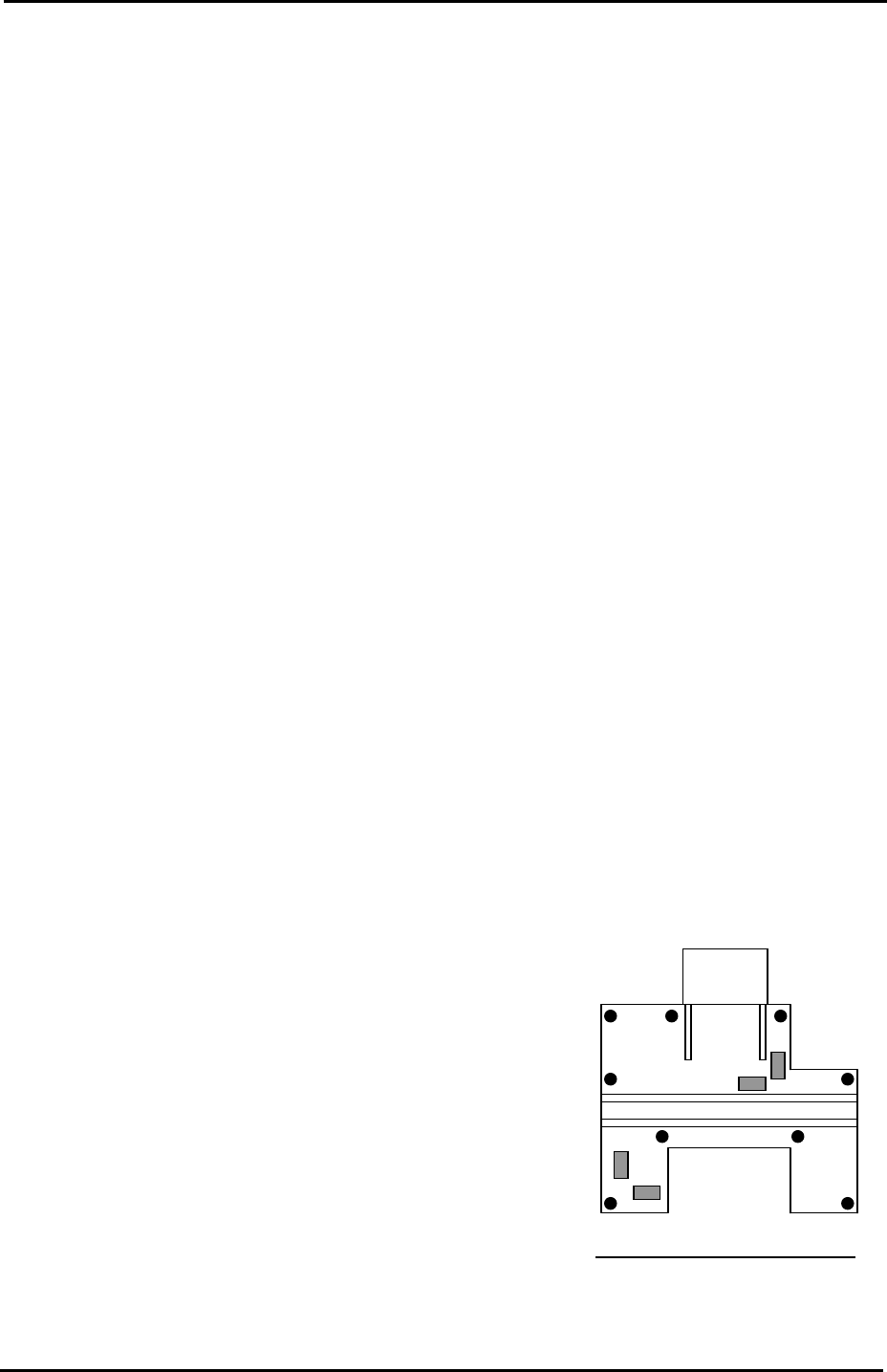

1. Set two track levels on the machine at (position
A) and carry out initial leveling using leveling
bolts 1 to 4 shown in the diagram.
2
4 3
1
B
A
2. After initial leveling is complete, set the track levels at
(position B) and confirm the machine is level. The track
levels should indicate that the machine is level at both
points A and B. If it proves impossible to level within
tolerance please contact FUJI.
3. After completing initial leveling, place leveling sheets at
the remaining points and lock the nuts for all of the
leveling bolts.
Tolerance 0.10mm/1000mm
