FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 6 Proper Data Measurements Page 12 of 30
Prism Position
1. Once the camera center has been adjusted the image on the display should be
similar to the one below:
2. At this position record the Y-axis servo counter and then select [Maintenance] –
[Proper Data Editor] – [Prizm Position] – [PrismFront/Prism Back] and manually
input the Y counter value.
Fuji Machine Mfg. Co., Ltd. Okazaki.
SMT Equipment Quality Assurance Dept.
6 – 12 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 6 Proper Data Measurements Page 13 of 30
6.7 Parts Camera Brightness
1. Put a 15mm or 20mm nozzle on the placing head.
2. Put the colour sample on the nozzle with the grey surface facing downwards and
move it to the prism position.
3. Bring the Z-axis to the vision processing height: Z0 + 27.5 + 0.5mm (0.5mm is
equivalent to the thickness of the colour sample).
4. Locate the strobe light power source in the side1 electrical box.
Strobe light
power source
5. Use a minus driver to turn the “INTENS” volume screw fully clockwise
Volume Adjustment
Fuji Machine Mfg. Co., Ltd. Okazaki.
SMT Equipment Quality Assurance Dept.
6 – 13 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 6 Proper Data Measurements Page 14 of 30

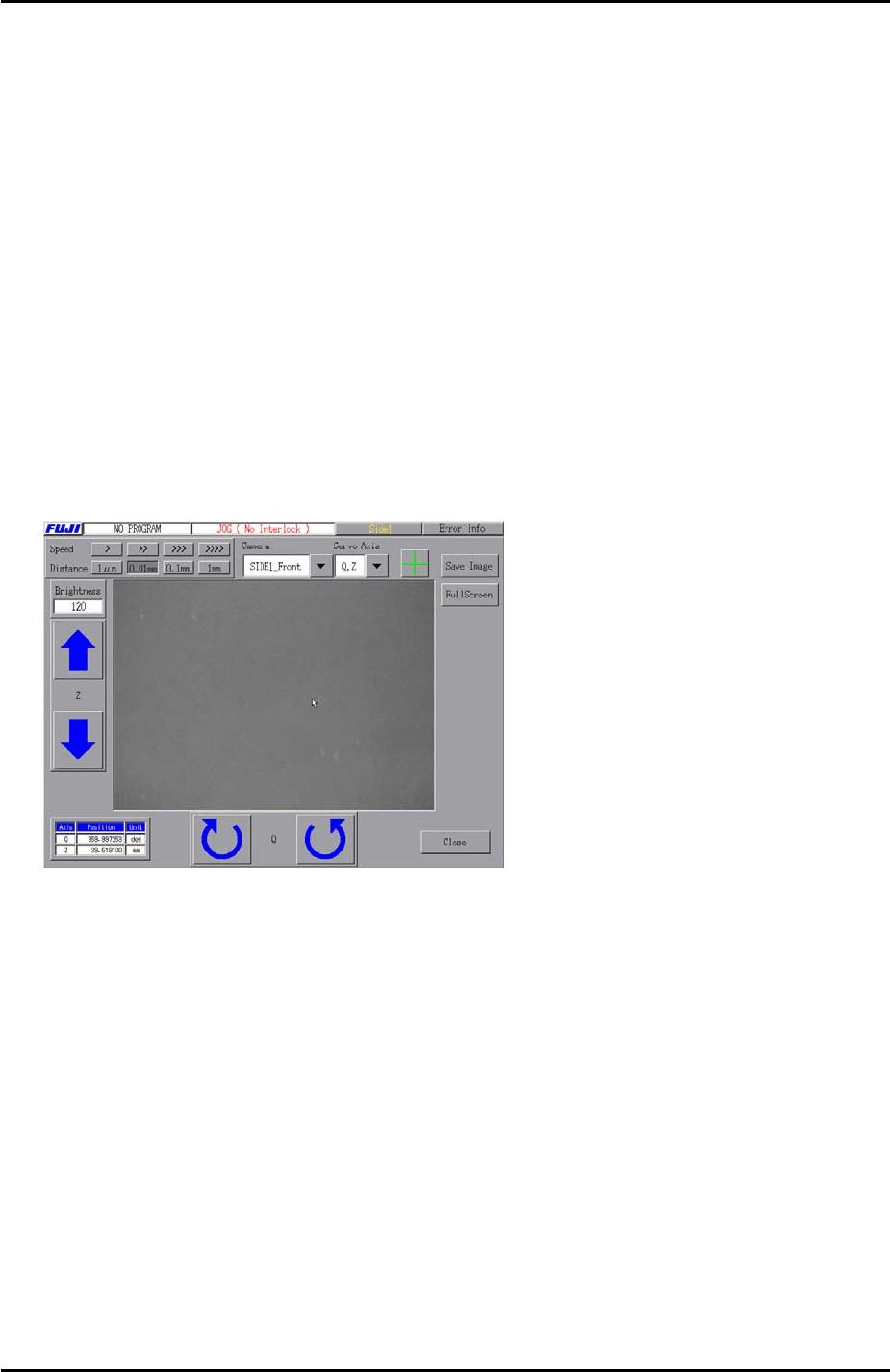

6. Select [Maintenance A] – [Jog] – and select [SIDE1_Front] from the camera drop
down list.
7. Touch the image of the color sample on the display to get a brightness reading.
Record this value.
8. Now turn the “INTENS” volume screw fully anti-clockwise and touch the image of
the color sample on the display to get a second brightness reading. Record this
value.
9. Add together the values recorded at steps 6 and 7, then divide the total by 2 to get
the average.
10. Adjust the “INTENS” volume screw and touch the image on the screen until the
brightness reading is at the average calculated in step 8. The intensity of the
strobe light power source is now exactly half way between its maximum and
minimum.
11. Finally adjust the brightness gain on the top of the parts camera so that the
brightness reading is 120.
