FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 6 Proper Data Measurements Page 1 of 30
Chapter 6 – Proper Data Measurements
6.1 Mark Camera Adjustment
Mark camera setting (XC-55)
1. Set the mark camera settings and aperture as follows:
A
F M
SIGNAL
GAIN
1N
1I
VIDEO OUT/DC IN/SYNC
Signal 1N
Gain M
Note: ensure the lens unit is fastened to the camera unit with adhesive (Loctite 425).
Note: When attaching the camera unit to the installation bracket, tighten the bolts with
0.38N.m to 0.57N.m force, and apply adhesive (Loctite222) to the bolts.
Camera focus
Jig: Plate jig (AJPJ-0062).
Jig: Color sample for brightness adjustment (Z9531DEPJ1111).
1. Clamp the plate jig in the main table.
2. Temporarily remove the lighting unit.
3. Remove the mark camera lens cover.
4. Reattach the lighting unit making sure it is pushed right up against the lip of the
camera installation bracket.
Plate jig
Greater than 61mm
When attaching the
lighting unit, push it
against the camera
installation BKT.

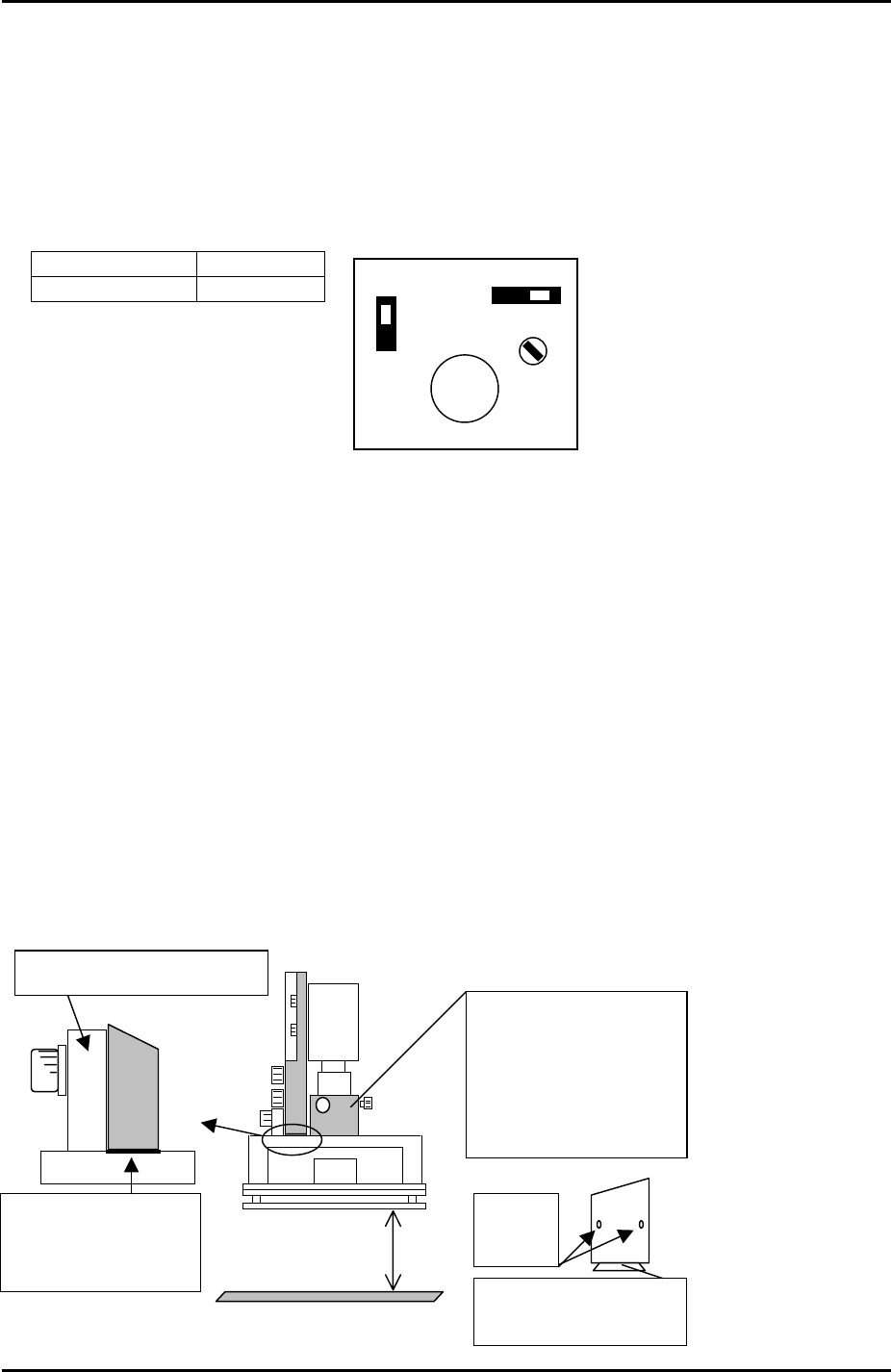

Focus adjustment, first,
remove the lens cover.
A
fter the focus is adjusted
re-attach the lens cover.
Gap between lens cover
and light source should be
0.5mm
Hollow bolt
to lock the
lens
A
djust the focus by
rotating the tip of the lens.
A
: Camera installation BKT
Fuji Machine Mfg. Co., Ltd. Okazaki.
SMT Equipment Quality Assurance Dept.
6 – 1 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 6 Proper Data Measurements Page 2 of 30
5. Set the height of the camera so that the clearance between the bottom of the
lighting unit and the plate jig is greater than 61 mm (61.5mm is ideal). This is to
ensure that there is sufficient clearance between the lighting unit and the nozzle
change platform.
6. Select [Maintenance A] – [JOG] and [Fiducial]. The light comes ON for the mark
camera, and the live image is displayed on the monitor.
7. Adjust the focus ring on the mark camera so that the markings on the plate jig come
into clear, sharp focus.
8. Apply adhesive (Loctite 425) to the hollow bolts and lock the lens.
9. Remove the light source unit.
10. Install the lens cover.
11. Replace the light source unit right up against the lip of the camera installation
bracket.
12. Set the position of the lens cover so that there is 0.5mm clearance between the
bottom of the lens cover and the top of the light source unit:
0.5mm
Camera Brightness Measurement
1. The lighting unit contains two different light sources. One (light source A) is the ring
of diodes at the bottom of the unit. The other (light source B) is the rectangular light
emitter found above the ring of diodes.
2. Place the color sample on the mark camera jig plate and bring the mark camera
above the disc.

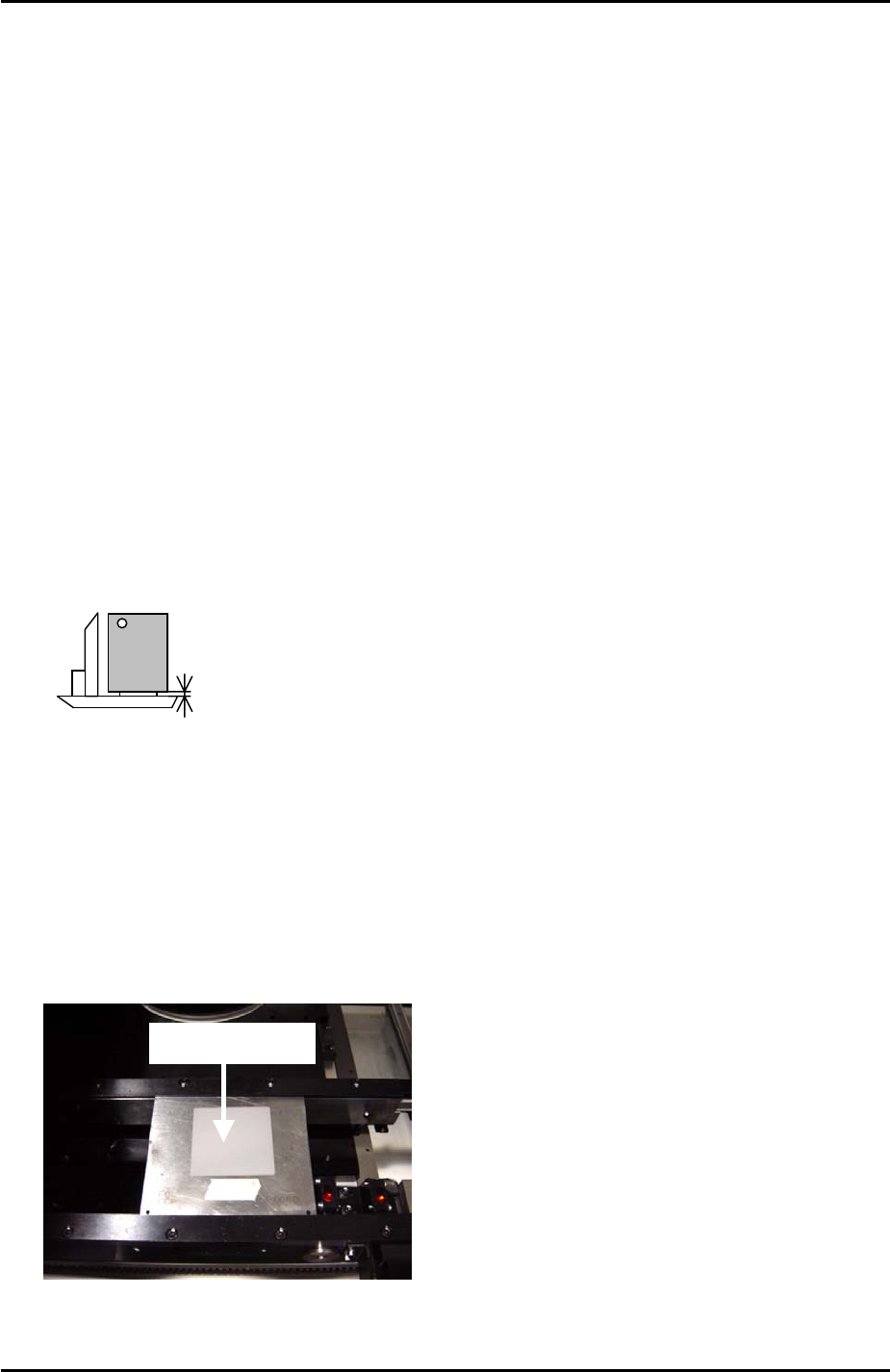

Color Sample
3. Select [Maintenance A] – [Jog] – [Fiducial].
Fuji Machine Mfg. Co., Ltd. Okazaki.
SMT Equipment Quality Assurance Dept.
6 – 2 CS Section
