FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP142E – Chapter 6 Proper Data Measurements Page 7 of 30

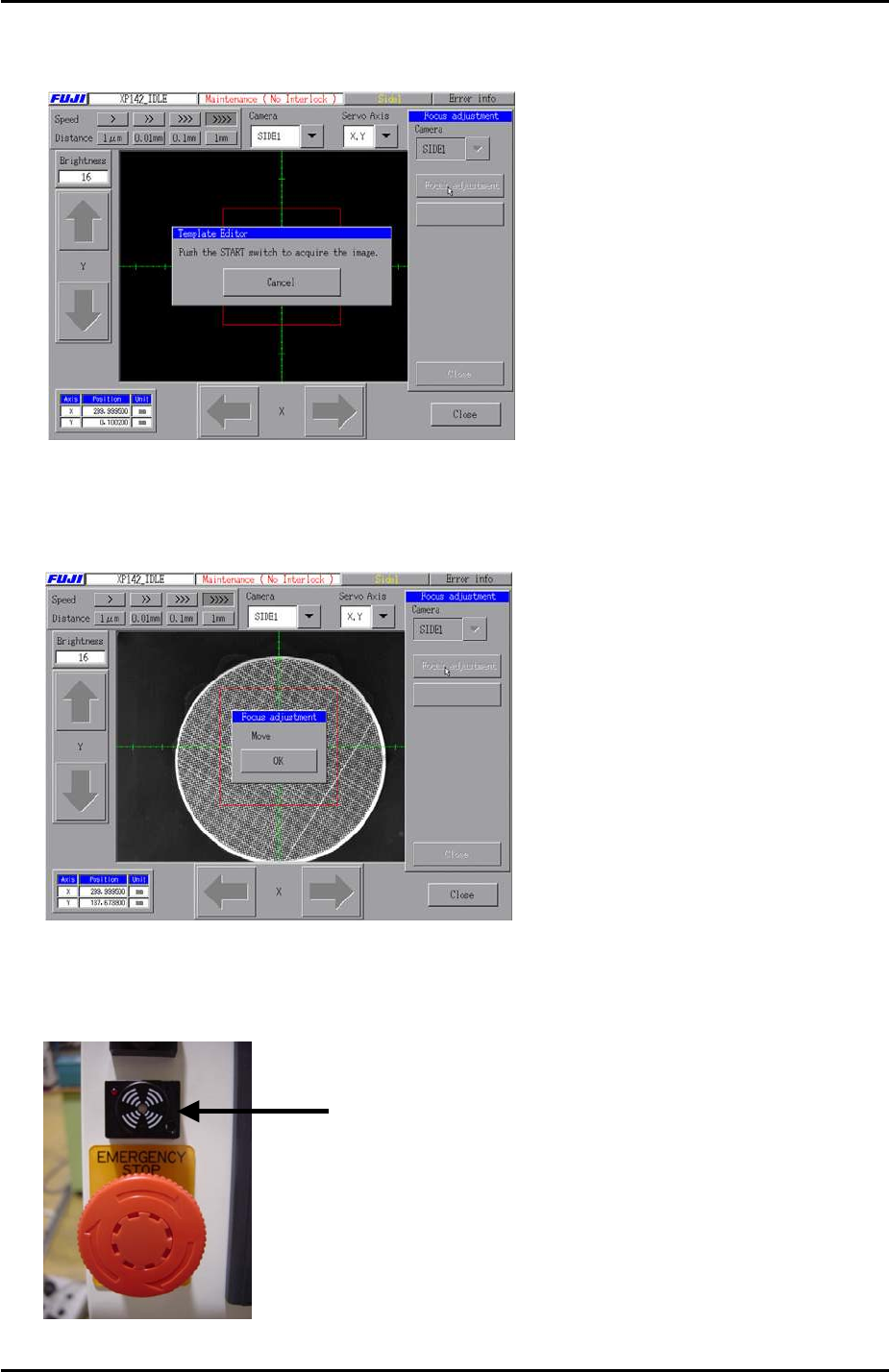

5. Choose [SIDE1] from the “Camera’ drop down list and press [Focus Adjustment]. The
following message appears:
6. Press and hold down the [START] button until the buzzer sounds and the red light
flashes. The following message appears:
7. Press [OK] and adjust the focus of the parts camera. When the focus is within range the
buzzer sounds and the red light flashes:
Buzzer
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
6 – 7 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP142E – Chapter 6 Proper Data Measurements Page 8 of 30

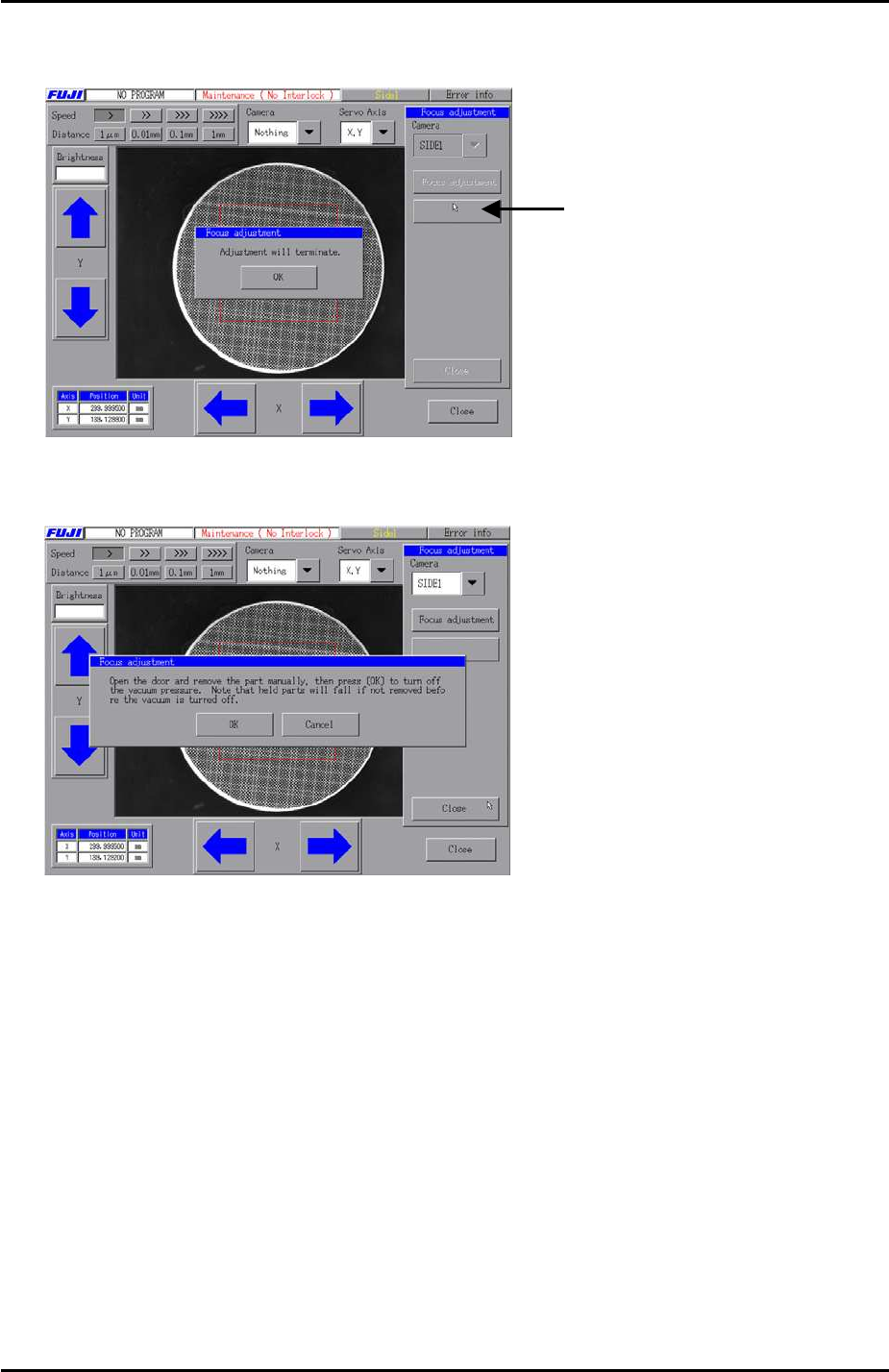

8. Once the focus has been set within range press the following tab to terminate the
adjustment:
9. Press [OK] and then [Close]. The following message appears:
Press here to terminate
the adjustment
10. Remove the focus jig by hand and then press [OK].
11. Repeat the procedure for side 2 to confirm the focus is also within range at side 2.
12. Finally lock the focus ring hollow bolt with loctite 425.
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
6 – 8 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP142E – Chapter 6 Proper Data Measurements Page 9 of 30

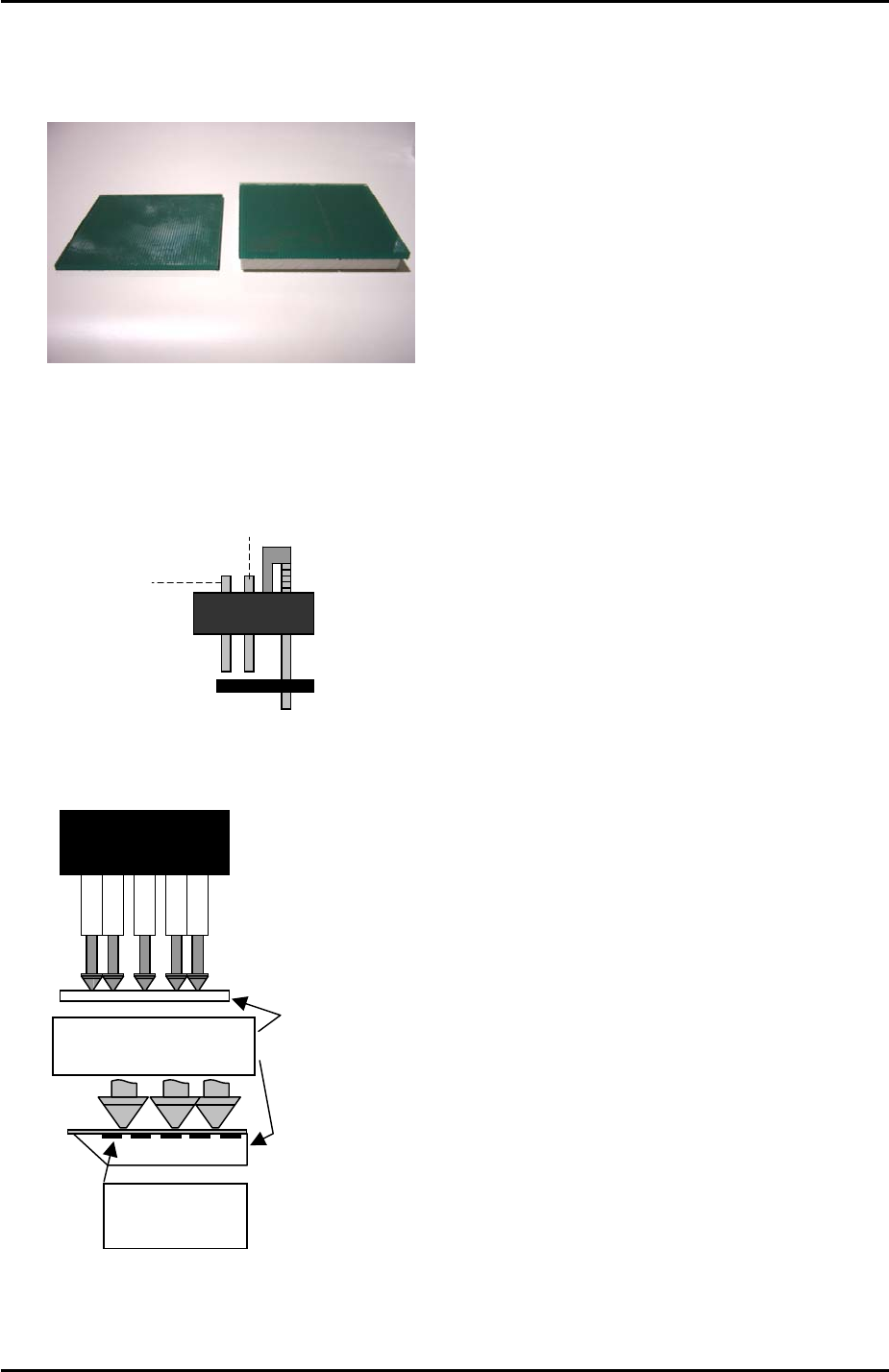

6.6 Parts Camera Resolution Measurement (Standard)
1. Equipment: resolution measurement jigs (Z3502DEAJ0020).
Low Parts
Standard
2. Insert 1.8mm nozzles in all of the nozzle pistons.
3. In [Maintenance Mode] select [Maintenance] – [I/O Check] – [Y016 VacuumPump] – [ON]
and lower all the vacuum pins on the revolver.
Air blow pin
Vacuum pin
4. Put the standard resolution measurement jig on the revolver with the printed surface
uppermost:
Resolution measurement
glass gauge.
Printed surface
uppermost
5. Select the [SIDE1] camera and inch the Y-axis to the [PrismFront] position.
