FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP142E – Chapter 5 Peripheral Adjustments Page 8 of 14

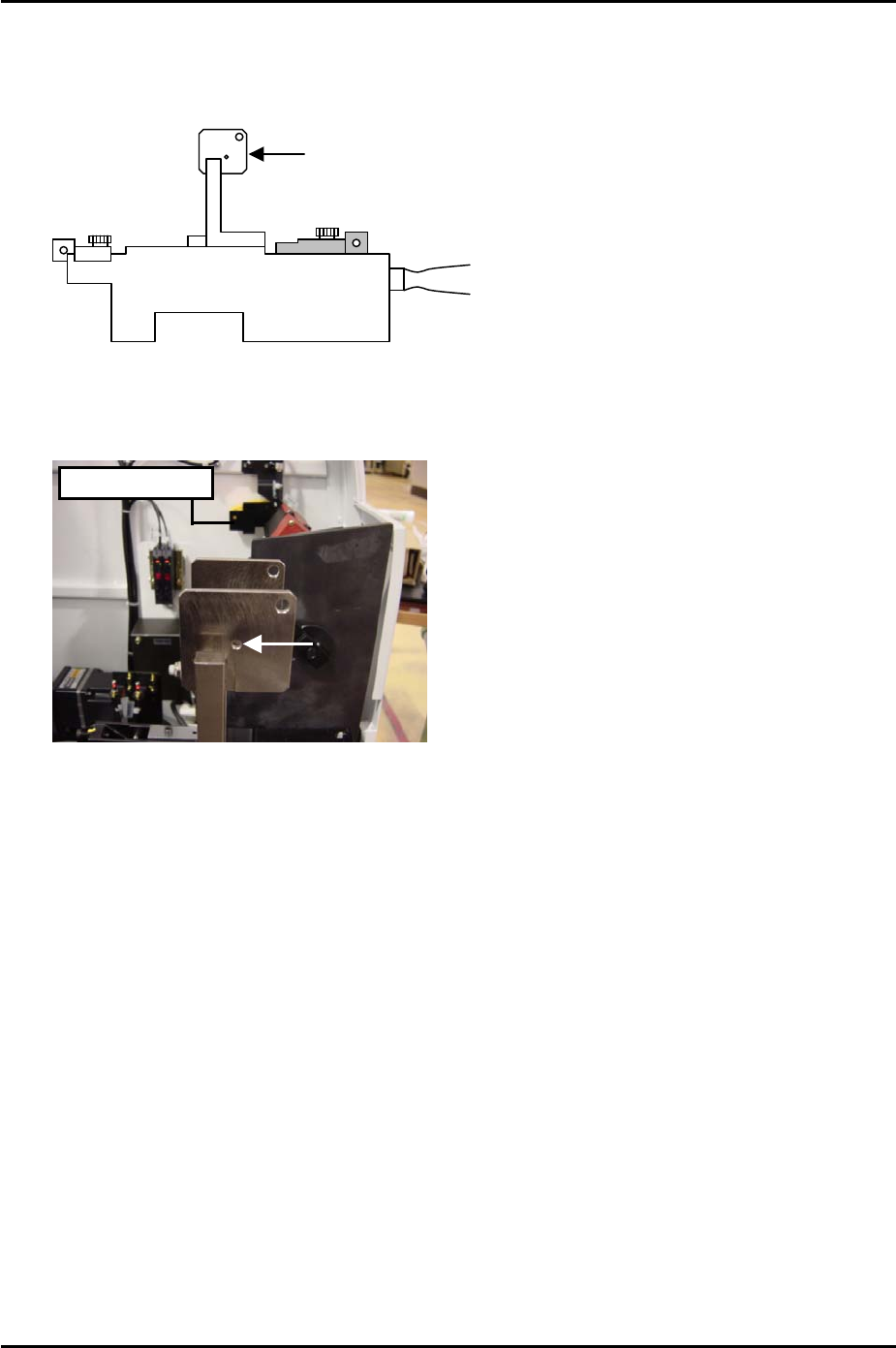

5.4 MFU Interlock Sensors
1. Clamp the MFU and set two sensor adjustment jigs (Z9631ADEPJ8070) at slots D47
and D49 at side 1.
Attachment Plate
Z9631ADEPJ8070
Fuji Machine Mfg. Co., Ltd. Okazaki
2. Adjust the position of the interlock sensors so that the light beam goes through the holes
in the attachment plates.
Hole
Interlock Sensor
SMT Equipment Quality Assurance Dept.
5 – 8 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP142E – Chapter 5 Peripheral Adjustments Page 9 of 14

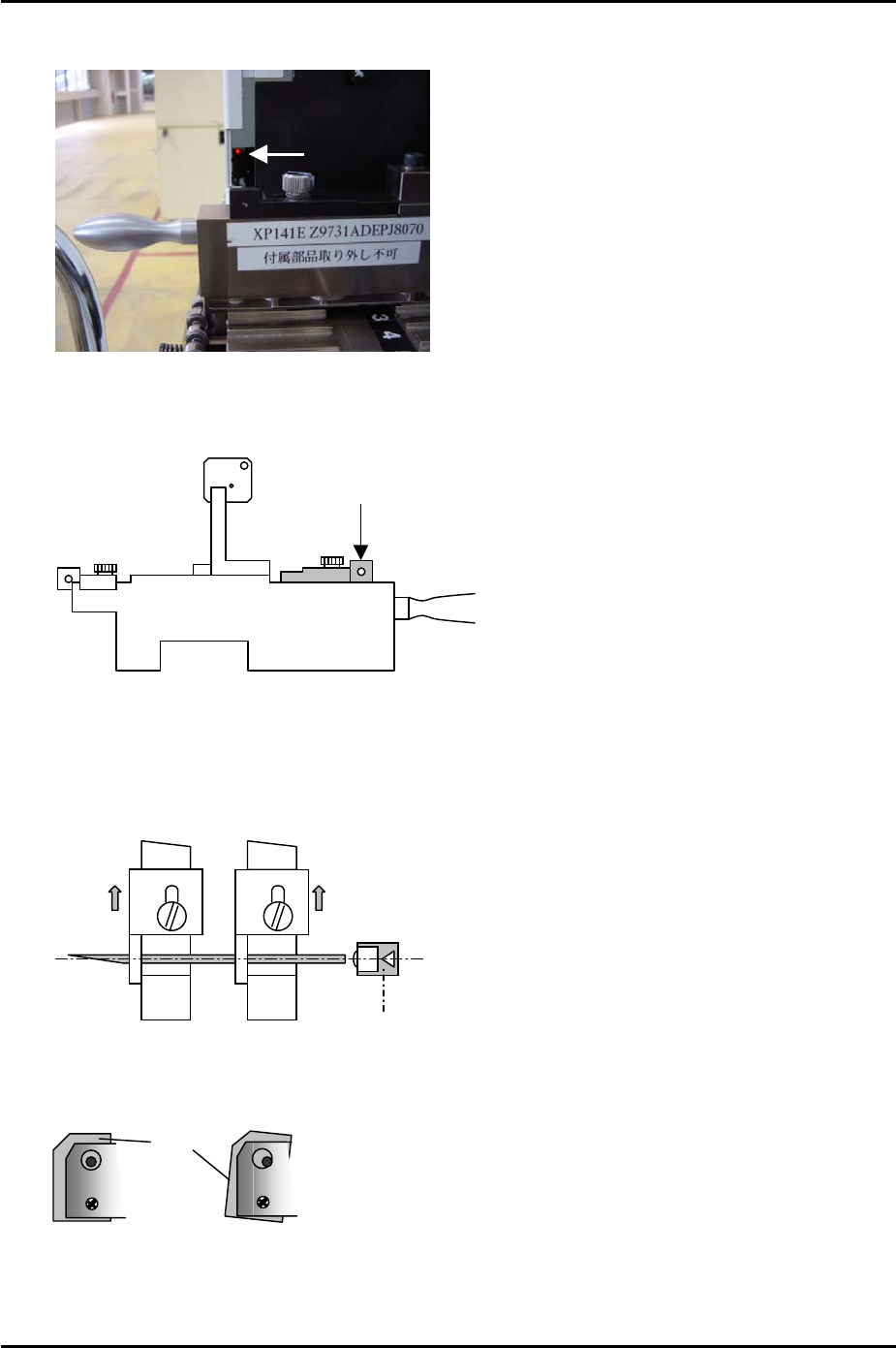

5.5 Feeder Set Check Sensors
Feeder
Set Chec
k
Sensor
1. Clamp the MFU and set two sensor adjustment jigs (Z9631ADEPJ8070) at slots D47
and D49 at side 1.
Rear Sliding
A
ttachment
Z9631ADEPJ8070
2. Fix the rear sliding attachments at their forward limit (in the direction towards the
machine interior) and insert a 1.8mm diameter wire jig between the holes in the
attachments. Adjust the feeder set check sensor position so that the point where the
sensor beam is emitted is aligned with the center of the wire jig.
D47
D49
Feeder set check sensor
3. Check the tilt of both sensors.
BKT
Sensor
BKT
4. Use I/O [X017] Side1XYAxisInter to monitor the signal.
5. Repeat for side 2 using I/O [X01A] Side2XYAxisInter to monitor the signal.
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
5 – 9 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP142E – Chapter 5 Peripheral Adjustments Page 10 of 14
5.6 MFU Cylinder Sensors
1. Note that there are two sensors on each clamping cylinder, making a total of four sensors
on side 1, and four sensors on side 2.
2. The clamp check sensors (X02E side1MfuUpChk) should be adjusted so that they are
ON 0.3mm from the clamp upper limit, and OFF 0.8mm from the clamp upper limit. In
order to adjust them, please follow the procedure below:
3. Place 0.3mm spacers in the four corners of the MFU clamping surface as illustrated
below:
Spacer
Spacer
Spacer
Spacer
4. Clamp the MFU.
5. Slide the clamp check sensors DOWN until they go OFF then slide them back UP until
they just come ON then tighten the screw (X02E side1MfuUpChk).
6. Unclamp the MFU and replace the 0.3mm spacers with 0.8mm spacers.
7. Clamp the MFU and confirm that the clamp check sensors (X02E side1MfuUpChk) are
OFF.
8. Unclamp the MFU and slide the unclamp check sensors UP until they go OFF and then
slide them back DOWN until they come ON. From the position they first come ON slide
them a further 1mm DOWN and tighten the screw. (X02F side1MfuDownChk).
9. Repeat the procedure for side 2 (X03E side2MfuUpChk) and (X03F side2MfuDownChk).
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
5 – 10 CS Section
