FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP142E – Chapter 6 Proper Data Measurements Page 5 of 30

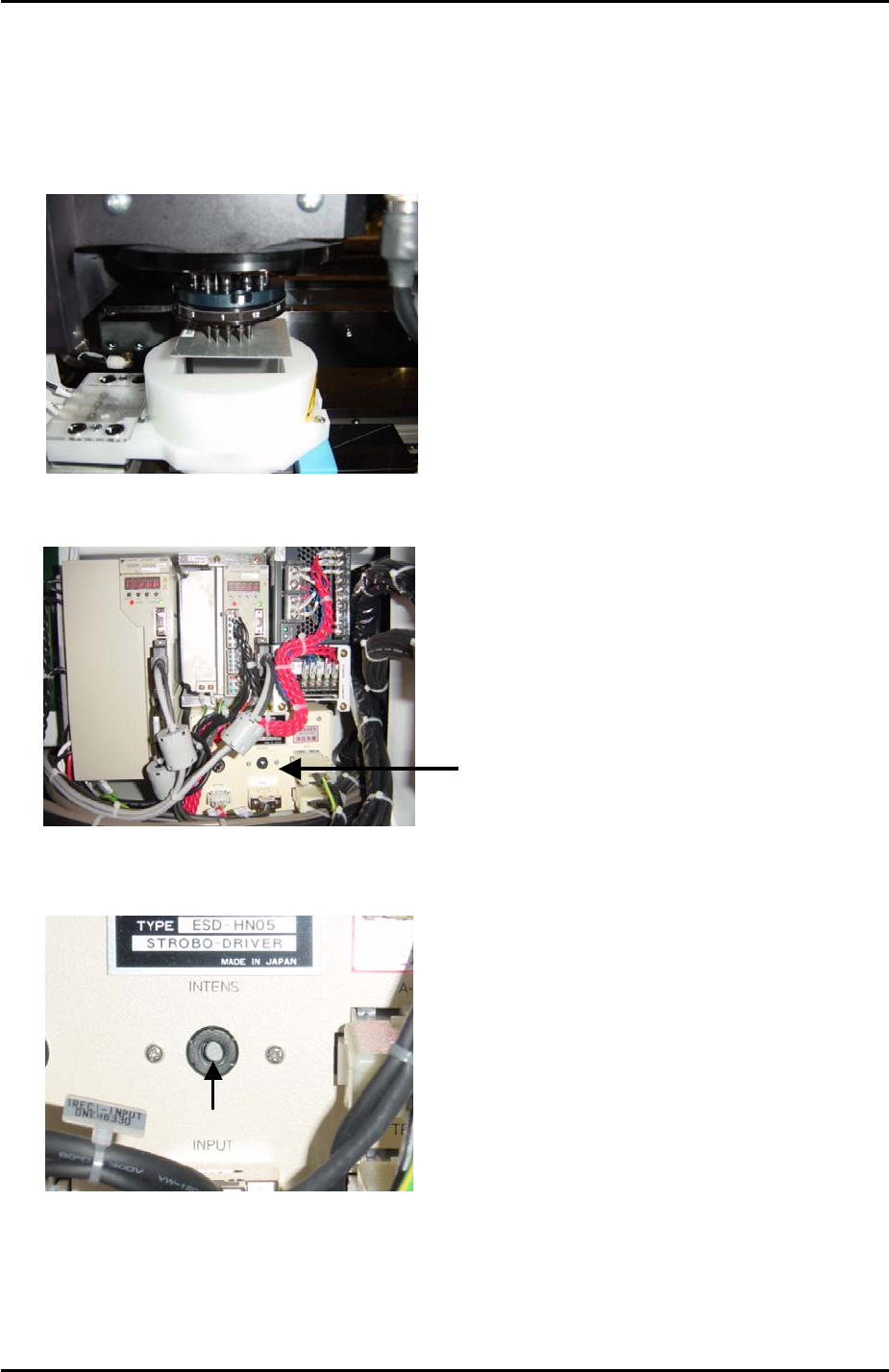

6.4 Parts Camera Brightness Adjustment
1. Select [Maintenance C] – [Custom Maintenance] - [Maintenance] – [I/O Check] – [Y016
VacuumPump] – [ON], lower all the vacuum pins and then attach the color sample to the
revolver with the grey surface facing downwards. Inch the color sample above the center
of the side 1 light source:
2. Locate the strobe light power source in the side 1 electrical box:
3. Use a minus driver to turn the “INTENS” volume screw fully clockwise.
Strobe Light
Power Source
Volume Adjustment
6. Select the [SIDE1] camera and touch the screen to display a brightness reading. Record
this value.
7. Now turn the “INTENS” volume screw fully anti-clockwise and touch the image of the
color sample on the display to get a second brightness reading. Record this value.
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
6 – 5 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP142E – Chapter 6 Proper Data Measurements Page 6 of 30
8. Add together the values recorded at steps 6 and 7, then divide the total by 2 to get the
average.
9. Adjust the “INTENS” volume screw and touch the image on the screen until the
brightness reading is at the average calculated in step 8. The intensity of the strobe light
power source is now exactly half way between its maximum and minimum.
10. Finally adjust the brightness gain on the top of the parts camera so that the brightness
reading is 120.

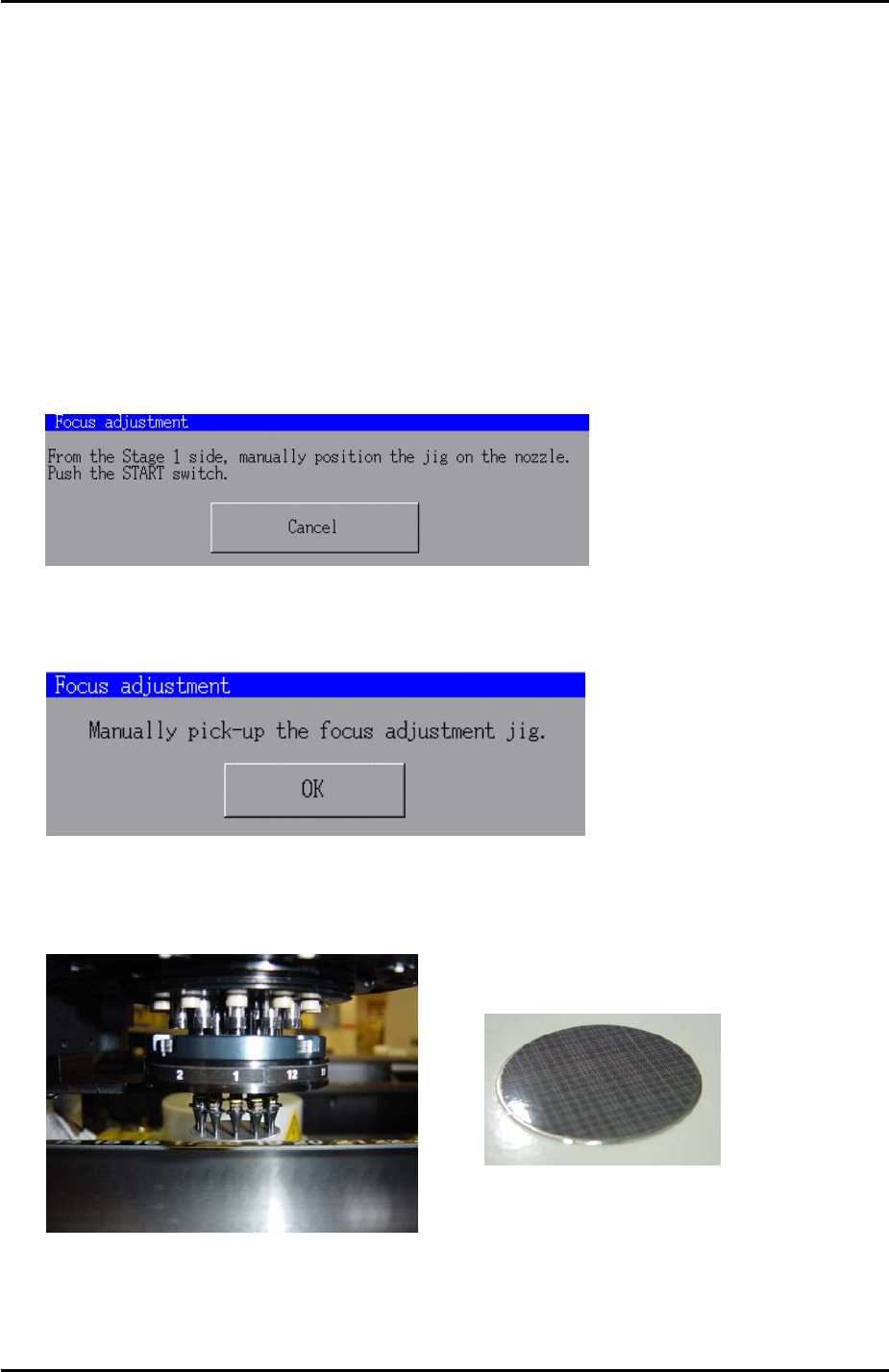

6.5 Parts Camera Focus Adjustment
1. In [Maintenance Mode] select [Maintenance] – [Focus adjustment] and the following
message appears:
2. Press and hold down the [START] button until the following message displays:
3. Put the focus jig on the revolver with the patterned side facing downwards:
Focus jig
4. Once the focus jig is on the revolver press [OK].
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
6 – 6 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP142E – Chapter 6 Proper Data Measurements Page 7 of 30
5. Choose [SIDE1] from the “Camera’ drop down list and press [Focus Adjustment]. The
following message appears:
6. Press and hold down the [START] button until the buzzer sounds and the red light
flashes. The following message appears:
7. Press [OK] and adjust the focus of the parts camera. When the focus is within range the
buzzer sounds and the red light flashes:
Buzzer
