FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP142E – Chapter 6 Proper Data Measurements Page 1 of 30
Chapter 6 – Proper Data Measurements
6.1 Parts Camera Setting
1. Set the parts camera aperture to 8.
6.2 Parts Camera Center Adjustment
1. Put 1.8mm nozzles in all of the nozzle pistons on the revolver.
2. Bring the revolver above the center of the side 1 light source.
3. Select [Maintenance C] – [Custom Maintenance] – and choose [SIDE1] from the
“Camera” drop down list.
4. Check the image on the screen and if necessary roughly set the focus and brightness of
the camera so that the image is clear.

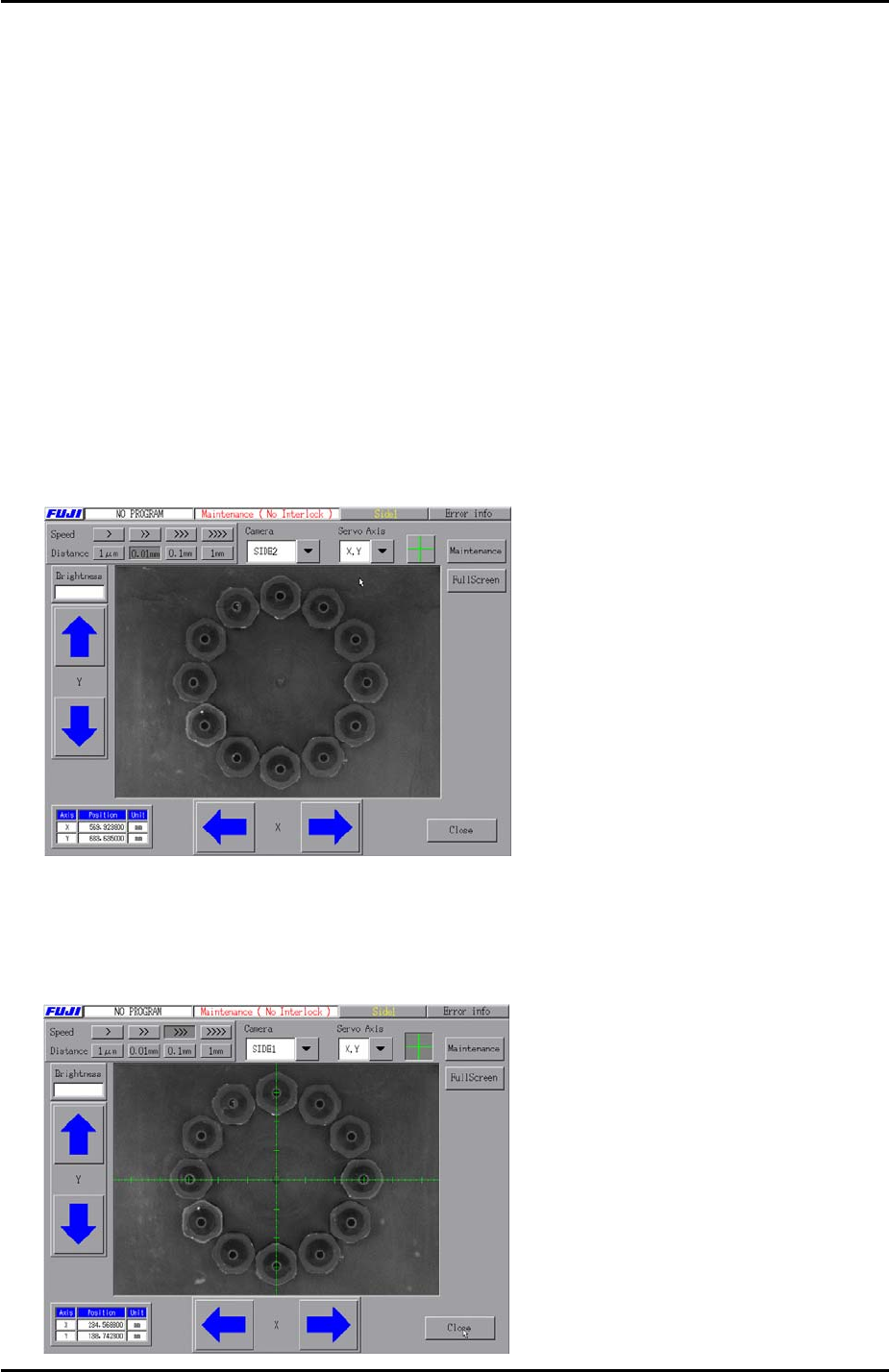

Aligning the Vertical Cross Hair
1. Select the cross hairs.
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
6 – 1 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP142E – Chapter 6 Proper Data Measurements Page 2 of 30
2. Loosen the 4 bolts on the back of the camera installation plate:
3
4
2
1
3. Unlock the nuts and use the two hollow bolts to adjust the tilt of the camera in the X
direction until the revolver center is aligned with the vertical cross hair:
Hollow
Bolts
4. Select the [Side2] camera and inch the revolver above the side 2 light source. Compare
the position of the vertical cross hair at side 1 and side 2. If the alignment is different
adjust so that the alignment is evened out between the two sides as illustrated in the
following example:
SIDE 2 SIDE 1
5. Finally lock the four bolts on the back of the camera installation bolt and the nuts for the
two hollow bolts.
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
6 – 2 CS Section
