FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 7 Checking Operation and Accuracy Page 4 of 6
Side 2
1. Repeat for the side 2 camera, (select side 2 at step 10) and move the parts to the rear
half of the pickup jig as indicated in the photo below:
Glass parts are picked
up from the rear half o
f
the pick up jig
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
7–4 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 7 Checking Operation and Accuracy Page 5 of 6
7.3 Reverse PAM
Side 1
1. Equipment: glass board (Z9731DNPJ002*), reverse measurement holder.
2. Select [Production] – [Select Program] – “ReverseAM-F-192-S1.PGO” – [Download].
3. Set a 0.7mm nozzle in the nozzle station and in the nozzle editor.
4. Put a feeder loaded with 1005R components in slot 25 of the MFU.
5. Select [Maintenance A] – [Operation Settings] and make the following settings:
Operation Mode Production
Production Mode Automatic
Error handling Error Pass
Accel. Rate 1.00
6. Put double sided tape on the center of the glass board as shown in the photo below:
7. Load the board in the conveyor and select [Production] – [Automatic] – [START] and
placement proceeds.
8. Once placement is completed press [CYCLE STOP] – [Close].
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
7–5 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 7 Checking Operation and Accuracy Page 6 of 6

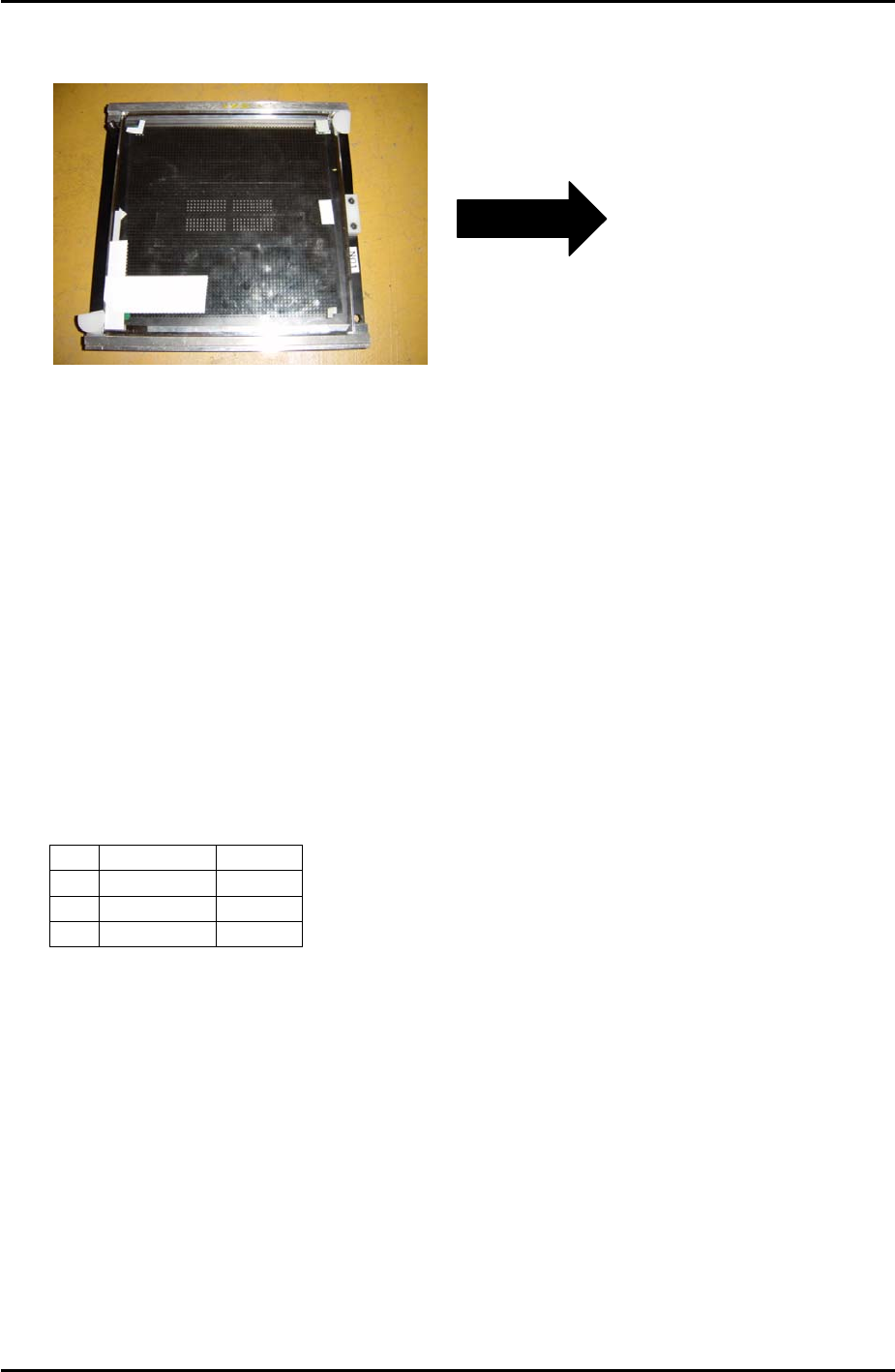

9. Remove the board from the conveyor and place it in the reverse measurement holder.
The surface upon which the components were placed should be facing down:
Insert in conveyor
in this direction
(Left to Right
conveyor). Plastic
stopper is at the
right of the holder.
10. Change the conveyor width to 198.5mm.
11. Load the reverse measurement holder in the conveyor and select [Conveyor Operation] –
[Load New Panel] to clamp the holder and board in the main table.
12. Select [Maintenance C] – [Accuracy Measurement] – and turn [Place Offset
Measurement Mode] ON.
13. Press [Select Program] – and select “ReverseAM-F-192-S1.PGO”.
14. Select [Reverse Start] – [START] to start the measurement.
15. Once measurement is complete the “Accuracy Measurement Result” window opens.
Press [Side1 Offset] – [OK] to save the offsets.
16. Remove the holder from the conveyor and replace the tape on the glass board, repeating
steps 6 to 15 until the results are within the following tolerance:
Average 3∑
X
+/- 0.020 0.050
Y
+/- 0.020 0.050
Q
+/- 0.200 1.500
Side 2
1. Repeat for side 2 using “ReverseAM-F-192-S2.PGO”.
