FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 1 Initial Adjustment Page 3 of 8
3. Press [SET] for more than 2 seconds.
4. Press [SET] once (“HYS” appears on the display).
5. Press [SET] once (“no” appears on the display).
6. Press [SET] once (“mAn” appears on the display).
7. Press [SET] once and the current air pressure displays (MPa). Unlock and turn the air
regulator until the pressure reading is 500 MPa. Lock the air regulator.
8. Press [SET] once (“P_1” and “.***” flash alternately).
9. Set the “.***” value to “.400”. This is the setting for the pressure switch, if the air pressure
drops below 400MPa the servo power to the machine will be cut.
10. Press [SET] twice to return to the original display.
11. Finally press and hold [SET] for more than 4 seconds to lock the pressure sensor.
1.3 Lubrication
Apply lubricant to the following areas:
Lubrication point
Daphne Eponex
No.2
Biral T&D
Z-axis ball screw O X
Spline shaft O X
Q-axis helical gear O X
Balls-crew (conveyor) O X
LM rail (conveyor) O X
Conveyor chain X O
Link arm sliding area (lifter plate) O X
Link arm sliding area (cutter) O X
LM rail (cutter) O X
LM rail (MTU) X O
Ball guide (MTU) O X
Ball-screw (MTU) O X
Note: Apply anticorrosion spray to the machine base, brackets, and other metal surfaces, to
prevent rust.
Note: Do not over apply lubricant to the ball screws, helical gears, LM guide rails, or other
parts of the machine that rotate or move at high velocity. Over lubrication may result in the
lubricant being flung around the machine and interfering with the sensors, vision processing,
and other aspects of the machine operation.
Fuji Machine Mfg. Co., Ltd. Okazaki.
SMT Equipment Quality Assurance Dept.
1 – 3 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 1 Initial Adjustment Page 4 of 8

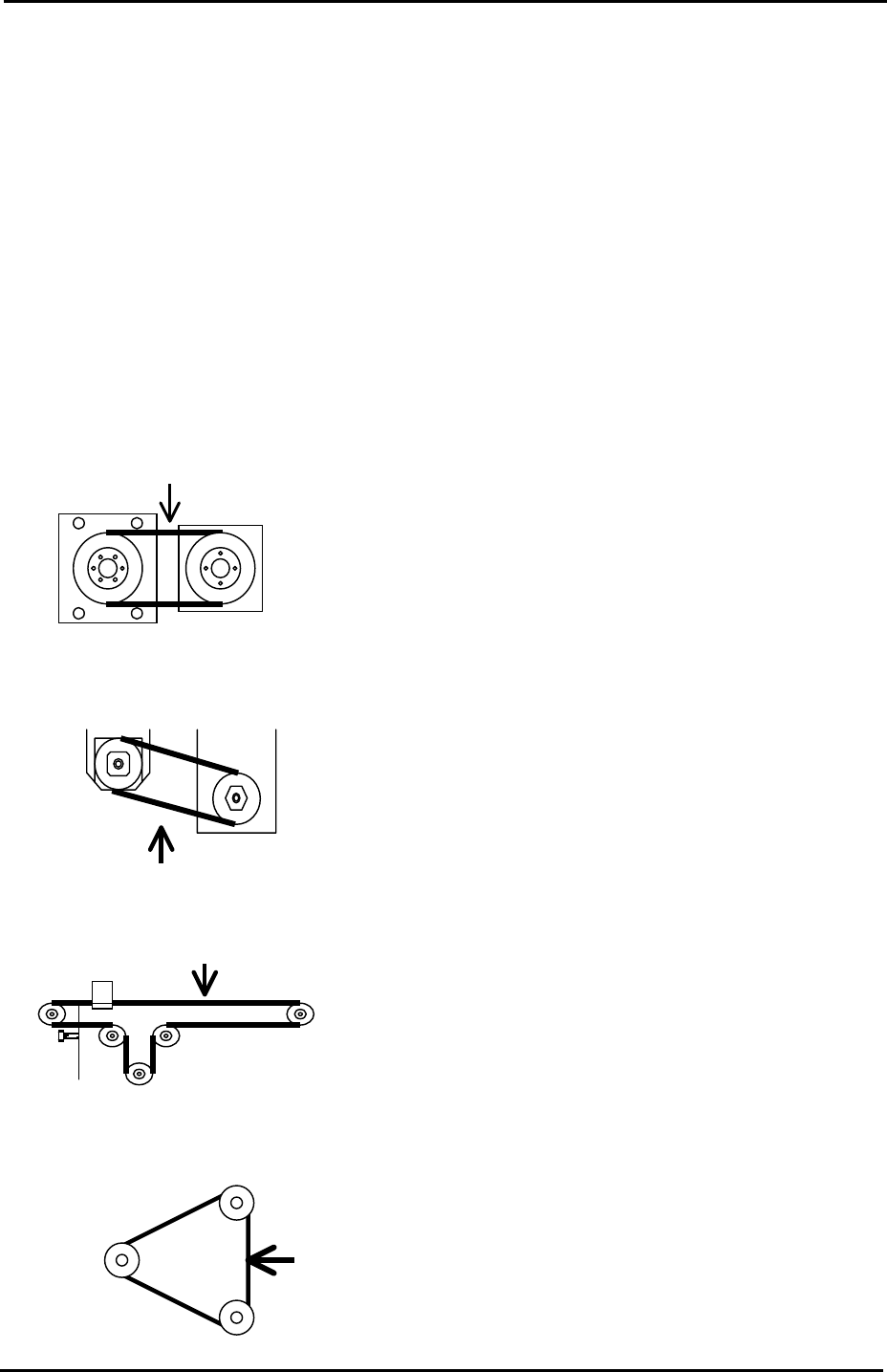

1.4 Belt Tension Measurement
1. Measuring equipment: Tension meter
2. Use the tension meter to check the belt tension of the Y, Z, T and U axes.
3. Press the Emergency Stop button and move each of the axes to the Minus (-) mechanical
stopper.
4. Refer to the following illustrations and check that the belt tension for each axis is within
the target range:
Y-axis measuring point
Tension meter setting
Belt unit amount: 4gf/m Target Frequency
Belt width:15mm 148~166 Hz
Span length:127mm
Z-axis measuring point
Tension meter setting
Belt unit amount: 2.5gf/m Target Frequency
Belt width: 9mm 389~431Hz
Span length: 54mm
U-axis measuring point
Tension meter setting
Belt unit amount: 2.5gf/m Target Frequency
Belt width:9mm 39~43Hz
Span length: 543mm
T-axis measuring point
Tension meter setting
Belt unit amount: 2.5gf/m Target Frequency
Belt width: 15mm 140~154Hz
Span length: 151mm
Motor
Ball screw
Mid pulley
Fuji Machine Mfg. Co., Ltd. Okazaki.
SMT Equipment Quality Assurance Dept.
1 – 4 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 1 Initial Adjustment Page 5 of 8
1.5 Computer connection
Note: at the time of publication the XP type II machine type is not officially supported in the
MCS/X, F4G or FujiCam host systems. Communication between the XP type II and these
hosts is possible but “machine type” should be set to XP141 or XP241.
Machine Side
1. Connect the LAN cable to the PC.
2. Remove the bottom left cover at the front of the machine, and connect the LAN cable to
the LAN port.
3. Select [Maintenance B] – [Start Up Settings]:
4. In the [Target] field input the machine nickname. In the [Ethernet Address] field input
the machine IP address.
5. After inputting the “Target” and “Ethernet Address” click on [Update] to save the new
settings and reboot the machine in order for them to take effect.
MCS/X
1. At the PC select [Start] – [Programs] – [MCSX] – [MCSX].
2. Click on the [File Manager] tab to bring up the "File Exchange" window.
3. To add a line, click on [Add Line], then enter a new line name, and click on [OK].
