FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 6 Proper Data Measurements Page 4 of 30
4. Inch the mark camera until it is centered on the center dot in the image:
5. Select [Maintenance A] – [Trace Bit] and select “SearchPoint”, “ReMeasure”,
“Inspect”, “Center”, and “Complete Center”as shown below:
6. Press [Close] to return to the [Maintenance A] screen and select [Scale Setting].
7. Select “Fiducial” from the [Camera] drop down list and “1.0 [mm] pitch WHITE” from
the [CalibSet] drop down list as shown below:
8. Select [Calibration] and answer YES to the question “Set Center?” and the
resolution measurement will proceed.
Fuji Machine Mfg. Co., Ltd. Okazaki.
SMT Equipment Quality Assurance Dept.
6 – 4 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 6 Proper Data Measurements Page 5 of 30
9. Answer NO to the question “Do you save calibration data to FD?”
10. To the next question “Save Calibration Data?” answer YES.
11. Confirm that the resolution results are within the tolerances shown below:
Mark camera resolution tolerance
X_Unit 0.0170 ~ 0.0189
X_View 10.9 ~ 12.1
Y_Unit 0.0170 ~ 0.0189
Y_View 8.16 ~ 9.07
12. The resolution calibration is now complete. Press [OK] to return to the
[Maintenance A] screen.
6.3 Mark Camera Orientation
1. Select [Maintenance A] – [JOG] – [Fiducial] and display the crosshairs on the
screen.
2. Inch the mark camera until it is centered on the fiducial mark on the left of the glass
gage station.
Glass gage station fiducial mark
3. Select [Maintenance C] – [Mark camera Measurement] – [FMarkPos Measure] –
[START] – [Change mark position] – [Execute] to save the fiducial mark position.
4. Select [Angle Measure] to measure the mark camera orientation.
Fuji Machine Mfg. Co., Ltd. Okazaki.
SMT Equipment Quality Assurance Dept.
6 – 5 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 6 Proper Data Measurements Page 6 of 30
5. Select [X Unit measure] to measure the mark camera resolution. Note that this is
not the primary resolution measurement, therefore do not save the results. Check
that the resolution values are within 0.05mm of those recorded in step 6.2 and then
press cancel.
6. Select [Y Unit measure] to measure the mark camera resolution. Note that this is
not the primary resolution measurement therefore do not save the results. Check
that the resolution values are within 0.05mm of those recorded in step 6.2 and then
press cancel.
7. If the deviation between the resolution values recorded in steps 6.2 and 6.3 is more
than 0.05mm re-measure the resolution using the glass gage procedure described
in 6.2.
8. Note that 6.2 is the primary resolution measurement because it reads a whole
series of marks on the glass gage and takes into account lens distortion.
9. Should the values in 6.2 and 6.3 fail to match within the tolerance after re-
measurement, please contact FUJI.
6.4 Board Origin
1. Select [Maintenance A] – [I/O check] – [Y02A Main StationSt] – and raise the main
stopper.
2. Select [Maintenance A] – [JOG] – [Fiducial] and display the crosshairs on the
screen.

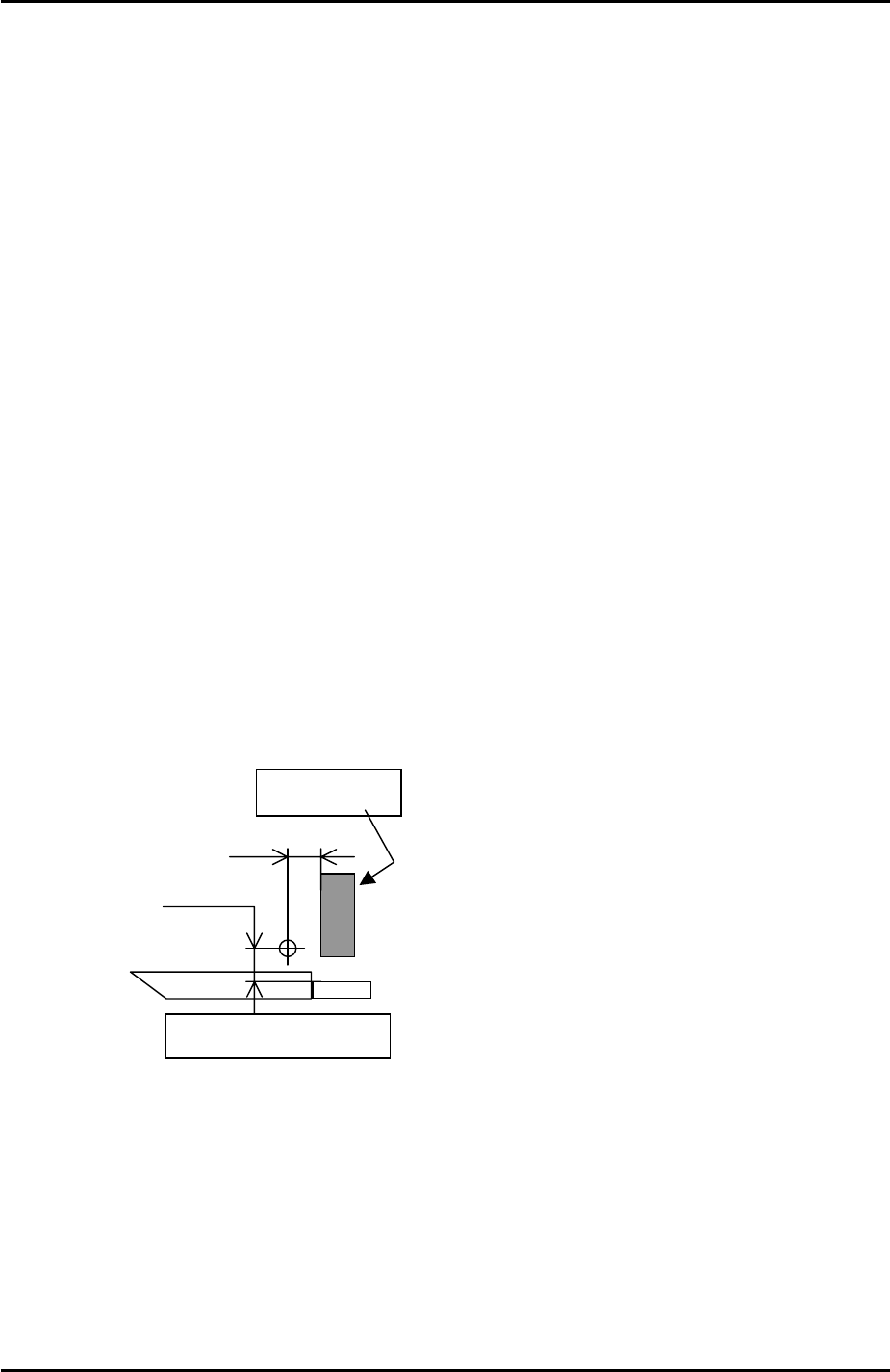

3. Set the vertical cross hair flush with the left side of the main stopper and then use
the inching tabs to move the X axis exactly 5mm in the minus direction.
5.0 mm
5.25 mm
Side of the reference rail
Main Stopper
4. Select [Maintenance C] – [Proper Data Editor] – [Machine Origin] – [X_board
Origin] and use direct servo input to save the current position to proper data.
5. Return to the [JOG] screen and set the horizontal cross hair flush with the side of
the reference rail and then use the inching tabs to move the Y axis 5.25mm in the
plus direction.
6. Select [Maintenance C] – [Proper Data Editor] – [Machine Origin] – [Y_board
Origin] and use direct servo input to save the current position to proper data.
