FK-9F98-34 XP T ype II Series T raining T ext for Service Engineers Edition 2.0 XP242E – Chapter 9 Options Page 6 of 12 4. Once the nozzle is aligned with the vertical cross hair as shown in the following image, lock the…
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 9 Options Page 5 of 12
7. Select [OK] – [Return] to exit the focus adjustment but remain in the maintenance
mode screen.
8. Press the E-stop button to cut the 200Volt power supply to the servos. Be careful not
to move the X, Y and Z axes as they are now at the coplanarity vision processing
position.
Camera Centering
Vertical Cross Hair
1. Select the cross hairs and then roughly adjust the focus so that the image of the
nozzle on the screen is clear and sharp.
2. Loosen the following 4 bolts on the base of the coplanarity camera bracket:
Loosen these 4 bolts
3. Adjust the orientation of the bracket until the nozzle is aligned with the vertical cross
hair (make sure there is a gap between the bracket and the conveyor motor):
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
9 – 5 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 9 Options Page 6 of 12

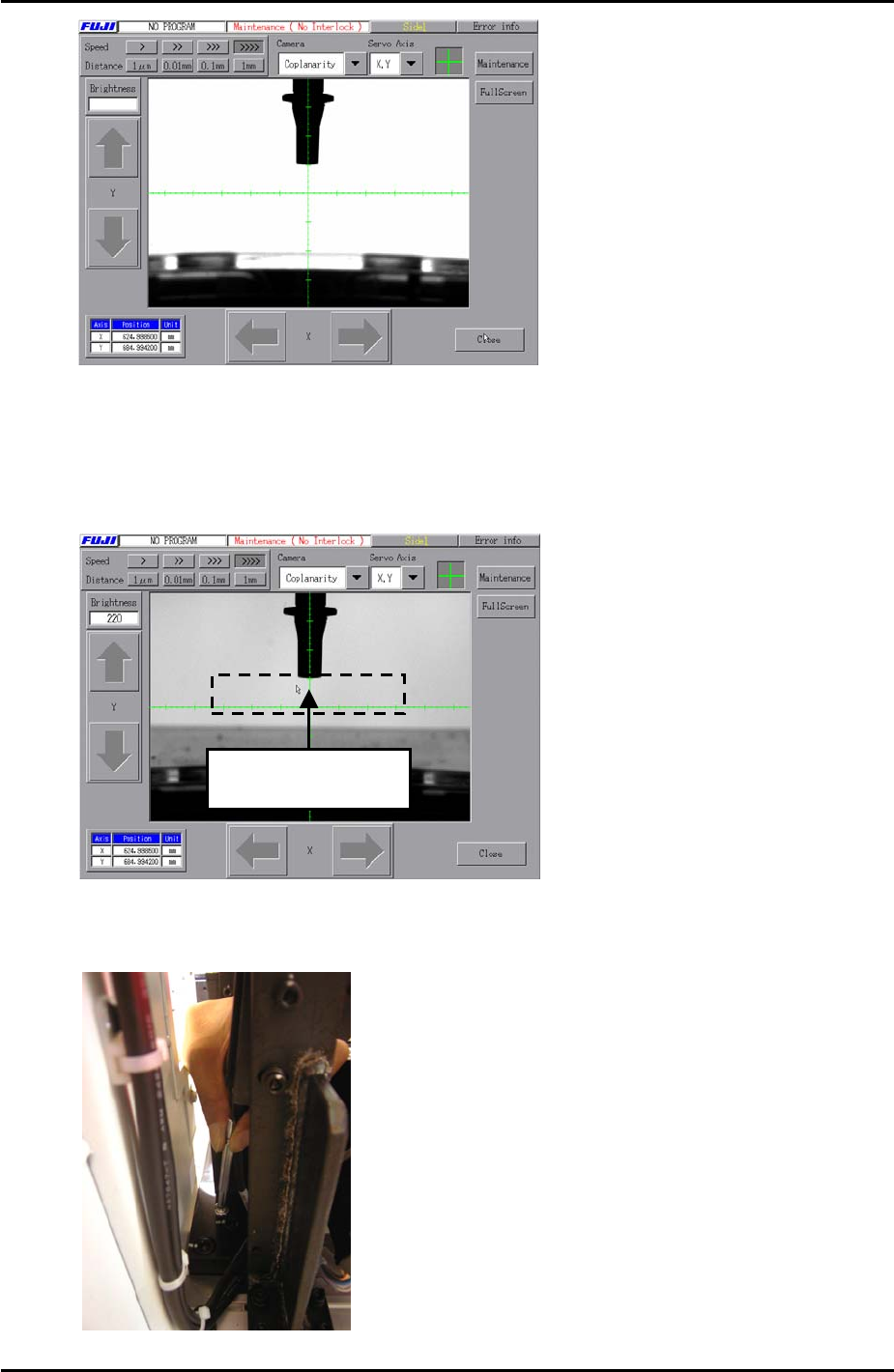

4. Once the nozzle is aligned with the vertical cross hair as shown in the following
image, lock the 4 bolts loosened in step 2.
Horizontal Cross Hair
1. Loosen the following two bolts and adjust the coplanarity camera tilt in the X direction:
Loosen
the
2 bolts
se
2. Once the tip of the nozzle is aligned 5 memory scales above the horizontal cross hair,
as shown in the following image, lock the 2 bolts loosened in step 1.
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
9 – 6 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 9 Options Page 7 of 12
Brightness
1. Touch the screen in the white background area as indicated in the image below to get
a brightness reading:
Touch the screen
A
nywhere in this area
2. Adjust the gain on the coplanarity camera until the brightness is set to 220 +/- 10.
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
9 – 7 CS Section
