FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 1 Initial Adjustment Page 5 of 8
1.5 Computer connection
Note: at the time of publication the XP type II machine type is not officially supported in the
MCS/X, F4G or FujiCam host systems. Communication between the XP type II and these
hosts is possible but “machine type” should be set to XP141 or XP241.
Machine Side
1. Connect the LAN cable to the PC.
2. Remove the bottom left cover at the front of the machine, and connect the LAN cable to
the LAN port.

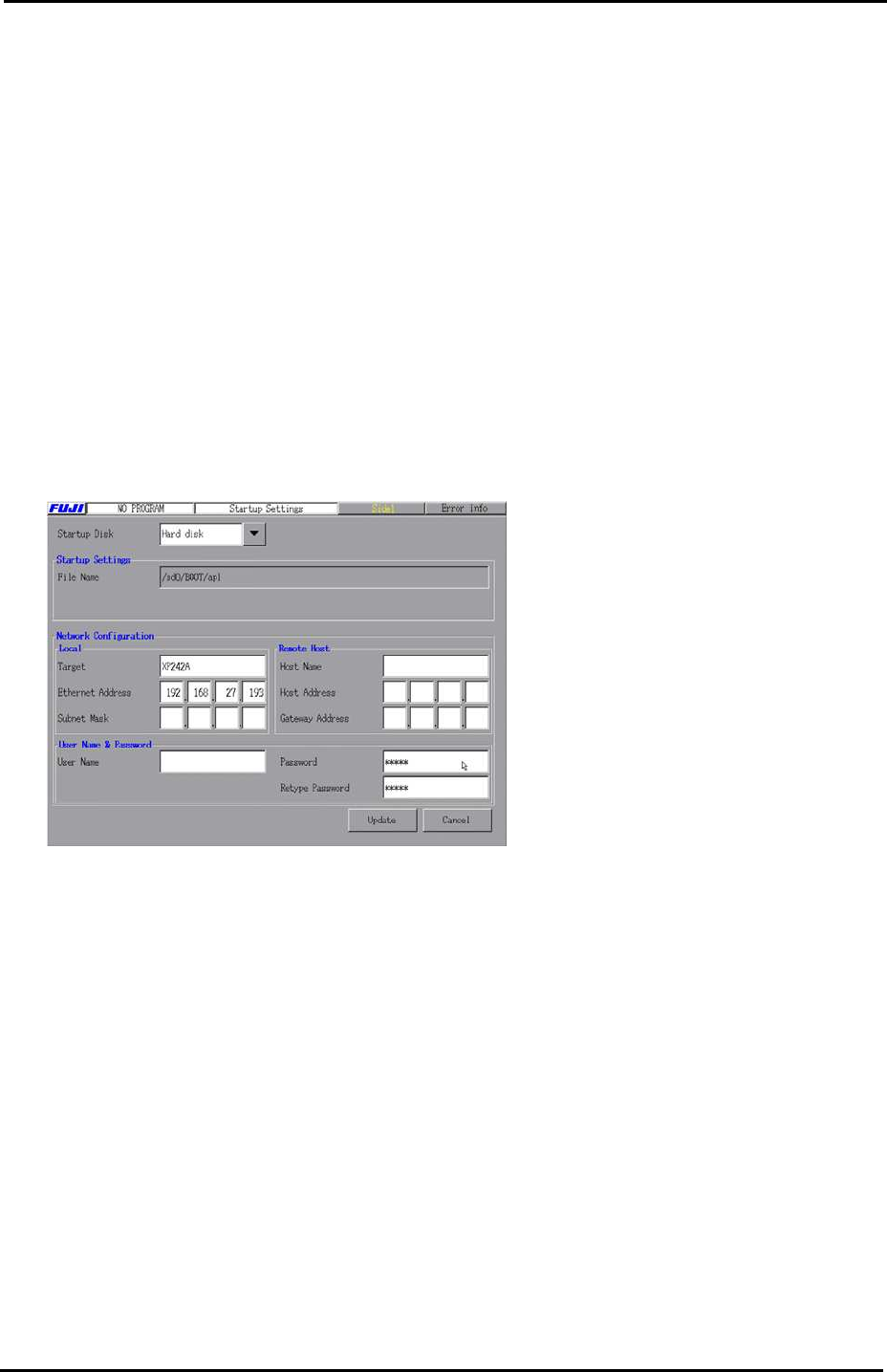

3. Select [Maintenance B] – [Start Up Settings]:
4. In the [Target] field input the machine nickname. In the [Ethernet Address] field input
the machine IP address.
5. After inputting the “Target” and “Ethernet Address” click on [Update] to save the new
settings and reboot the machine in order for them to take effect.
MCS/X
1. At the PC select [Start] – [Programs] – [MCSX] – [MCSX].
2. Click on the [File Manager] tab to bring up the "File Exchange" window.
3. To add a line, click on [Add Line], then enter a new line name, and click on [OK].
Fuji Machine Mfg. Co., Ltd. Okazaki.
SMT Equipment Quality Assurance Dept.
1 – 5 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 1 Initial Adjustment Page 6 of 8
4. To add a machine, click on [Add M/C]:
Line Name: Choose an available line.
Machine nick n
ame: For example XP241A
Machine t
ype: Input the machine type.
I
P Address: Input the machine IP address.
When finished click on [OK].
F4G
1. At the PC select [Start] – [Programs] – [Windows NT Explorer] – [Winnt] – [System 32] –
[drivers] – [etc] – [hosts] and open the hosts file with notepad, a text file similar to the one
below will then open:
127.0.0.1 localhost
192.168.33.190 italy
192.168.39.2 pascal
192.168.39.10 uk
192.168.33.154 XP241A
2. Make a new entry, and in the first column input the machine's IP address, then a "host
name" in the next column. Close and save the file.
3. Select [Start] – [Programs] – [F4G] – [F4G] – [Line Config] and a text file will open. In the
MC Name column input the same hosts name as that registered in the hosts file, then in
the HOSTNAME column also input the same host name as that registered in the hosts
file, in this case XP241A. Under the MCTYPE column input the machine type, for
example XP241. Close and save the file.
4. At the PC select [Start] – [Programs] – [Windows NT Explorer] – [F4G] – [CC] – [Passwd]
and open the passwd file with notepad, a text file similar to the one below will then open:
# C/C OS User-ID PassWord
#cc1, OS9, super, user
italy, WINDOWSNT, Administrator,
XP241A, WINDOWSNT, anonymous,
5. Make a new entry, and in the first column of the new entry input the same host name as
that registered in the hosts file. In the OS column input WINDOWSNT, and in the User-ID
column input, anonymous. Close and save the file.
6. The settings are now complete, restart the computer in order for them to take effect.
Fuji Machine Mfg. Co., Ltd. Okazaki.
SMT Equipment Quality Assurance Dept.
1 – 6 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 1 Initial Adjustment Page 7 of 8
7. To confirm that the machine and PC are communicating, enter the F4G Operator Module
and open up the [Transmit Engine] and then the [Transmitter].
FujiCam
1. At the PC select [Start] – [Programs] – [Windows NT Explorer] – [Winnt] – [System 32] –
[drivers] – [etc] – [Hosts] and open the hosts file with notepad, a text file similar to the one
below will then open:
127.0.0.1 localhost
192.168.33.190 italy
192.168.39.2 pascal
192.168.39.10 uk
192.168.33.154 XP241A
Make a new entry, and in the first column input the machine's IP address, then a "host
name" in the next column. Close and save the file.
2. At the PC select [Start] - [Programs] - [FujiCam] - [Line Editor] - [Edit] - [Add Machine],
then fill out the new machine information as described below:
Machine Nickname: input the same host name as that registered in the hosts file.
Machine Type: Select the appropriate machine type from the pull down list.
GEM Not Use: No.
Get Production Data: No.
Recipe Name, Top: input the top recipe name for the machine.
Recipe Name, Bottom: input the bottom recipe name for the machine.
Host Name: Input the name of the FujiCam license holding server.
PPS Exist: No.
Use HELPS: No.
Cell Status: Unit.
Termination Type: Manual.
Use KIT: No.
C/C: No need to fill out this information as the XP uses F.T.P.
SECS/GEM: No need to fill out this information as the XP uses F.T.P.
2. Finally confirm that the PC and machine are communicating.
Fuji Machine Mfg. Co., Ltd. Okazaki.
SMT Equipment Quality Assurance Dept.
1 – 7 CS Section
