FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 6 Proper Data Measurements Page 29 of 30

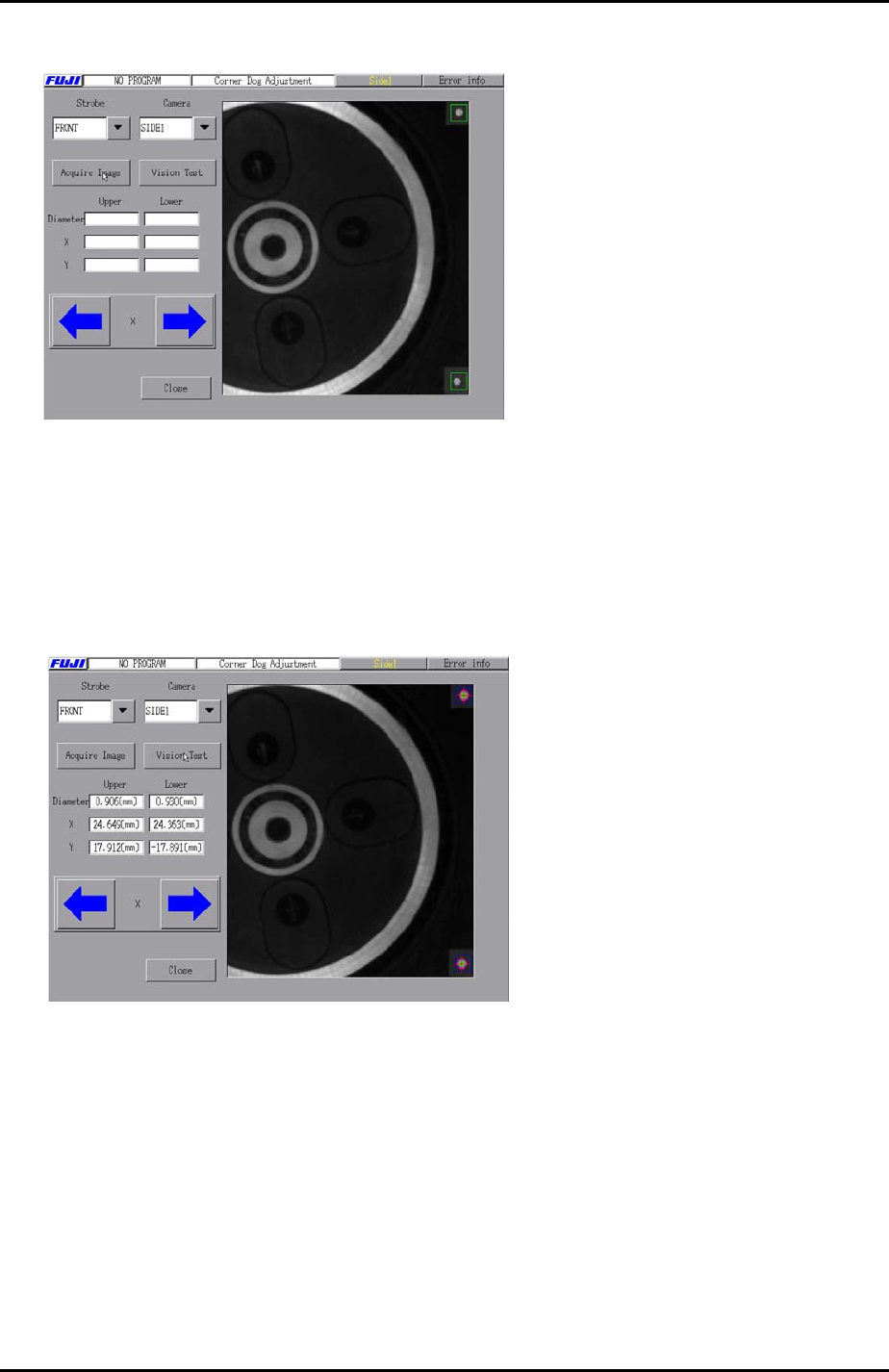

4. Adjust the position of the corner dog so that the two marks on the corner dog
bracket appear within the borders of the green search area as shown below:
5. Select [SIDE 2] – [Acquire Image] – and hold down [START] to confirm that the two
marks on the corner dog bracket appear within the borders of the green search
area at the side 2 camera.
6. After adjusting the position of the corner dog within the borders of the green search
area select [Vision Test] to confirm that the corner dog can be vision processed. If
vision processing is successful trace lines will appear on the corner dog as shown
in the photo below:
Fuji Machine Mfg. Co., Ltd. Okazaki.
SMT Equipment Quality Assurance Dept.
6 – 29 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 6 Proper Data Measurements Page 30 of 30
NOTES:
Fuji Machine Mfg. Co., Ltd. Okazaki.
SMT Equipment Quality Assurance Dept.
6 – 30 CS Section
