FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP142E – Chapter 6 Proper Data Measurements Page 8 of 30
8. Once the focus has been set within range press the following tab to terminate the
adjustment:
9. Press [OK] and then [Close]. The following message appears:
Press here to terminate
the adjustment
10. Remove the focus jig by hand and then press [OK].
11. Repeat the procedure for side 2 to confirm the focus is also within range at side 2.
12. Finally lock the focus ring hollow bolt with loctite 425.
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
6 – 8 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP142E – Chapter 6 Proper Data Measurements Page 9 of 30
6.6 Parts Camera Resolution Measurement (Standard)
1. Equipment: resolution measurement jigs (Z3502DEAJ0020).
Low Parts
Standard
2. Insert 1.8mm nozzles in all of the nozzle pistons.
3. In [Maintenance Mode] select [Maintenance] – [I/O Check] – [Y016 VacuumPump] – [ON]
and lower all the vacuum pins on the revolver.
Air blow pin
Vacuum pin
4. Put the standard resolution measurement jig on the revolver with the printed surface
uppermost:
Resolution measurement
glass gauge.
Printed surface
uppermost
5. Select the [SIDE1] camera and inch the Y-axis to the [PrismFront] position.
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
6 – 9 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP142E – Chapter 6 Proper Data Measurements Page 10 of 30

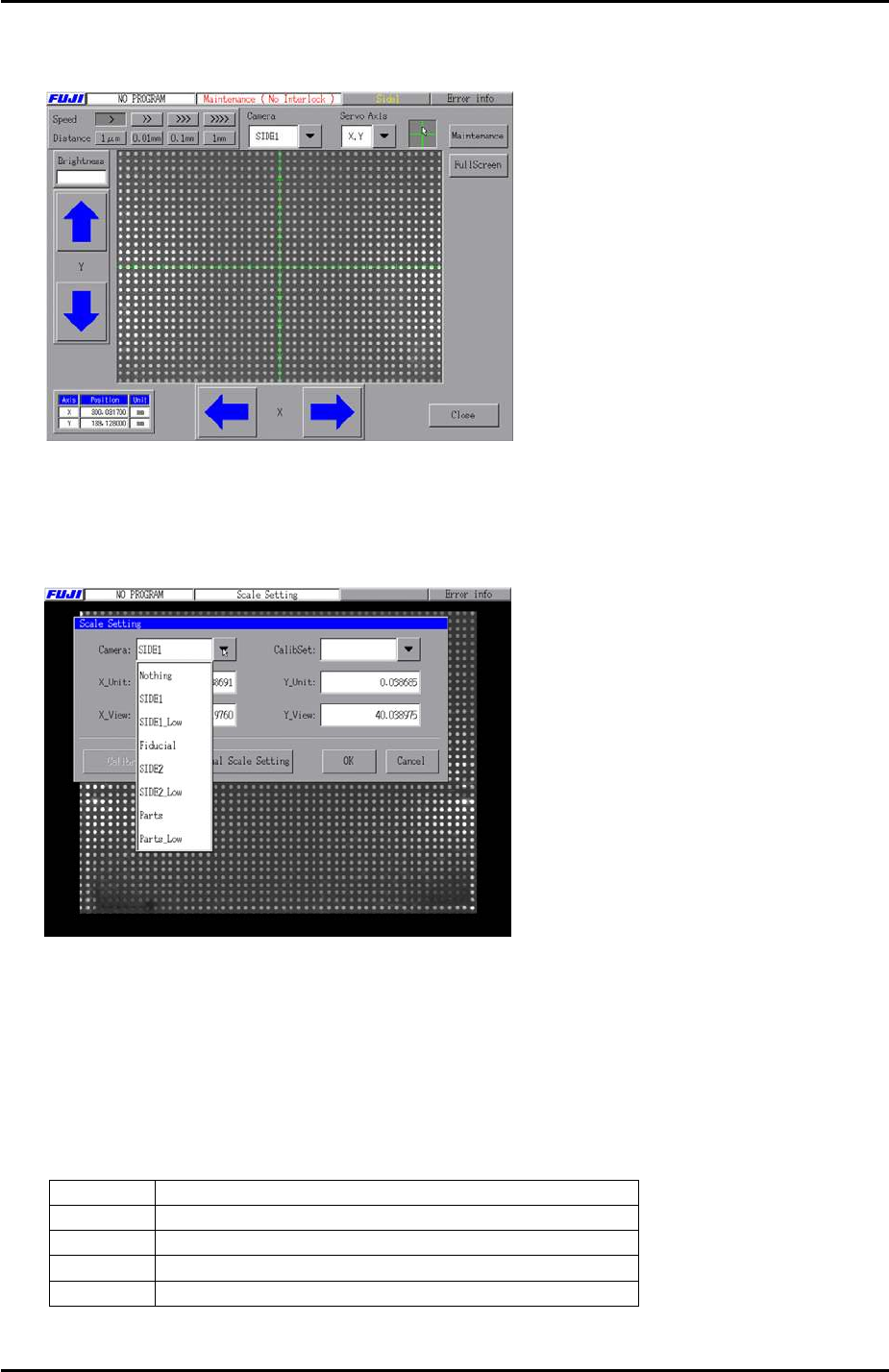

6. Select the cross hairs and then adjust the position of the resolution measurement jig until
the center dot is in the center of the camera cross hairs.
7. Press [Close] to exit Maintenance Mode and then select [Maintenance A] – [Scale
Setting] and choose [SIDE1] from the “Camera” drop down list. Select “1.0 [mm] pitch
WHITE” from the [CalibSet] drop down list.
8. Make sure that the 200V are ON then press [Calibration] and answer [YES] to the
question “Set Center?” The resolution measurement will proceed.
9. Answer NO to the question “Do you save calibration data to FD?”
10. To the next question “Save calibration data?” answer YES.
11. Confirm that the resolution results are within the tolerances described below:
Parts camera resolution tolerance (Standard)
X_Unit
0.03541596 ~ 0.04016976
X_View
48.20093 ~ 54.67071
Y_Unit
0.03541596 ~ 0.04016976
Y_View
36.61971 ~ 41.535
12. Press [OK] to return to the [Maintenance A] screen and repeat steps 5 to 11 for side 2.
