FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 9 Options Page 1 of 12
9.1 Panel Vacuum Back Up
The optional panel vacuum backup system can be used to prevent upward warping of
panels, and can also be used to detect panel-clamping errors. A vacuum pressure sensor is
used to establish whether the panel has been vacuumed or not. The procedure described
below is the default procedure used in the Fuji inspection process. The threshold of the
pressure sensor and other configurations in this adjustment may need to be set manually
according to the individual requirements of the user.
Dip Switch Setting
1. Set the N.C/N.O switch to “N.O” (Normally Open).
2. After the adjustment is finished set the pressure display switch to “MEAS”. During the
adjustment this should be set to “SET”.
N.O
N.C
SET
MEAS
Trimmer Setting
1. Set the Hysteresis Trimmer (HYS) to minimum by turning it fully counterclockwise.
SET
Pressure Trimmer
Hysteresis Trimmer
HYS
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
9 – 1 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 9 Options Page 2 of 12

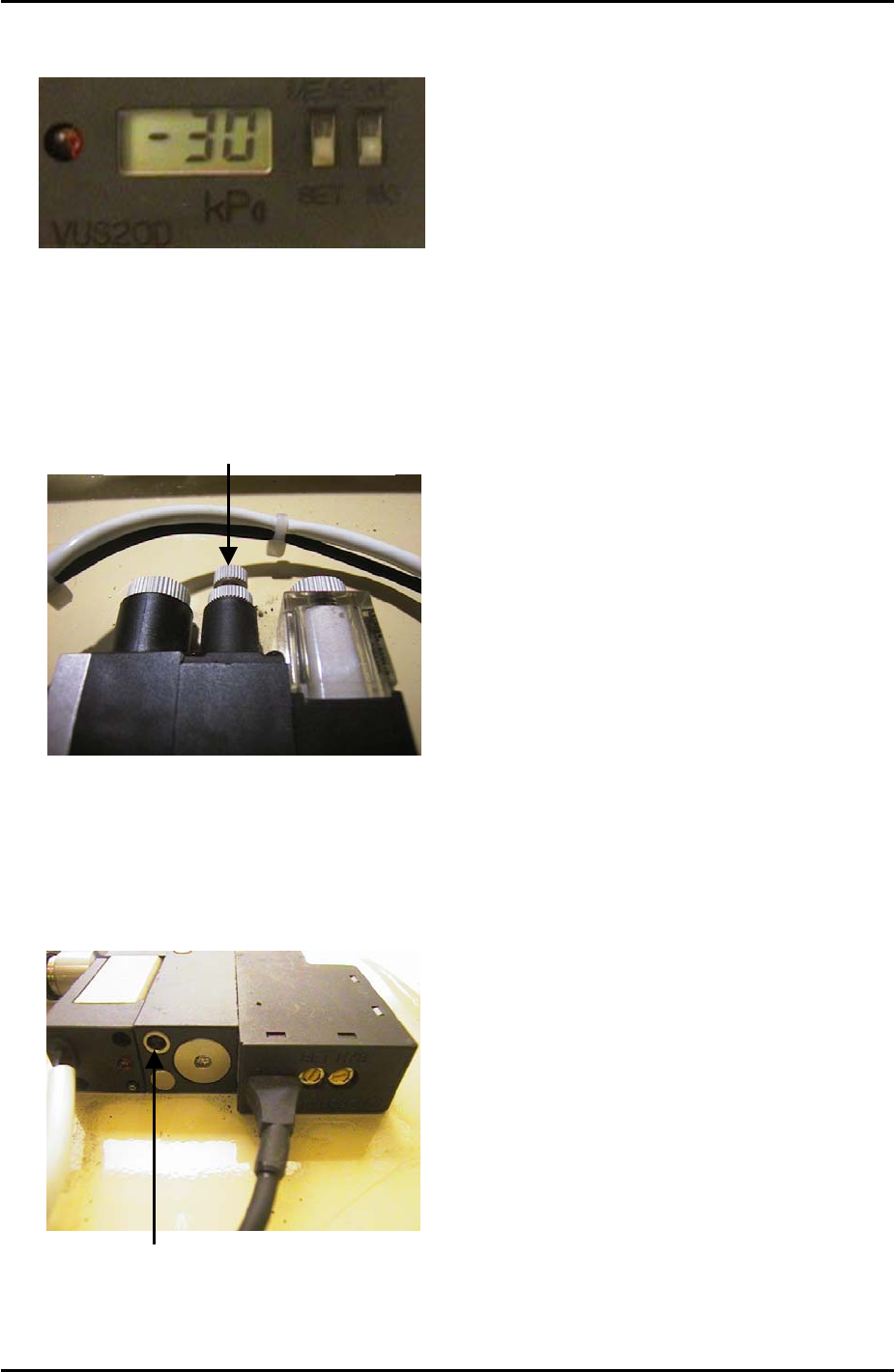

2. Set the Pressure Trimmer (SET) to –30cmHg.
Speed Controller Adjustment
1. Turn the air blow volume controller 3 turns from fully closed and lock.
Air Blow Volume Controller
2. Use a minus screw driver to turn the air blow release timer fully closed clockwise. From
this position turn the timer 7 turns counter clockwise. Turning the timer clockwise will
increase the air blow release time. Turning it counter clockwise will decrease the air blow
release time.
Air Blow Release Timer
3. When setting up the vacuum back up pins on the back up plate the air terminals should
be screwed into the correct holes. The vacuum air supply is only available from the Y-
direction line 5 holes from the back up plate left hand side.
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
9 – 2 CS Section
