FK-9F98-34 XP T ype II Series T raining T ext for Service Engineers Edition 2.0 XP242E – Chapter 5 Peripheral Adjustm ents Page 16 of 16 Power Remover Set Check Sensors 1. Select [Maintenance A] – [I/O Check] – [X029 Rem…
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 5 Peripheral Adjustments Page 15 of 16

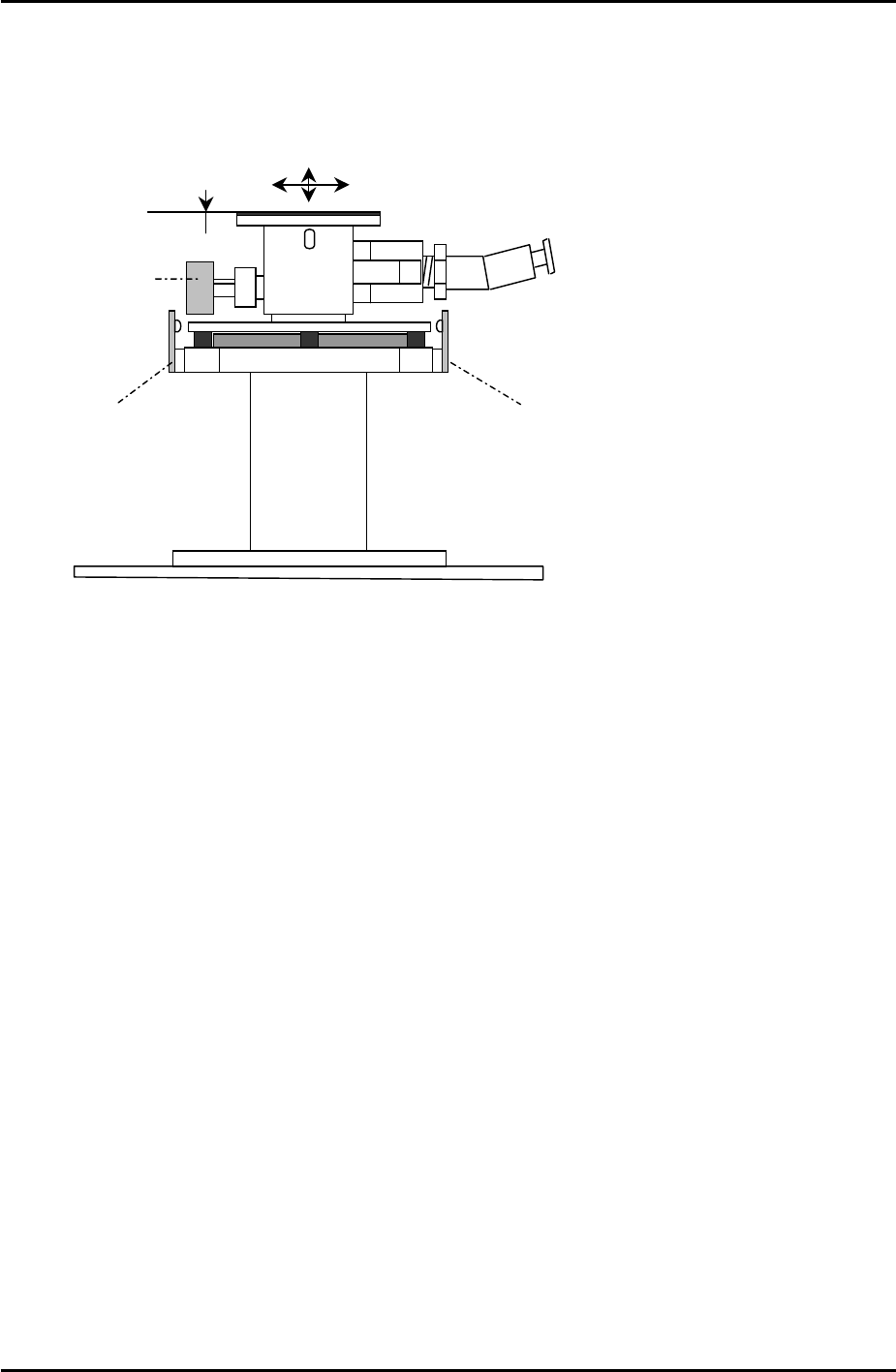

5.8 Adjusting the Power Remover
1. Set the power remover in its station.
Set Check Sensor
Set Check Sensor
Tray pickup
confirmation
2. Select [JOG] and inch the vacuum head close to the remover.
3. Press the emergency button to cut the 200V power supply to the servos. Lower the Z-axis
and stop just before it contacts the remover. Manually jog the position of the X and Y axes
until the pick up head is aligned directly above the remover.
4. Select [Maintenance C] – [Proper Data Editor] – [NOZZLE_POSITION] –
[X_RemoverPos] and [Y_RemoverPos] – [Direct Servo Input] to save the current X and Y
axes positions to proper data.
5. Lower the Z-axis until the pick-up head just contacts the top of the remover, then lower
the head a further 1.0mm. Select [Z_RemoverPos] – [Direct Servo Input] to save the
current Z axis position to proper data.
6. Release the emergency button, and turn the 200V supply to the servos ON. Select
[Production] – [Nozzle Operation] – [Remover] to pick up the remover.
7. Select [Maintenance A] – [I/O Check] – [Y030 RemoverVacuum] – [ON].
8. Confirm that the remover can vacuum a 750 gram tray.
Fuji Machine Mfg. Co., Ltd. Okazaki.
SMT Equipment Quality Assurance Dept.
5 – 15 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP242E – Chapter 5 Peripheral Adjustments Page 16 of 16
Power Remover Set Check Sensors
1. Select [Maintenance A] – [I/O Check] – [X029 Remover Set Check]. The I/O should be
ON when the power remover is set correctly in its pins, and OFF when set incorrectly.
The sensor beam is designed to be cut if the power remover is 1.5mm or more higher
than its correct position.
Fuji Machine Mfg. Co., Ltd. Okazaki.
SMT Equipment Quality Assurance Dept.
5 – 16 CS Section
