User Manual SIPLACE CA-Series 5 Setting up and Commissioning
From software version SC.708.0 Edition 12/2014 EN -DRAFT 5.5 Setting Up the Placement Machine
297
5.5.7.7 Installing the Bottom Hand Guard
The placement machines are only supplied with one bottom hand guard. However, if the place-
ment machines are installed in a line, there will be no hand guard between neighboring output and
input conveyors.
5
5

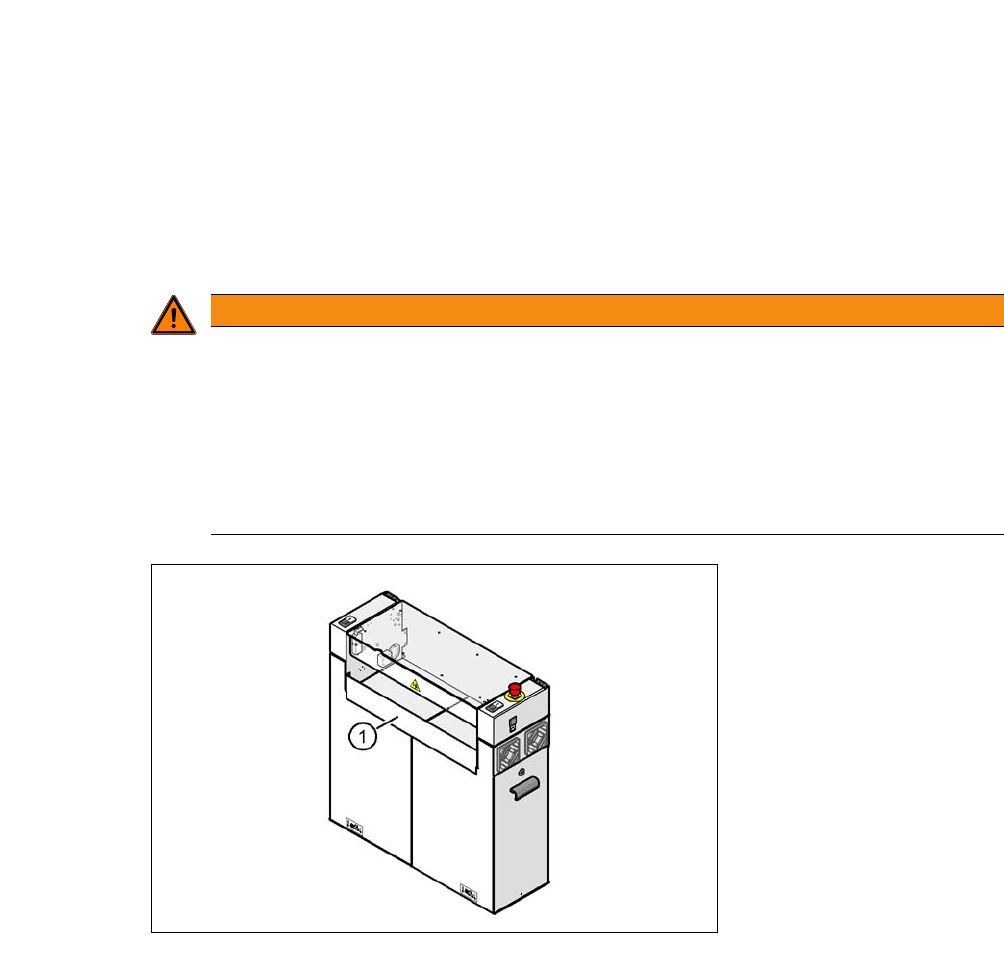

Fig. 5.5 - 11 Fitting the "bottom" hand guard to the PCB output side
(1) "Bottom" hand guard [03003432-01]
WARNING
Unauthorized Access!
A missing hand guard between the input and output sides of the placement machine in a
production line could lead to unauthorized access if staff reach into the inside of the place-
ment machine.
Always fit the bottom hand guard at the input side of the first placement machine and
on the output side of the last placement machine in a line [03003432-01] with 4 hexa-
gon socket-head screws M4x12.
5 Setting up and Commissioning User Manual SIPLACE CA-Series
5.5 Setting Up the Placement Machine From software version SC.708.0 Edition 12/2014 EN -DRAFT
298
5.5.8 Installing the Axis Unit in the CA4
5.5.8.1 Axis Unit CA4 (Gantries 2 and 3) - Electrical Connection Points
5
Fig. 5.5 - 12 Axis unit CA4 (gantries 2 and 3), rear side - electrical connection points
Plug Plug
Plug
User Manual SIPLACE CA-Series 5 Setting up and Commissioning
From software version SC.708.0 Edition 12/2014 EN -DRAFT 5.5 Setting Up the Placement Machine
299
5.5.8.2 Axis Unit CA4 (Gantries 2 and 3) - Connecting the Plug
Connect the power cable as shown in the following diagram:
5
5
Check the switch settings of S1
1: ON
2: ON
Axis unit CA4 plug Connection cable Please note
Plug Cable
X21 X21
03009782
03009783
03009784
03009785
03009786 W1-W5
Secure connector with clips
X22 X22
03009802
03009803
03009804
03009805
03009807
Secure connector with clips
X01_3sq X4tr 03009780 Snap connector into place
X02_3sq X4tt 03009781 Snap connector into place
X05_3sq X4ur 03009800 Snap connector into place
X06_3sq X4ut 03009801 Snap connector into place
X01_1sq
X02_1sq
X03_1sq
X1to
X3to
X5to
03009791
03009792
03009793
Insert as far as the stop
X04_1sq
X09_1sq
X10_1sq
X1tp
X3tp
X5tp
03009794
03009795
03009796
Insert as far as the stop
X05_1sq
X06_1sq
X07_1sq
X1uo
X3uo
X5uo
03009811
03009812
03009813
Insert as far as the stop
X08_1sq
X11_1sq
X12_1sq
X1up
X3up
X5up
03009814
03009815
03009816
Insert as far as the stop
X30_1sq
X30_2sq
X30_1sq
X30_2sq
03010054
03010054
Screw tightly
