2 Operational Safety User Manual SIPLACE CA- Series 2.8 Safety Features From software version SC.708.0 Edition 12/2014 EN -DR AFT 84 2.8.2 Switches and Buttons on th e Machine and on the SWS 2.8.2.1 Position of Switches …
User Manual SIPLACE CA-Series 2 Operational Safety
From software version SC.708.0 Edition 12/2014 EN -DRAFT 2.8 Safety Features
83
Function 2
If one of the protective covers is swung upwards or if one of the cover flaps on the PCB conveyor
is lifted, the power supply to the gantry axes and SWS will be immediately interrupted. The gantry
axes and all SWS axes will come to a standstill. The message "Close cover" is displayed on the
screen.
Close the protective covers and press one of the Start buttons on the machine (item 1 in fig.
2.8 - 2
).
2

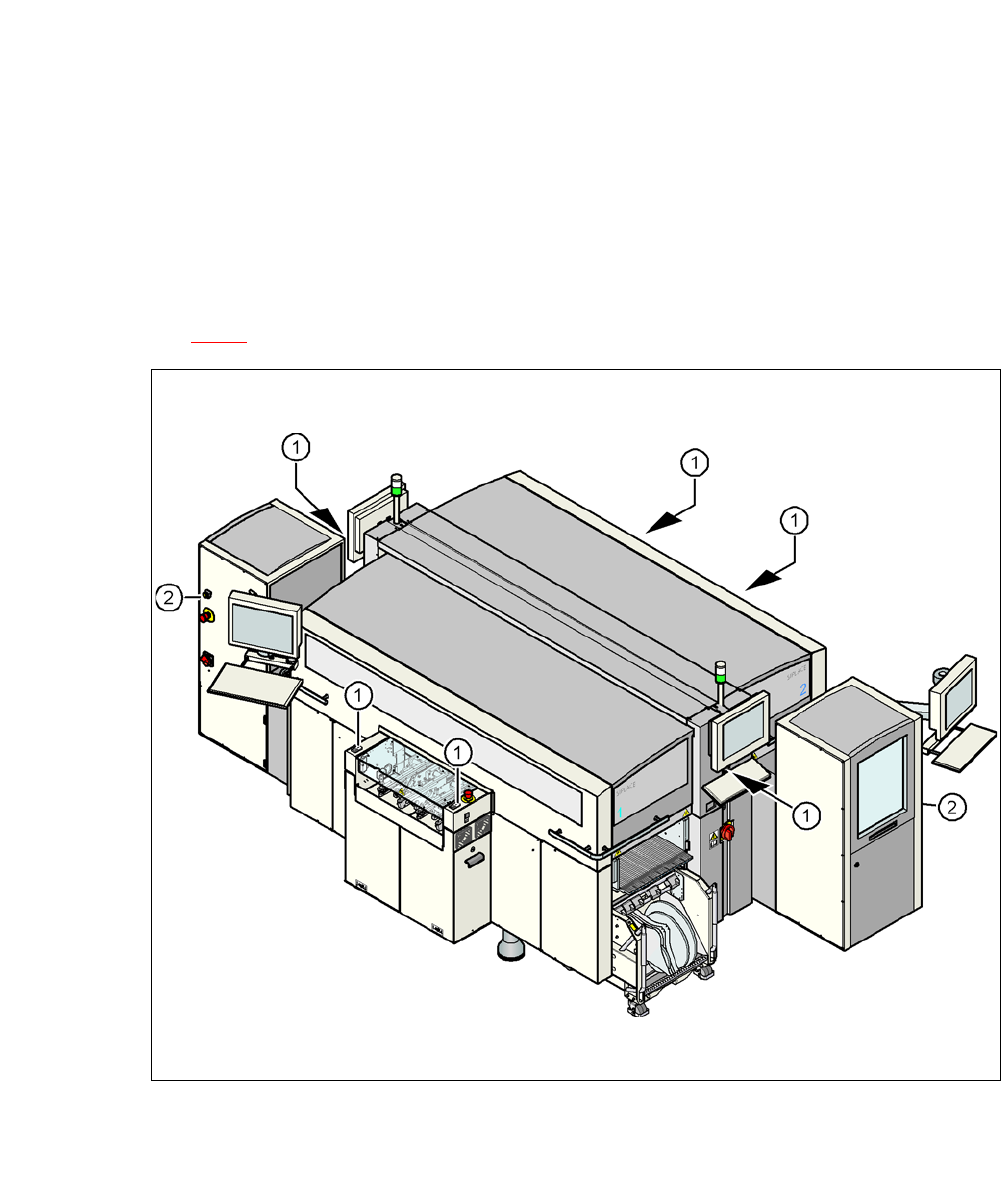

Fig. 2.8 - 2 Position of the start and EMERGENCY STOP reset button (white) on the machine and on the SWS
(1) Start button (white) on the machine
(2) Operating status indicator (white) on the SWS
2 Operational Safety User Manual SIPLACE CA-Series
2.8 Safety Features From software version SC.708.0 Edition 12/2014 EN -DRAFT
84
2.8.2 Switches and Buttons on the Machine and on the SWS
2.8.2.1 Position of Switches and Buttons on the Machine and on the SWS
2
Fig. 2.8 - 3 Position of switches and buttons - view of the PCB output side
(1) Main switch on machine
(2) Stop button (black) on the operator panel on the power supply side
(3) Start button (white) on the operator panel on the power supply side
(4) Component counter on the operator panel on the power supply side
(5) EMERGENCY STOP button on the output side
(6) Start button (white) on the output side
(7) Stop button (black) on the output side
(8) Button (black) for docking the component trolley in or out, location 2
(9) Button (black) for docking the component trolley in or out, location 3
(10) EMERGENCY STOP button on the SWS
(11) Operating status indicator on the SWS
(12) Main Switch at the SWS
(T) PCB transport direction
2
User Manual SIPLACE CA-Series 2 Operational Safety
From software version SC.708.0 Edition 12/2014 EN -DRAFT 2.8 Safety Features
85
Fig. 2.8 - 4 Position of switches and buttons - view of the PCB input side
(1) EMERGENCY STOP button on the input side
(2) Start button (white) on the input side
(3) Stop button (black) on the input side
(4) Start button (white) on the operator panel on the compressed air unit side
(5) Stop button (black) on the operator panel on the compressed air unit side
(6) Button (black) for docking the component trolley in or out, location 1
(7) Button (black) for docking the component trolley in or out, location 4
(8) EMERGENCY STOP button on the SWS
(9) Operating status indicator on the SWS
(10) Main Switch at the SWS
(T) PCB transport direction
