5 Setting up and Commissioning User Manual SIPLACE CA-Series
5.5 Setting Up the Placement Machine From software version SC.708.0 Edition 12/2014 EN -DRAFT
314
5.5.12 Installing the Computer Unit for the CA4
5.5.12.1 Computer Unit - Electrical Connection Points
5

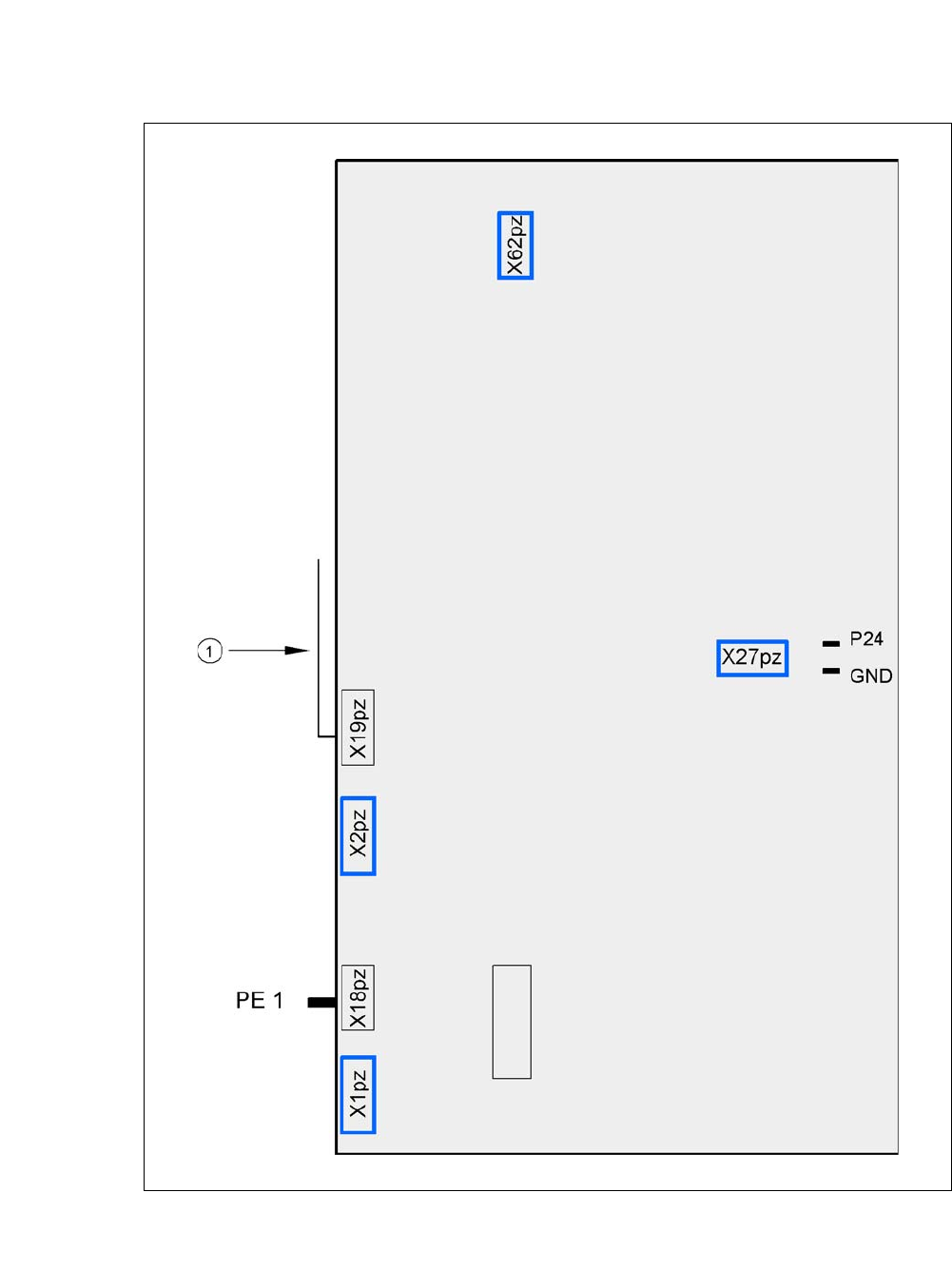

Fig. 5.5 - 20 Computer unit, front - connecting plugs
(1) Cable guide plate
User Manual SIPLACE CA-Series 5 Setting up and Commissioning
From software version SC.708.0 Edition 12/2014 EN -DRAFT 5.5 Setting Up the Placement Machine
315
5
Fig. 5.5 - 21 Computer unit, back - connecting plugs
(1) Cable guide plate
Fan
Battery
+3.6V
5 Setting up and Commissioning User Manual SIPLACE CA-Series
5.5 Setting Up the Placement Machine From software version SC.708.0 Edition 12/2014 EN -DRAFT
316
5.5.12.2 Computer Unit for CA4 - Press-Fit Connections on the Front
5
Also check the following plug-in connectors:
5
Computer unit, front
(fig. 5.5 - 20
)
Plug
Connection cable Please note
Plug Cable
X0pr
*a
X0pr 03009778 Insert as far as the stop
X1pr
a
X1pr 03009838 Insert as far as the stop
X2pr
a
X2pr 03009755 Insert as far as the stop
X3pr
a
X3pr 03009756 Insert as far as the stop
X8pc X8pc 03002970 Secure with screws
X7pc X7pc 03002967 Secure with screws
X5pc X5pc 03002958 + 03002959 Insert as far as the stop
X7pn X7pn 03010055 Secure with screws
X0ps
a
X0ps 03009798 Insert as far as the stop
X1ps
a
X1ps 03009818 Insert as far as the stop
X2ps
a
X2ps 03009757 Insert as far as the stop
X3ps
a
X3ps 03009758 Insert as far as the stop
*)a This plug is intended for cameras.
Computer unit,
front
(fig. 5.5 - 20
)
Plug
Connection cable Computer unit, front
(fig. 5.5 - 20
)
Plug
Plug Cable Plug
X1pe X1pe 03010623 X11pt X11pt
*a
X3pe X3pe 03010623 X11pc X11pc
X4pe X4pe 03010623 X11pa X11pa
X1pv X1pv 03010615 X4pa X4pa
X2pv X2pv 03010615 X4pc X4pc
X3pv X3pv 03010619 X4pt X4pt
a
*)aOnly if vision processor option is installed
