6 Working with the Machine User Manual SIPLACE CA-Series 6.9 LCD and Status Displays on the X Feeder Module From software version SC.708.0 Edition 12/2014 EN -DRAFT 380 6.9.1 W arnings 6 6 6.9.2 Error Messag es and T rou…

User Manual SIPLACE CA-Series 6 Working with the Machine

From software version SC.708.0 Edition 12/2014 EN -DRAFT 6.8 Setting Up the X Feeder Module

379

6.8 Setting Up the X Feeder Module

The configuration of the X feeder modules is described in the relevant job guide.

6.9 LCD and Status Displays on the X Feeder Module

The X feeder modules have a multicolor status display (item 6) for signaling the operating statuses

and an LCD display (item 1) to display the texts.

– If the status display lights up green, the feeder module is on standby and is contained in

the current setup. If the feeder module is not contained in the current setup, the status

display remains off.

– If the status display lights up orange, it is signaling a warning. The text of the warning

appears on the LCD display.

– If the status display lights up red, a malfunction has occurred. The error message is is-

sued on the LCD display.

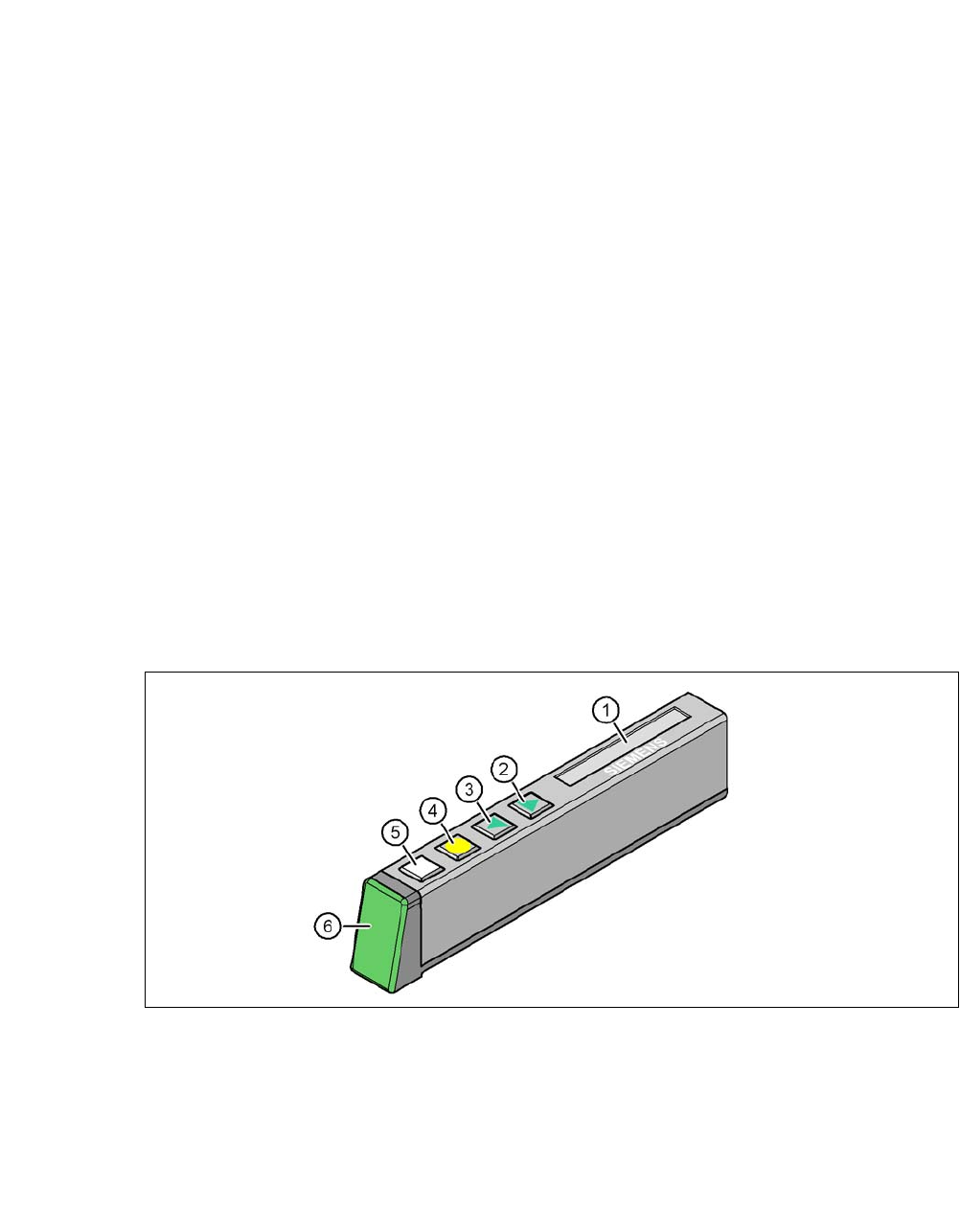

Fig. 6.9 - 1 Buttons, LCD and status displays on the X feeder module

The following tables contain the wording of the LCD display, the color and the mode of the status

display, its meaning and troubleshooting measures.

(1) LCD display (2) FORWARD button

(3) BACK button (4) FOIL button

(5) SET button (6) Status display, multicolor

6 Working with the Machine User Manual SIPLACE CA-Series

6.9 LCD and Status Displays on the X Feeder Module From software version SC.708.0 Edition 12/2014 EN -DRAFT

380

6.9.1 Warnings

6.9.2 Error Messages and Troubleshooting

Text on the

LCD display

Status

display

Meaning Solution

Remove Foil

(Remove the foil)

Orange The selected function is not

permitted when the cover foil

is tensioned (foil rocker is

pressed down).

If you wish to carry out that function, remove

the foil from the pair of gear wheels and cut

it off to relieve the pressure on the foil rocker.

Text on the

LCD display

Status

display

Meaning Solution

None Red,

flashing

Feeder module software not

jumping to the application

Reload the application software

Load feeder module software

Handle --->>

(Handle --->>)

Red Feeder module was sig-

naled, but removal handle is

not yet pushed in

Push in the removal handle

Low Voltage

(Low voltage)

Orange 24V supply voltage did not

rise above the switch-on

threshold after switching on

Check the power supply

Low Voltage

(Low voltage)

Red 24V supply voltage rose

above the switch-on thresh-

old after switching on and

was then interrupted

Check the power supply

Feed Timeout

TransTimeout

(Timeout in tape

feeder cycle)

Red Tape feeder cycle did not

end correctly within the spec-

ified time (timeout for the

"Feed" function)

Is the tape reel jammed in the container?

Is there a component jammed in the pick-up

area between component tape and compo-

nent window?

Once the obstacle has been eliminated, use

the arrow keys to restart the conveyor. The

feeder module will move the defective con-

veyor to the end, and then returned to its

position

Foil Torn

(Foil torn)

Red Foil was not tensioned within

the specified time

The foil is probably torn. Insert new foil and

tension

Foil PeelErr

(Error while peel-

ing off the foil)

Red Foil was not peeled off even

though the tape is moved

The cover foil is probably jammed beneath

the pick-up window and cannot be peeled

off correctly

User Manual SIPLACE CA-Series 6 Working with the Machine

From software version SC.708.0 Edition 12/2014 EN -DRAFT 6.9 LCD and Status Displays on the X Feeder Module

381

Foil Jam

(Foil jam)

Red Foil motor has locked up Leveling gears blocked by foil? => Remove

the foil

EEP-WriteErr

(Error while back-

ing up data in the

EEPROM)

Red The data back-up in the EE-

PROM was not carried out

correctly

Remove the component tape (tape can be

moved out by pressing the arrow keys or

pulled out after raising the pick-up window).

Press the SET button to confirm the error.

Then press the yellow button to confirm the

reference run prompt.

EEP-ReadErr

(Error while read-

ing the

EEPROMS)

Red Data was not read from the

EEPROM correctly

EEP-DataErr

(Error while back-

ing up the data in

the EEPROM)

Red The data back-up in the EE-

PROM was not carried out

fully

Reference o

Red Position information is no

longer available for the com-

ponent tape drive

Remove the component tape (tape can be

moved out by pressing the arrow keys or

pulled out after raising the pick-up window).

Then press the "FOIL" button to start the

reference run.

CAN BusError

(CAN bus error)

Red CAN bus error Log off and on again, check the optical fiber

interface

ParNotSaved! Red Parameters were not saved Default parameters are loaded automatical-

ly, i.e. the most recent operator settings are

overwritten -> The settings (e.g. increment)

will have to be made again. Replace the

control board if this error occurs frequently.

ParWrongSave Red Wrong or incomplete param-

eters were saved

BootFlashErr

FlashDataErr

Red Can no longer write to boot

or application memory cor-

rectly

Replace the feeder module or control board

PLEASE NOTE

 Remove the component tape before a reference run.

Text on the

LCD display

Status

display

Meaning Solution
