2 Operational Safety User Manual SIPLACE CA- Series 2.2 Warning Labels on the Placement Machine From software version SC.708.0 Edition 12/2014 EN -DR AFT 60 2.2.1 1 "Head crash" label on the IC camera of the T …
User Manual SIPLACE CA-Series 2 Operational Safety
From software version SC.708.0 Edition 12/2014 EN -DRAFT 2.2 Warning Labels on the Placement Machine
59
2.2.10 Warning Label W209 on the EMERGENCY STOP Buttons
2
W209 in fig. 2.2 - 13 [03009349-01] (quantity per machine: 2)
2
2
Fig. 2.2 - 13 Warning label W209 on the EMERGENCY STOP buttons
Item W209 [03009349-01]
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
For Australia, Canada, Mexico and USA, warn-
ing label W209 is affixed to the extension kit in-
stead of the yellow ring on the EMERGENCY
STOP buttons.
2 Operational Safety User Manual SIPLACE CA-Series
2.2 Warning Labels on the Placement Machine From software version SC.708.0 Edition 12/2014 EN -DRAFT
60
2.2.11 "Head crash" label on the IC camera of the TwinHead
"Head crash" label in fig. 2.2 - 14 [03015392-02] (quantity per machine: maximum 4)
2

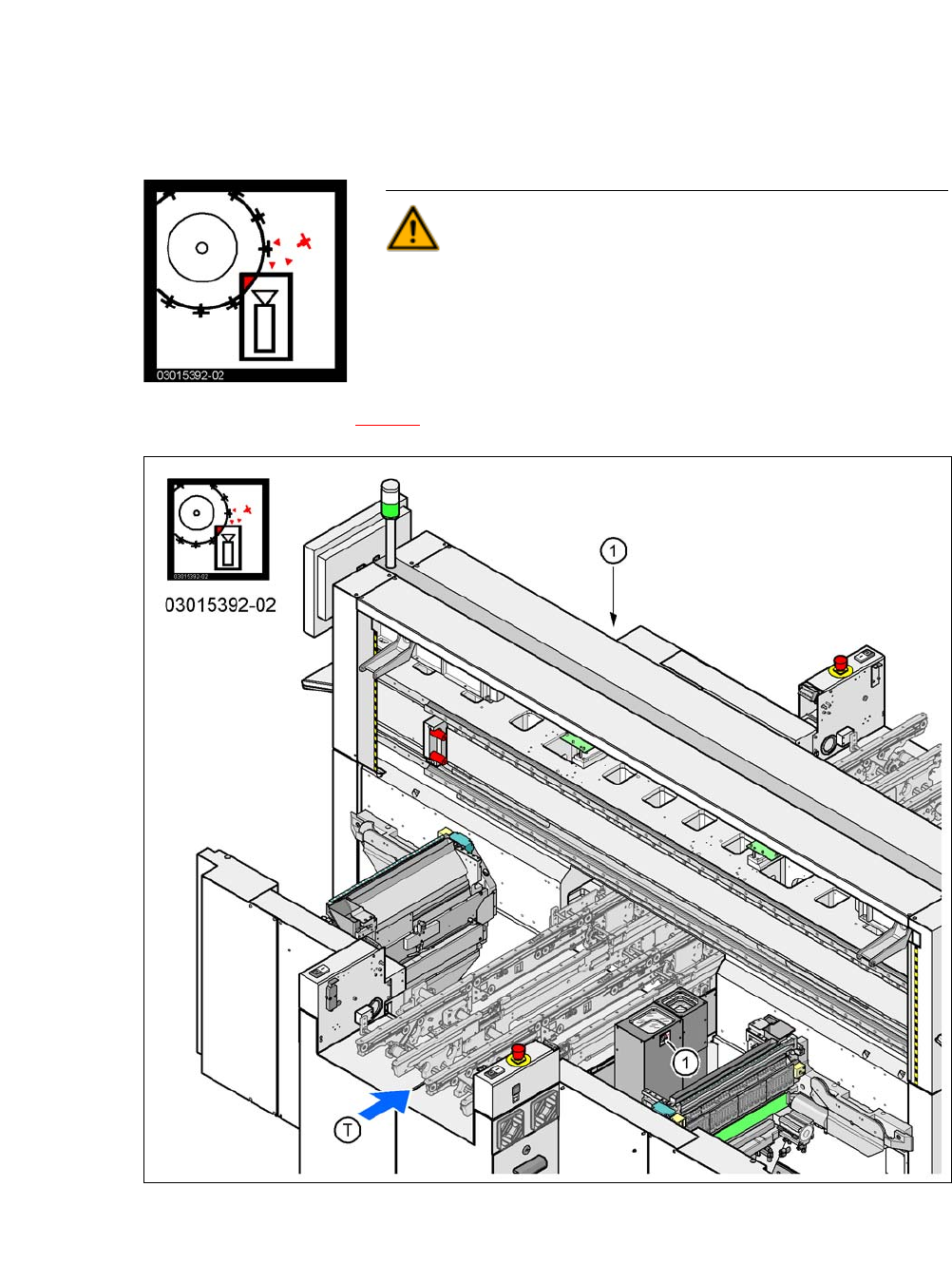

Fig. 2.2 - 14 "Head crash" label on the IC camera of the TwinHead
(1) "Head crash" label on the IC camera of the TwinHead
WARNING RISK OF HEAD CRASH 2
During a placement head changeover from a TwinHead to a Col-
lect&Place head,the Collect&Place head collides with the camera
housing. Dismantle the stationary component cameras (stationary
P&P, type 33, 55 x 45, and type 25, 16 x 16) for the TwinHead.
User Manual SIPLACE CA-Series 2 Operational Safety
From software version SC.708.0 Edition 12/2014 EN -DRAFT 2.3 Warning Labels on the SWS
61
2.3 Warning Labels on the SWS
The warning labels are made from soft PVC film, and are abrasion-proof, light-fast and resistant
to water and weathering. Their design meets the requirements of ISO 3864-2 and ANSI Z535.4.2
2
2.3.1 Warning Label W204 on the Wafer Support

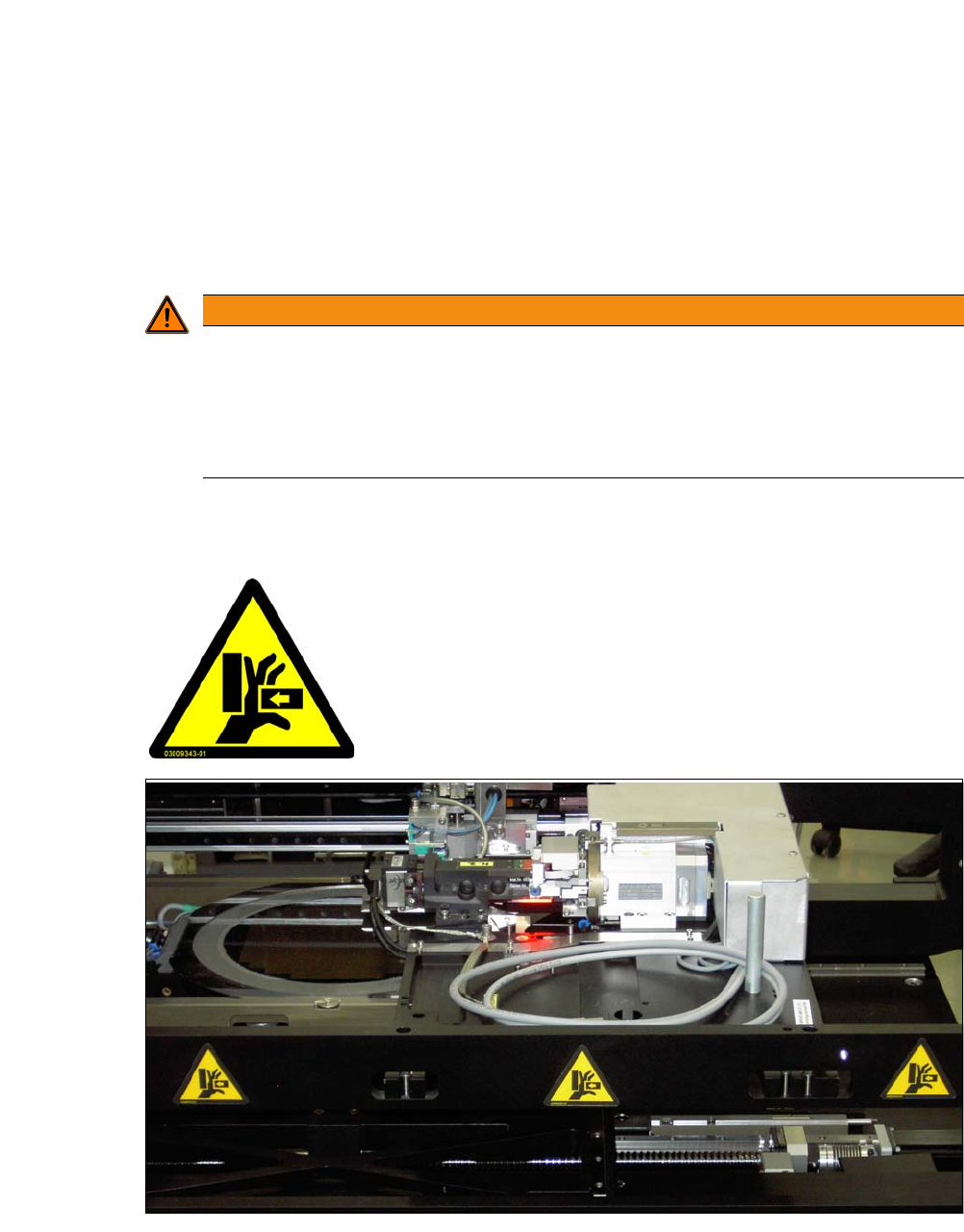

Fig. 2.3 - 1 Warning label W204 danger of crushing on the gap in the side panel
WARNING
Damage to warning labels!
The warning labels can be damaged or destroyed by abrasive cleaning agents or sol-
vents.
Do not use abrasive cleaners or solvents for cleaning warning labels.
Replace any damaged or illegible warning labels.
2
2
2
DANGER OF CRUSHING!
Reaching in here could lead to injuries to the arms and hands.
Do not reach into the machine while it is running
