2. Operation screen and buttons
2-13
Chapter 2 Basic operation
7. Capture button
Captures the displayed image. The captured data (JPEG format) is stored in the D:\ScreenShot folder
(maximum folder size: approx. 10MB), with a file name consisting of the date and time.
When a USB flash memory is inserted into the machine’s USB port and system backup is performed, a
“ScreenShot” folder is created in the root of the USB flash memory to acquire the captured data stored
in the machine. (The captured data stored in the machine is moved to the USB flash memory.)
c
CAUTION
• When saving data in a USB flash memory, make sure to use the USB flash memory designated by YAMAHA.
• If you specify the destination to save the data on the “Screen Shot Setting” window (Press the [Setup] – [Software
Setting] – [Information] – [Screen Shot Setting] buttons), the captured data cannot be saved in the USB flash memory
even by performing System backup.
►
About error screen

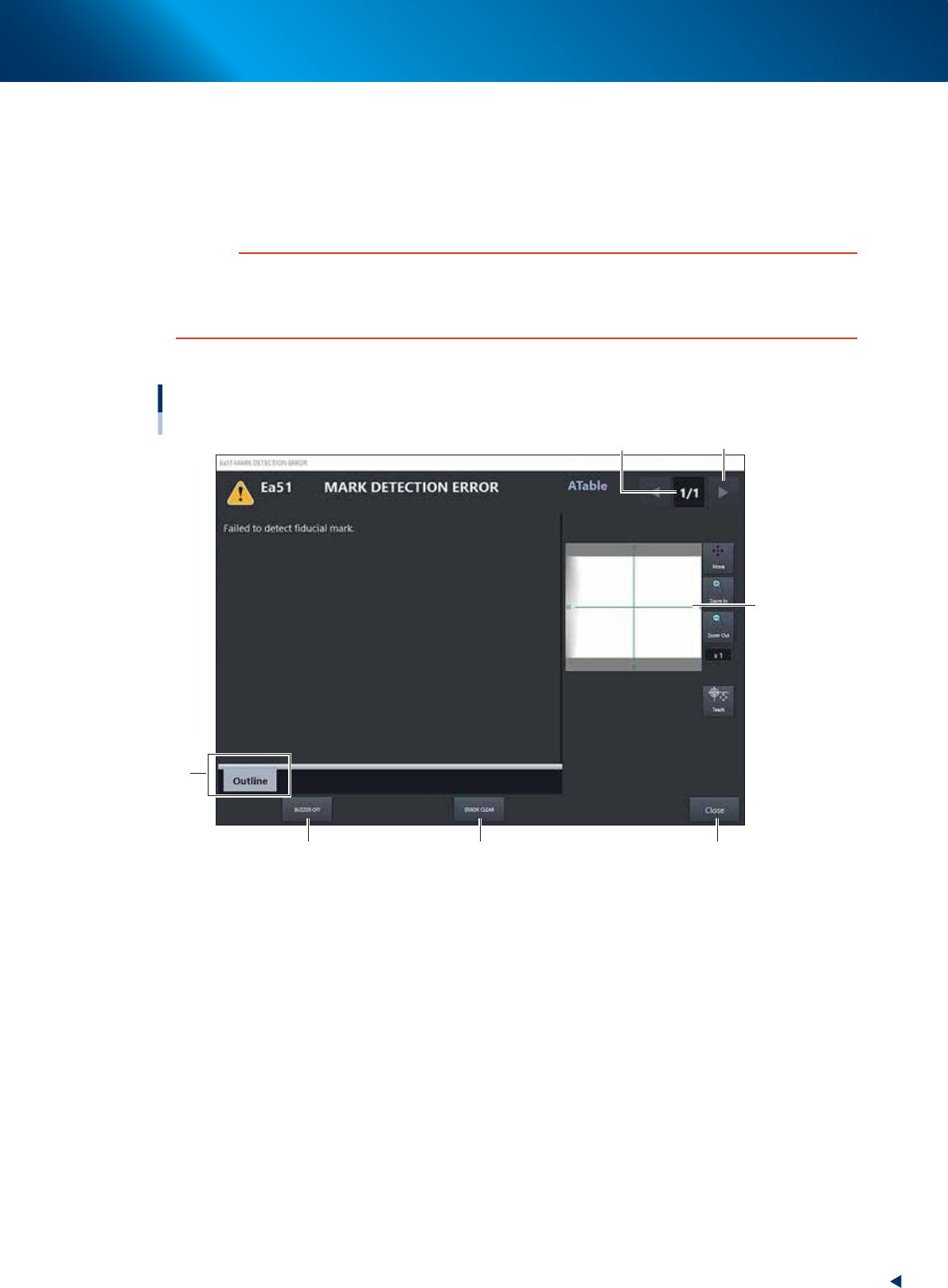

Constitution of error screen
Mark detection error
1
2
3
6
4 5
[Error Switching] button
24203-KMX-00
1. Error count display
Shows the currently displayed error and the total number of errors. If two or more errors occurred,
use the [Error Switching] buttons (right/left arrow buttons) to switch to other error screens.
2. Message switching tab
• Outline
Displays a message for the operator.
• Detail
Displays a message for the administrator/supervisor or service personnel. This tab does not appear
unless a message is available.
3. Recognition image display (component pickup error and mark recognition error screens)
If an error has occurred in image processing during component pickup or mark recognition, the error
image is displayed here.
2. Operation screen and buttons
2-14
Chapter 2 Basic operation
4. [BUZZER OFF]
Turns off the buzzer.
5. [ERROR CLEAR]
Clears the error that has occurred.
6. [Close] button
Closes the error screen without clearing the error.
TIP
The positions where errors occurred can be checked graphically by opening the [Monitor] - [Production] tab after closing
the error screen by pressing the [Close] button. Pressing the [Error Detail] button on the [Production] screen redisplays the
error message. See"3.1 Production" in this chapter for the [Production] screen.
2. Operation screen and buttons
2-15
Chapter 2 Basic operation
2.2 Setup screen
This section describes the operation buttons displayed on the "Setup" screen.

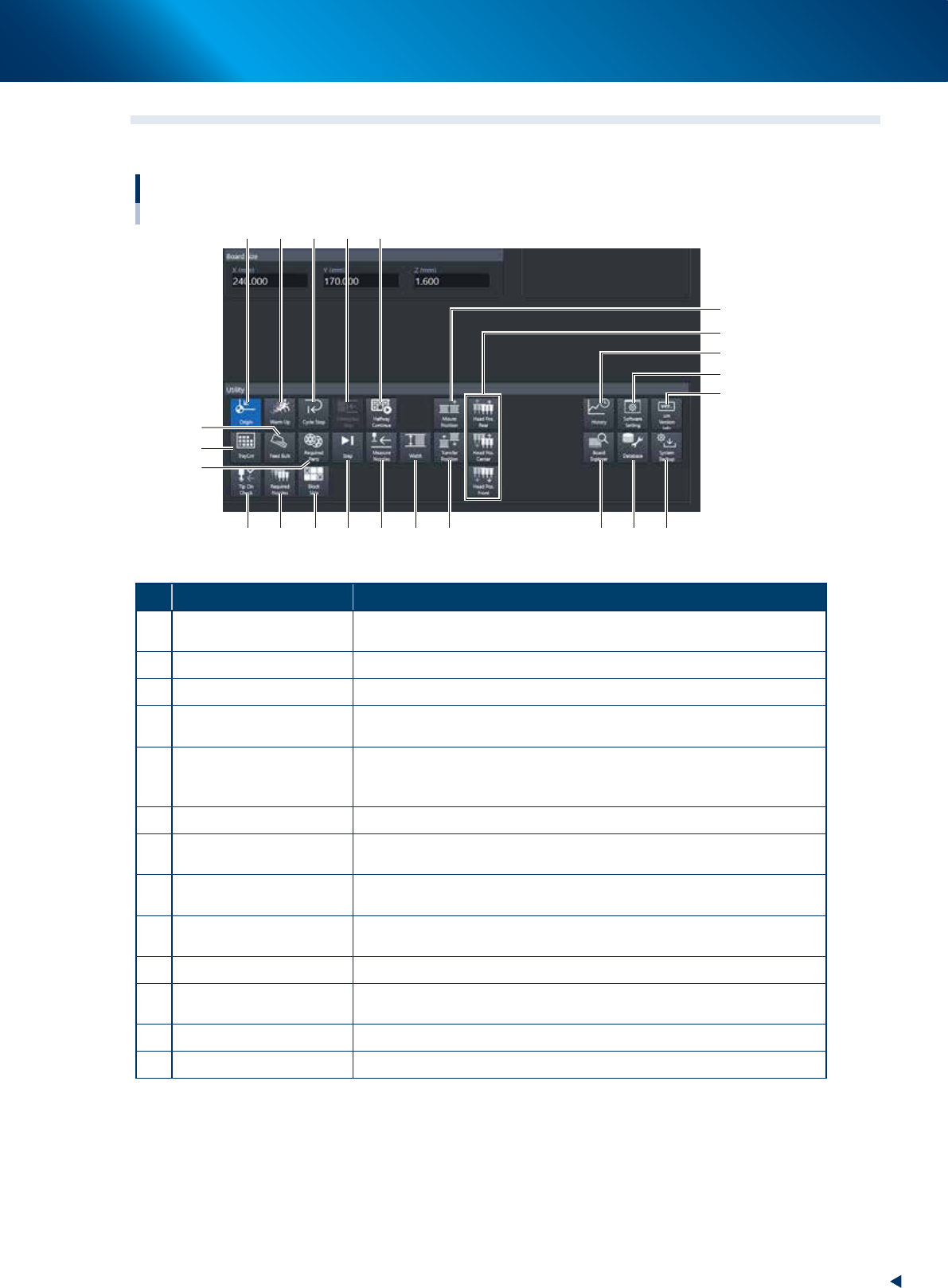

Setup screen
18
19
20
23
2221
3 4
9 10
11
16
8
12
7
6
15
17
51 2
13 14
24204-KMX-00
Button name Function
1 Origin
Move all the axes other than the W-axis of the machine to their respective
origins.
2 Warm Up Warms up the machine. Specifying the desired time is available.
3 Cycle Stop Stops the machine without flowing a mounted board to downstream.
4 Convey-out Stop
Stops machine operation after mounting components on all boards on the
conveyor and transferring them to the downstream machine.
5 Halfway Continue
Resumes mounting components on the board that reset the suspended
machine operation due to an error. See chapter 3, "1.12 Resuming
operation from the stopped point" for more details.
6 Tray Cnt Displays the number of tray components that have been used.
7 Feed Bulk
This button is operable only when using the bulk feeder (custom-made). It
is not used in normal operation.
8 Required Parts
Displays the component types and feeder positions that are set up for the
production to be started.
9 Step
Temporarily stops the machine at a specific position, for example, during
initial component mounting, test mounting, or trouble analysis.
10 Measure Nozzles The scan camera (side view camera) acquires the nozzle shape.
11 Width
Aligns the conveyor width with the board surface for production. It is the
same function as the [Width] button of the [Unit] – [Conveyor] screen.
12 Tip Cln Check Checks if nozzle tips are dirty or clogged.
13 Required Nozzles Displays a list of nozzles to be used.
