1. Flow from starting up machine to production 3-23 Chapter 3 Flow from starting up machine to production 3 Open the “CHECK NOZZLES” screen. Press the [Tip Cln Check] button on the “Se tup” screen, t hen the “CHECK NOZZL…
1. Flow from starting up machine to production
3-22
Chapter 3 Flow from starting up machine to production
1.8 Confirming nozzles
Confirm the nozzles before starting the production. This procedure description in this section assumes that
the board data to be used for production has been read out. Note that Steps 1 and 2 are not necessary where
the setting is such that all the heads go through the automatic nozzle changing process.
1
Open the “Required Nozzles” screen.
Press the [Required Nozzles] button on the “Setup” screen, then the “Required Nozzles” screen
appears.
2
Confirm the nozzle types.
If the machine is not equipped with the nozzle station or the machine has a head that does not go
through the automatic nozzle changing process, the types of nozzles appear on the “Nozzle Type”
list. Confirm that these nozzles in the list match the nozzles that are currently attached on the heads.
Note that this process is not necessary if set to “AUTO”.

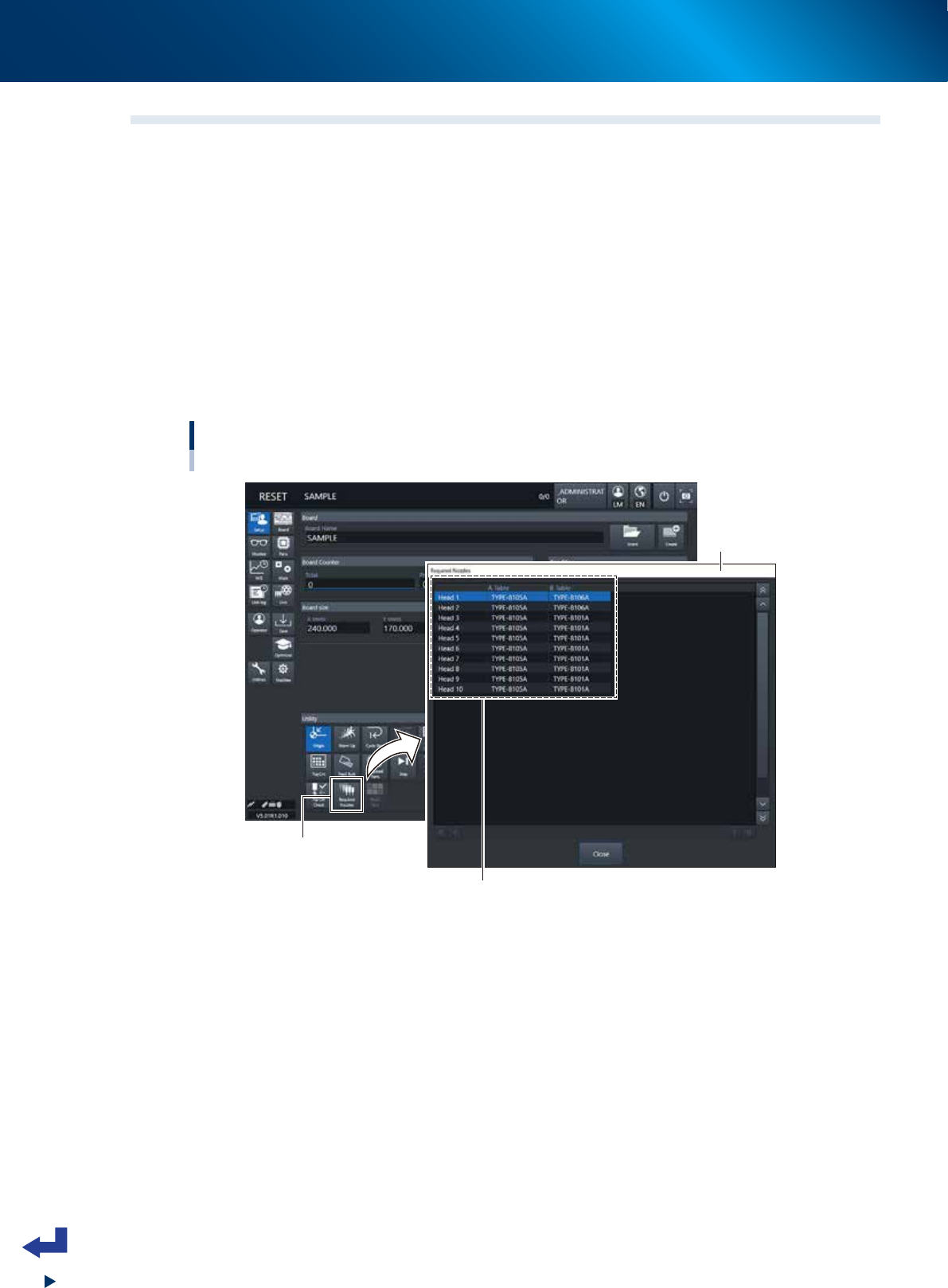

Confirming the nozzle types
[Setup] screen - “Required Nozzles” screen
[Required Nozzles] button
Confirm that these nozzles in the list match the nozzles
that are currently attached on the heads.
* This process can be skipped if set to “AUTO”.
“Required Nozzles”
screen
24313-KMX-00
1. Flow from starting up machine to production
3-23
Chapter 3 Flow from starting up machine to production
3
Open the “CHECK NOZZLES” screen.
Press the [Tip Cln Check] button on the “Setup” screen, then the “CHECK NOZZLES” screen appears.
4
Check the cleanness on the nozzle tips.
Check the contents on the “CHECK NOZZLES” screen and then select any of the following buttons.
[Yes] : Automatic nozzle change process takes place to confirm all the object nozzles to be
checked.
[No] : Of the nozzles currently attached to the heads, only the nozzles to be checked are
confirmed.
[Cancel] : Cancel the operation.
n
NOTE
The “Nozzle Tip Cleanness Check” is a function that the camera views the nozzle tips without components to judge the
nozzle cleanness. Since the camera recognizes the reflection of light coming from solder deposited around the nozzle tips,
the camera works for small tip nozzles such as 8103A, 8104A, 8105A, 8106A, 8107A, 8108A, 8004H, 8006H and
the like.
]

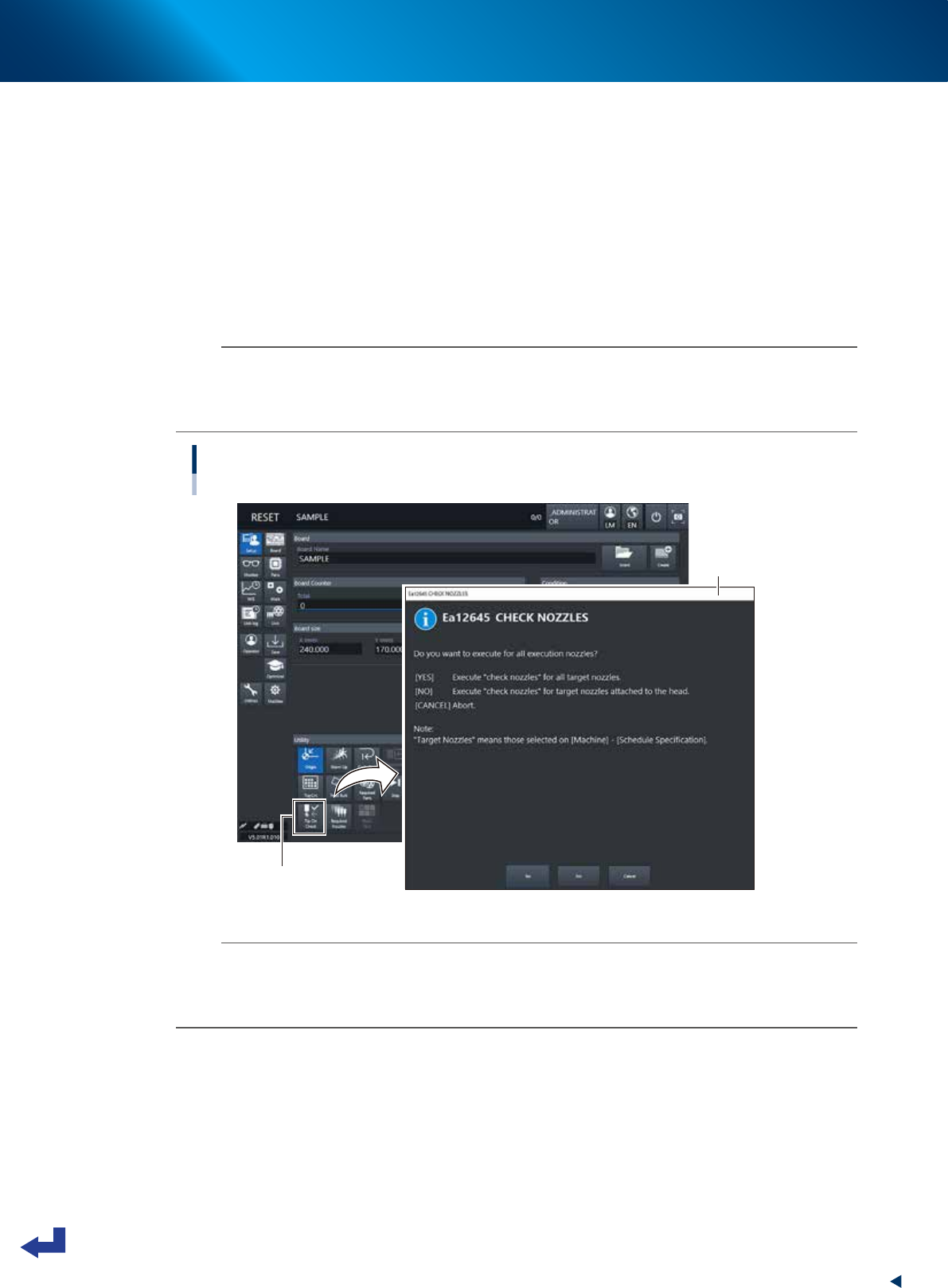

Nozzle Tip Cleanness Check
[Setup] - “CHECK NOZZLES” screen
[Tip Cln Check] button
“CHECK NOZZLES”
screen
24314-KMX-00
n
NOTE
• The “Nozzle Tip Cleanness Check” is available if it is specified on the "Machine setting".
• Since dirt deposits gradually, the check may turn out to be OK or NG if checking a few times at the initial stage of
accumulating dirt.
• It is recommended to clean the nozzles periodically. See the maintenance manual, chapter 3, "1.2 Nozzle cleaning".
1. Flow from starting up machine to production
3-24
Chapter 3 Flow from starting up machine to production
█
“Setting the Nozzle Tip Cleanliness Check”
The following describes how to set the “Nozzle Tip Cleanliness Check”.
1
Press the [Machine] button.
The “VmSpec” screen appears.
2
Select the “Schedule Specification”.
Select the “Schedule Specification” on the left side of the "VmSpec" screen.
n
NOTE
The “Nozzle Tip Cleanliness Check” is a machine setting items. Accessing such parameters requires the administrator level
of authority.

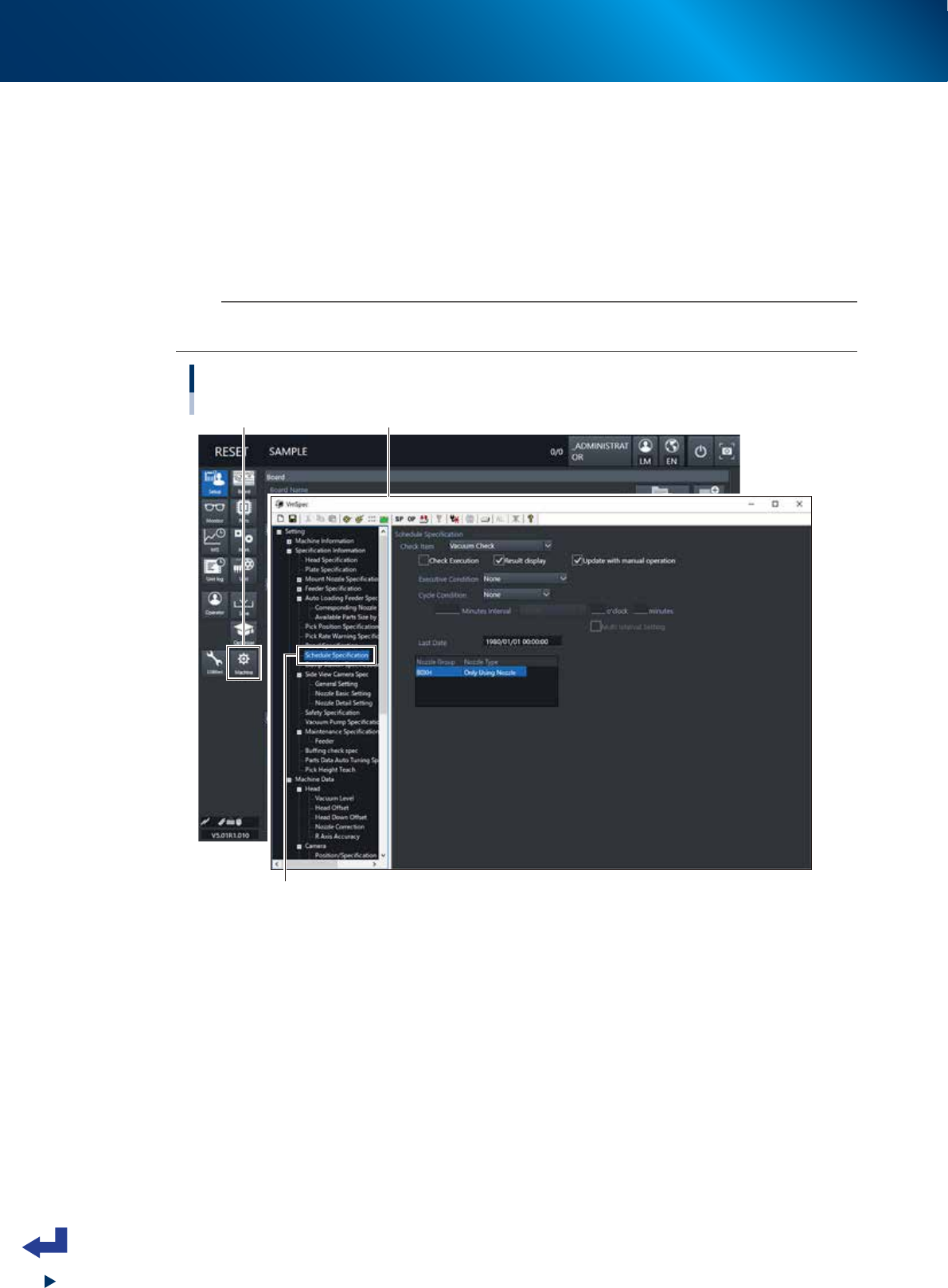

Calling up “VmSpec” – “Schedule Specification” screen
[Machine] button
“VmSpec” screen
Select “Schedule Specification”.
24315-KMX-00
