1. Flow from starting up machine to production
3-3
Chapter 3 Flow from starting up machine to production
1.2 Starting the machine
Proceed as follows to start the machine.
w
WARNING
THE SIGNAL LIGHT LIGHTS UP WHEN THE MACHINE STARTS UP THE OPERATION.
THE GREEN LAMP IS ON DURING OPERATION. THE YELLOW LAMP LIGHTS UP WHEN AN ERROR OR INTERLOCK
OCCURS, AND THE RED (OR WHITE) LAMP LIGHTS UP WHEN EMERGENCY STOP IS TRIGGERED.
NEVER PLACE ANY PART OF THE BODY IN THE HEAD MOVEMENT RANGE WHILE THE GREEN LAMP IS ON.
1

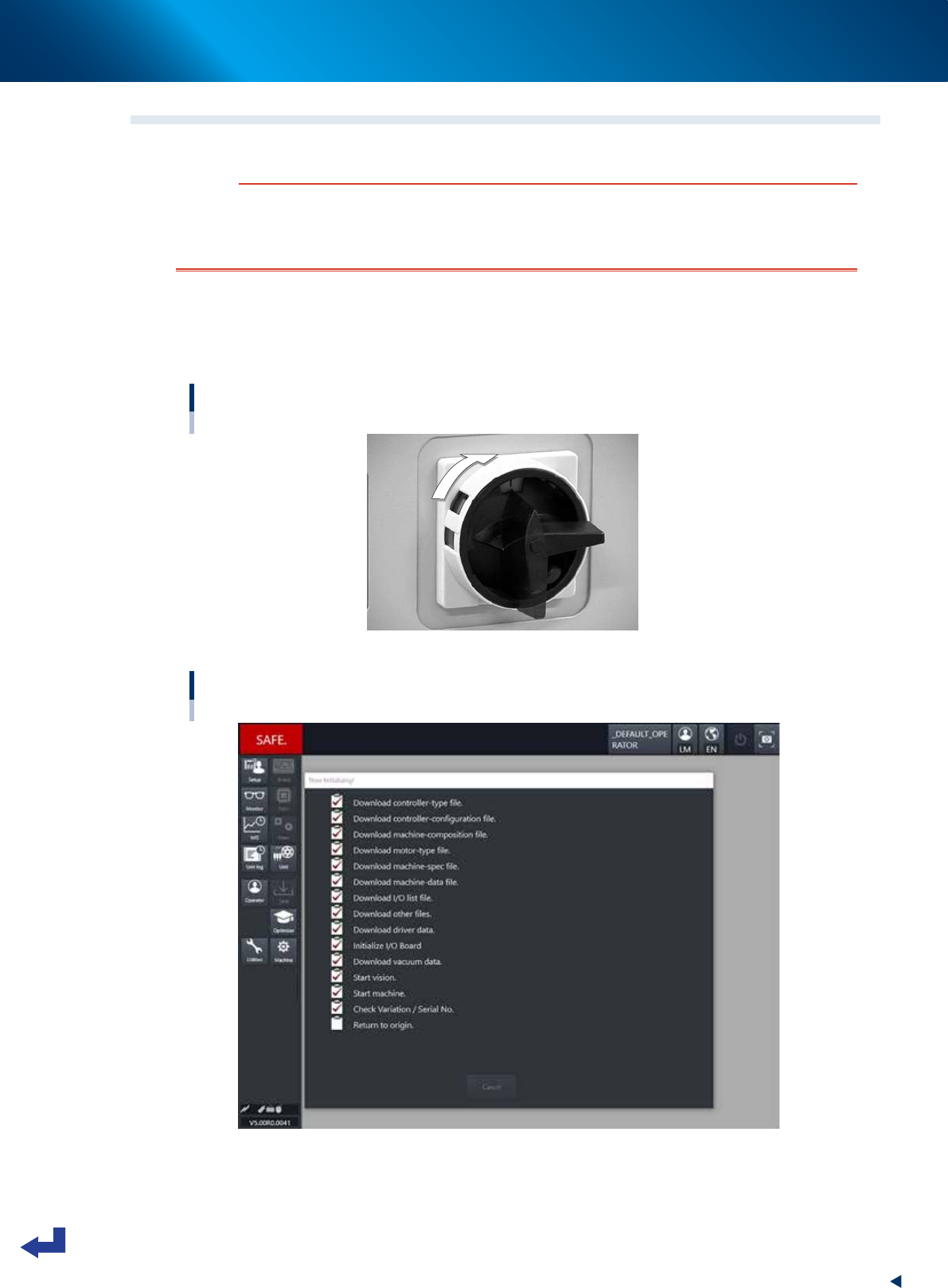

Turn the main switch ON.
Turn on the main switch at the front lower right of the machine, by turning it to the right. After the
system has started, the Initialization screen appears and the program necessary for machine
operation is loaded.
Main switch
ON
OFF
23301-KMX-00
Initialization screen
24300-KMX-00
1. Flow from starting up machine to production
3-4
Chapter 3 Flow from starting up machine to production
2
Set the carriage to the machine.
Before performing return-to-origin, set the carriage to the mounter, referring chapter 2, "4.1.3
Attaching the feeder exchange carriage on the mounter".
3
Perform return-to-origin.
The “Return to origin” screen appears on the display. Press the [Ready] button and then follow the
instructions on the screen to perform return-to-origin.
n
NOTE
If the machine is not yet ready for return-to-origin operation, the return-to-origin operation on the setup screen can be
performed before going through the procedure according to "1.4 Warming up the machine" in this chapter.
1. Flow from starting up machine to production
3-5
Chapter 3 Flow from starting up machine to production
1.3 Selecting the operator
Assign the operator who operates the machine.
Normally, register the operator names and operation authorities (and passwords, if necessary) in advance
and select the operator from those registered.
At the time of shipping, two operators or operator groups were registered - The “Administrator” (“A group of
administrators)” who have all the complete operation authorities and the “Default operator” (“A group of
default operators”) who have a fewer operation authorities.
TIP
Active menu buttons differ depending on the operation level setup. For example, when the machine is turned on with the
factory setup, the program starts up at an operation level called "Default Operator". This "Default Operator" level is set to
"Level 0" at the time of shipment to allow only basic operation items. This operation level can be changed as needed.
Operators and operation items can also be added and specified by setting the password and operation level.
For more details, see “Programming Manual".
1
Press the [Operator] button.
The ID WINDOW screen appears for specifying the operator.
[Operator] button
[Operator] button
24301-KMX-00
