4. Preparing component tape
2-69
Chapter 2 Basic operation
4.1.6 Detaching the feeder exchange carriage
Detach the feeder exchange carriage from machine.
See "4.2 SS Feeder" of this chapter for the method of detaching the carriage with SS feeder from machine.
e
1
Press the emergency stop button.
2
Turn the clamp switch to the right (OFF).
Upon turning to right (OFF) the clamp switch corresponding to the detaching carriage, the clamp unit
of machine side moves up. The LED indicator of clamp switch blinks during moving up the clamp unit.
When the feeder is unclamped, the clamp switch indicator will go off.
c
CAUTION
While the clamp switch is blinking, do not touch the inside of machine or carriage.
The clamp unit moving down might pinch hands.
n
NOTE
When the emergency stop button is nott pressed, the clamp unit does not move up even the clamp switch is turned OFF.
Carriage clamp switch
Clamp switch
23225-KMX-00
3
Check that the clamp switch lamp is off.
4. Preparing component tape
2-71
Chapter 2 Basic operation

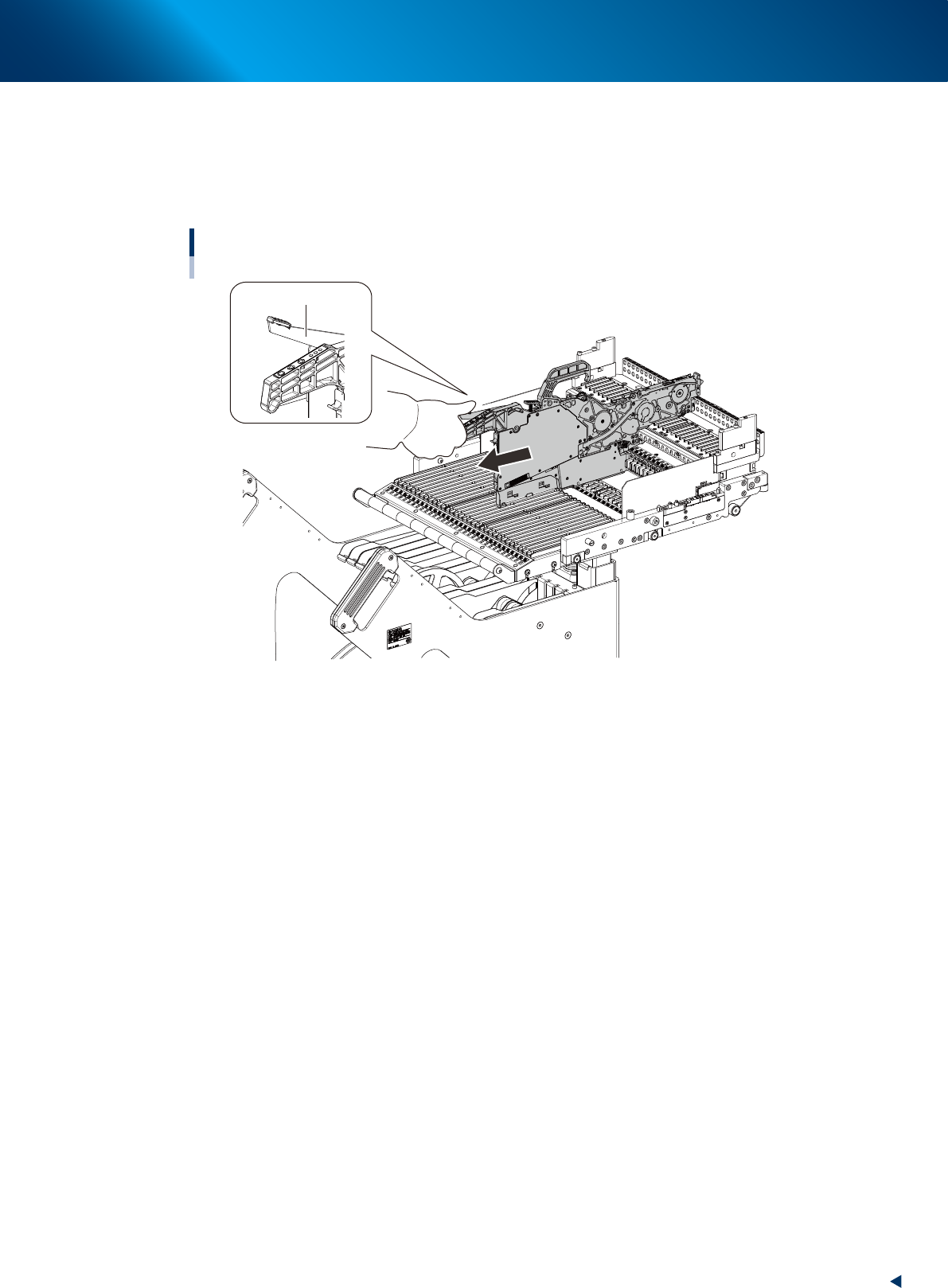

4.1.7 Detaching feeder from the feeder exchange carriage
1
Detach feeder from the carriage.
1. Grip the unclamping lever of feeder.
2. While gripping the unclamping lever, pull the feeder straight out.
Feeder exchange carriage
Detaching ZS/ZSR feeder
Unclamping lever
23227-KMX-00
2
Detach the reel from the reel holder.
