1. Machine main unit 1-1 Chapter 1 Unit names and functions 1. Machine main unit Here describes names and functions of major parts of the machine main unit (her einafter referr ed to as machine). A standard machine has t…
4.4 Non-stop feeder change 1-46
Feeder removing conditions : 1. Setting "Skip Retry" 1-48
Feeder removing conditions : 2. Pressing [Feeder Remove] button 1-49
Feeder removing conditions : 3. Setting alternative component function 1-50
5. Conveyor 1-53
5.1
Conveyor unit 1-53
5.2 Sensor layout of conveyor unit 1-55
5.3 Board position in machine by board size 1-57
6. Recognition unit 1-58
6.1 Fiducial, Scan and Side-view camera 1-58
6.2 Side-view function (Scan camera / Side-view camera) 1-60
6.3 Multi-view cameras 1-61
7. Axis configuration 1-62
7.1 Head unit axis configuration 1-62
7.1.1 RM head unit 1-62
7.1.2 HM head unit 1-63
7.2 Main axis and conveyor axis configuration 1-64

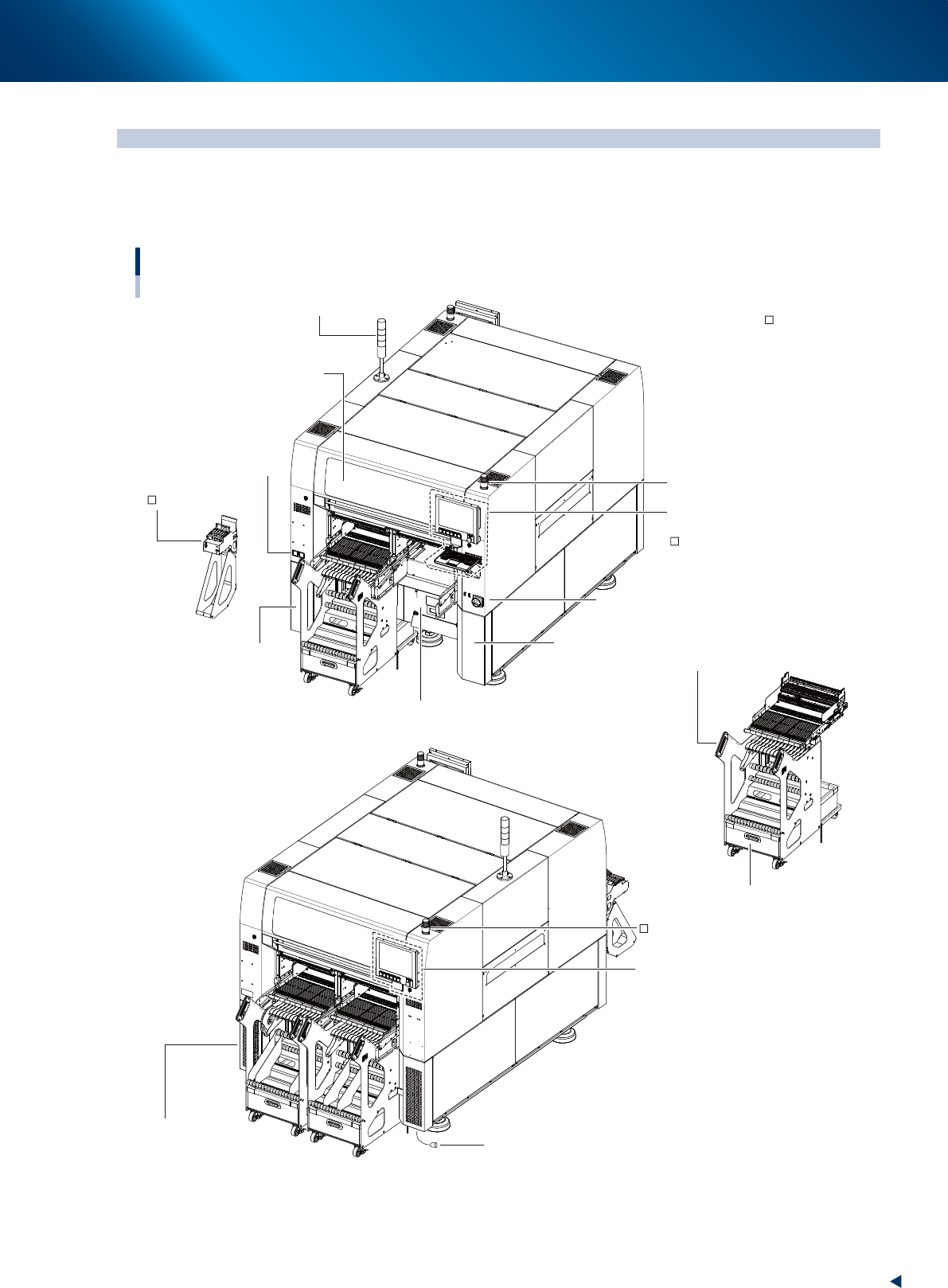

1. Machine main unit
1-1
Chapter 1 Unit names and functions
1. Machine main unit
Here describes names and functions of major parts of the machine main unit (hereinafter referred to as
machine).
A standard machine has the following configurations after installation is complete.
■ Safety cover
Front
Rear
■ Operation panel and
data input unit
Machine main unit
■ :
Standard units
: Options
Keyboard
Set-up station
Component supply indicator
■ Main switch
■ Power connection terminals
■ Feeder exchange carriage
■ Empty tape dust box
■ Tape cutter
(cover inner side)
■ Pressure gauge
■ Air connection port
■ Operation panel and
data input unit
(rear side)
■ Component supply indicator
■ Signal light
■ Connection between
machines
(panel inner side)
■ Connection between machines
23100-KMX-00
1. Machine main unit
1-2
Chapter 1 Unit names and functions
■

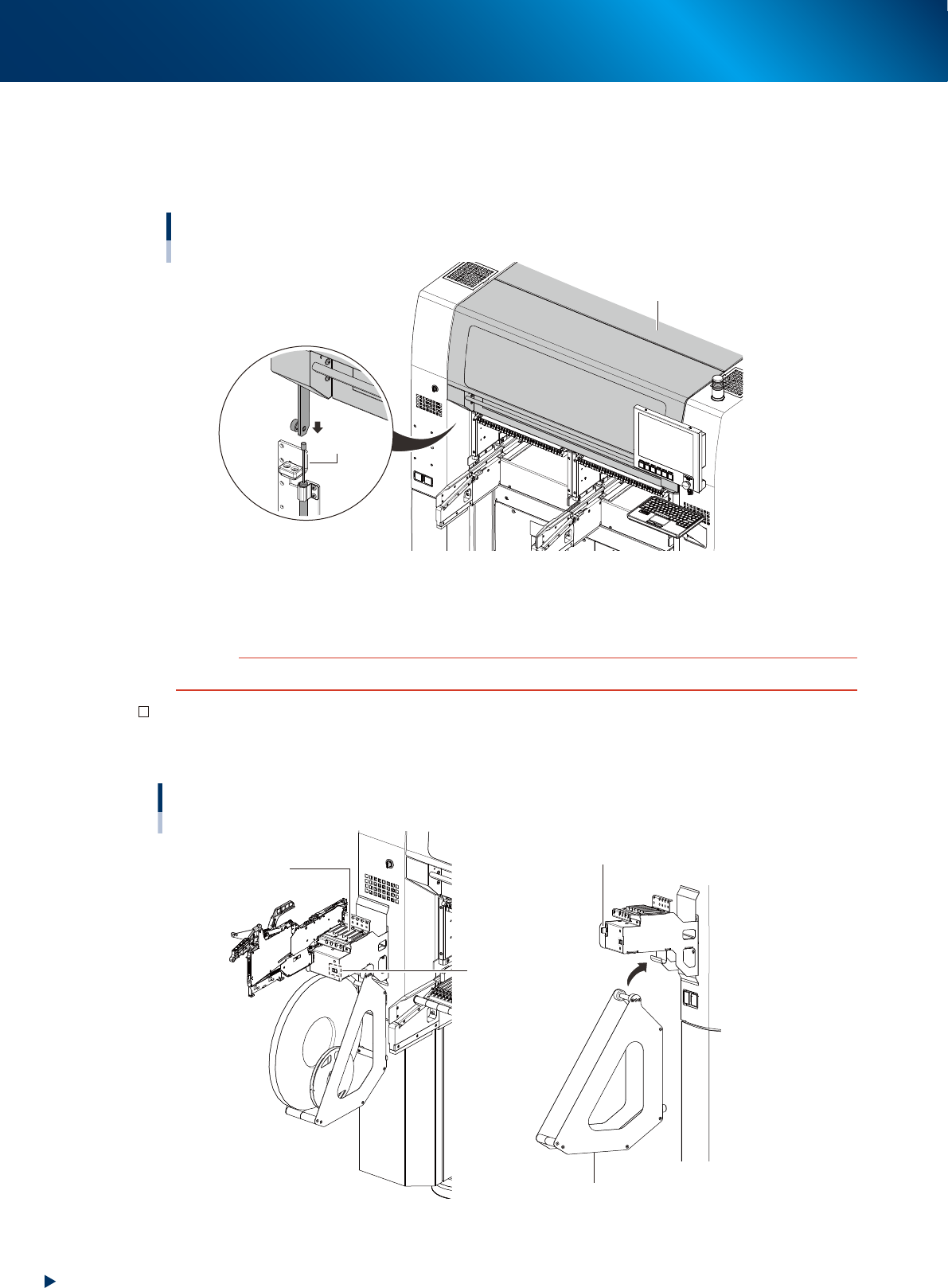

Safety cover
This cover must be closed during automatic operation. If opened, emergency stop is triggered.
The absorbers are installed on both side of safety cover and the cover closes slowly to prevent hands
from pinching. Make sure to confirm the cover closes throughly before starting automatic operation.
Safety cover
Safety cover
Absorber
23140-KMX-00
■
Main switch
Turns on or off the power to the machine. The power is on when turned to the right.
c
CAUTION
Wait about 2 seconds when powering on the machine after powered off it.
Set-up station (option)
This is used for setting component tapes in feeders.
It can be installed at front left/rear right of machine.
Set-up station
Guide rail
Display
(Pitch indication)
Tape reel holder
Power signal connector
23101-KMX-00
