4. Preparing component tape
2-50
Chapter 2 Basic operation
►
Edge delamination
12 mm, 16 mm and 24 mm tape guides can be used without passing the cover tape into the notch
of the tape guide assembly. This method is called "Edge delamination".
Generally the edge delamination has the advantages that cutting down the component waste, or
priventing scratch on component surface (caused by deformed tape guide assembly or so). Though,
as the static cling of component may cause pickup error, YAMAHA recommend "delamination in
advance" which runs tape through the notch.
TIP
The tape support plate of 32mm or larger ZS feeder does not have notch, only the edge delamination is available.

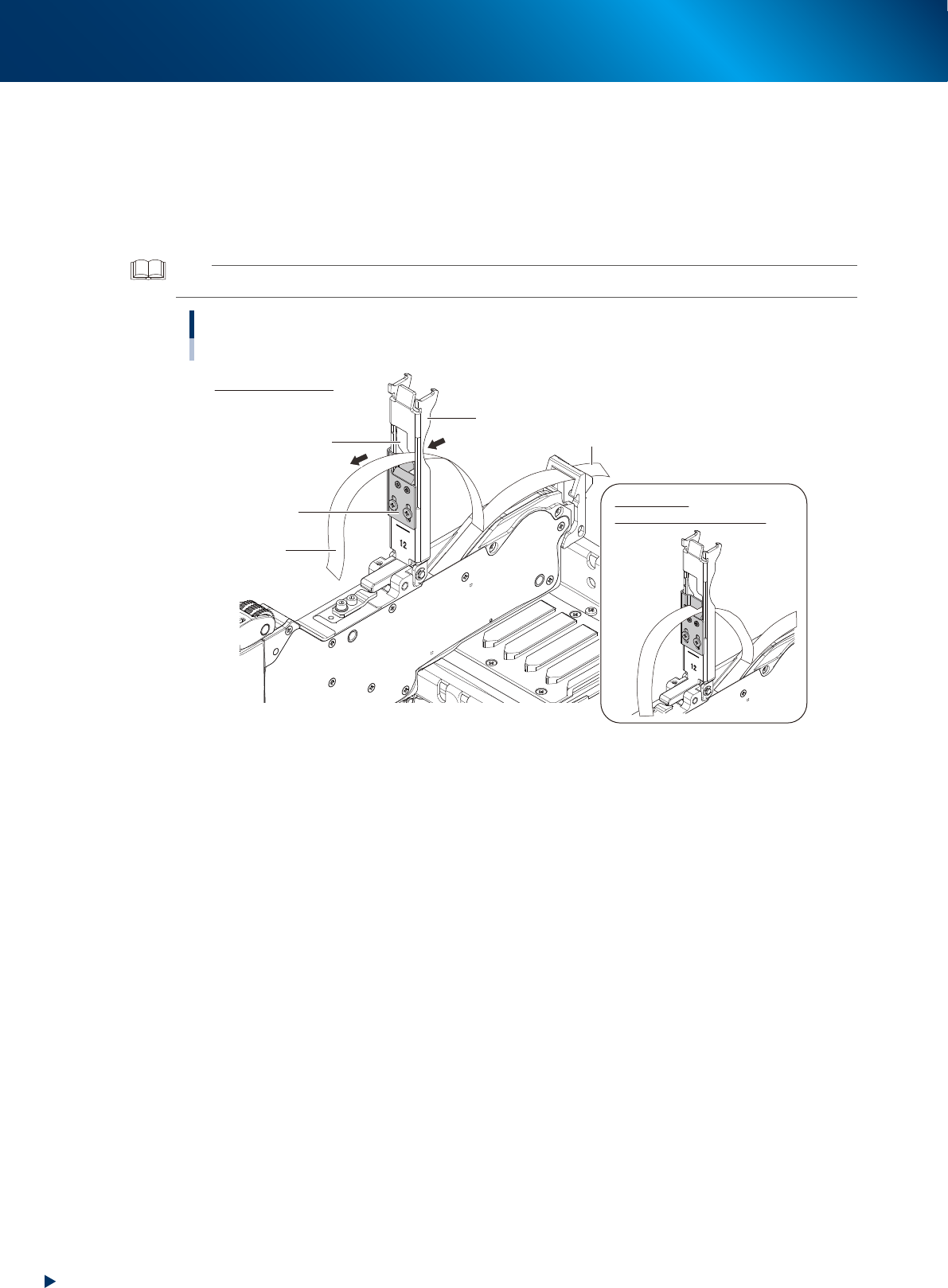

Edge delamination
12mm ZS feeder
Tape support plate
Edge delamination
Normal case
Cover tape insertion slot
Carrier tape
Tape guide assembly
Cover tape
(Delamination in advance)
23206-KMX-00
4. Preparing component tape
2-51
Chapter 2 Basic operation
7
Clamp the tape guide assembly.
While confirming that the sprocket teeth bite into the carrier tape feeding hole, push down to fix the
tape guide assembly with the tape guide front lever.
c
CAUTION
Upon clamping the tape guide assembly, the squeezing of tape guide assembly into the tape guide front lever may wear
the claw of tape guide front lever. Make sure to lift up the tape guide front lever and then engage the claws of tape guide
assembly and tape guide front lever to clamp the tape guide assembly.
Clamping the tape guide assembly
Tape guide front lever
Sprocket teeth
Cover tape
Tape guide assembly
Carrier tape feeding hole
23207-KMX-00
8
Set the cover tape in the take-up roller.
Push the portion of the take-up roller lever shown in the figure to make a clearance below the take-up
roller. Insert a certain amount of the cover tape into this clearance and release the take-up roller
lever to pinch the cover tape.

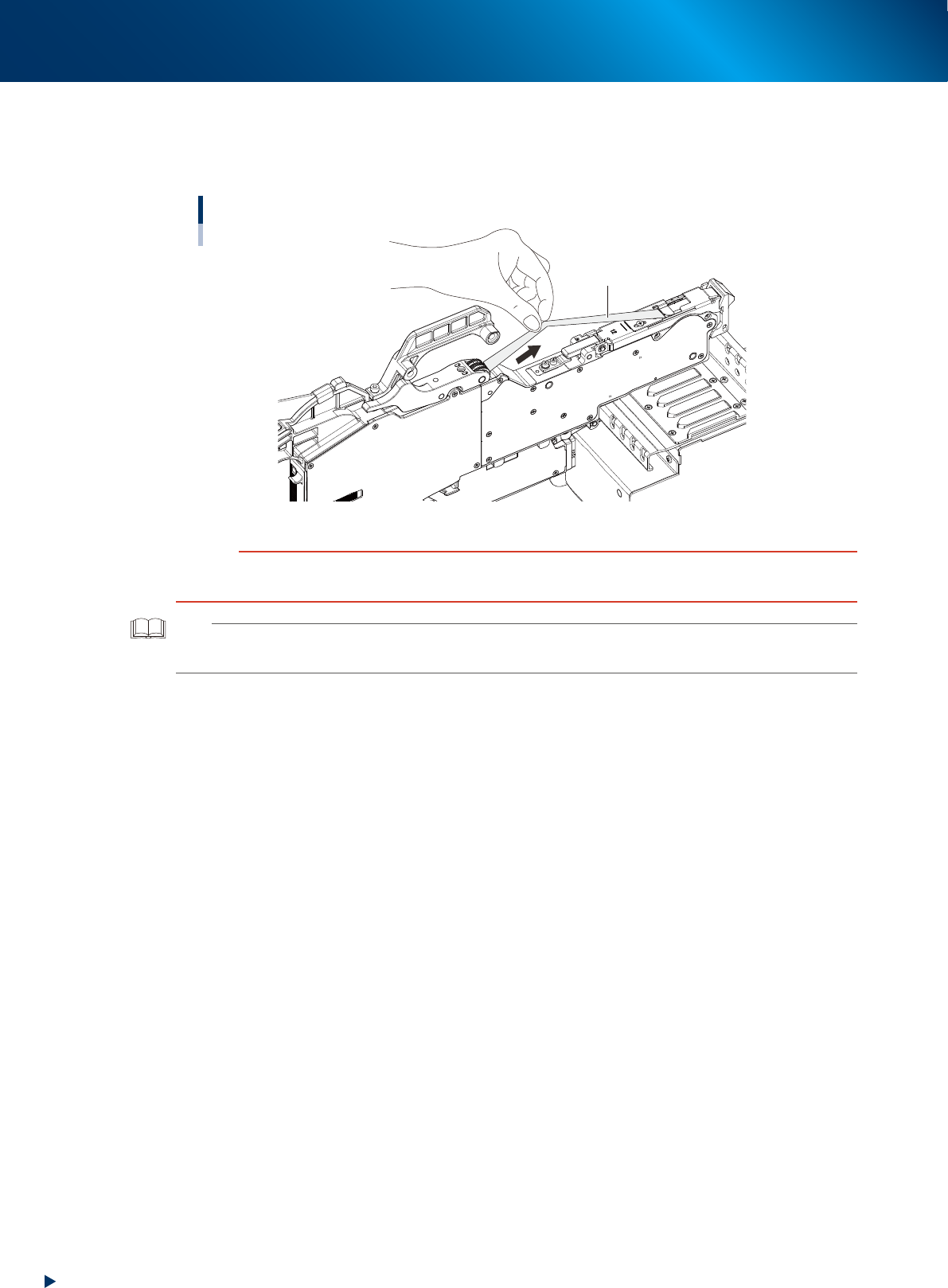

Setting the cover tape
Cover tape
Take-up roller
Take-up roller lever
23208-KMX-00
c
CAUTION
Check that the cover tape, extended between the take-up roller and the tape guide assembly, is not twisted.
4. Preparing component tape
2-52
Chapter 2 Basic operation
9

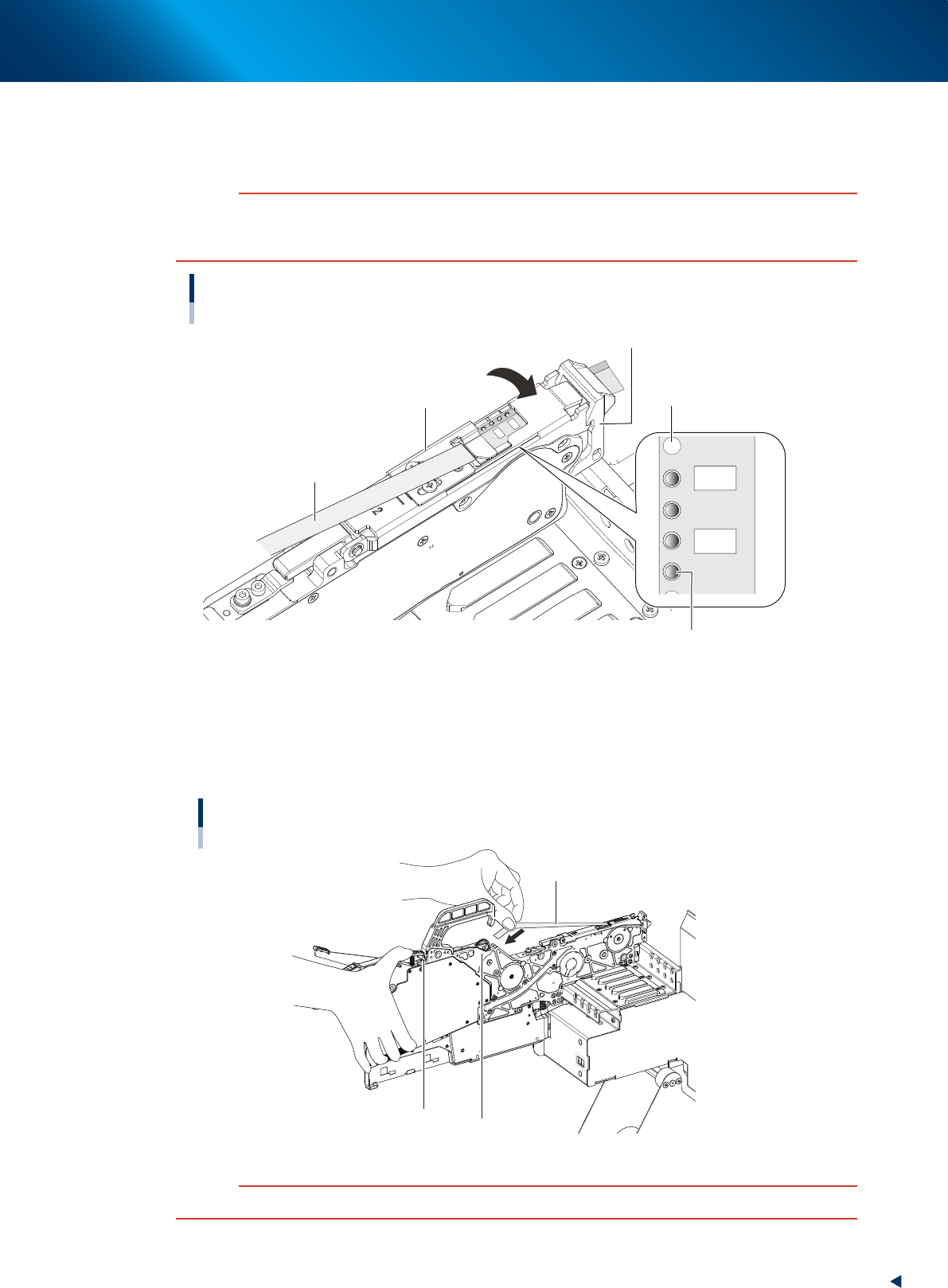

Reel the cover tape to take up the slack.
Pull the cover tape lightly to the arrowed direction and the take-up roller rotates to take up the slack
automatically.
Taking up the slack of the cover tape
Cover tape
23209-KMX-00
c
CAUTION
Take up the cover tape until all slacks on the cover tape removed.
During this operation, be careful not to be winded your fingers in the roller unit while taking up the cover tape.
TIP
The take-up roller performs taking up motion upon turning on the feeder.
Also, the taking up cover tape can be performed by reattaching the feeder after detaching from temporary tape set station.
