4.2.3 Attaching/Detaching upper cover

Upper cover is detached upon setting-up machine or maintenance work.

The following describes the procedure of attaching/detaching upper cover.

█

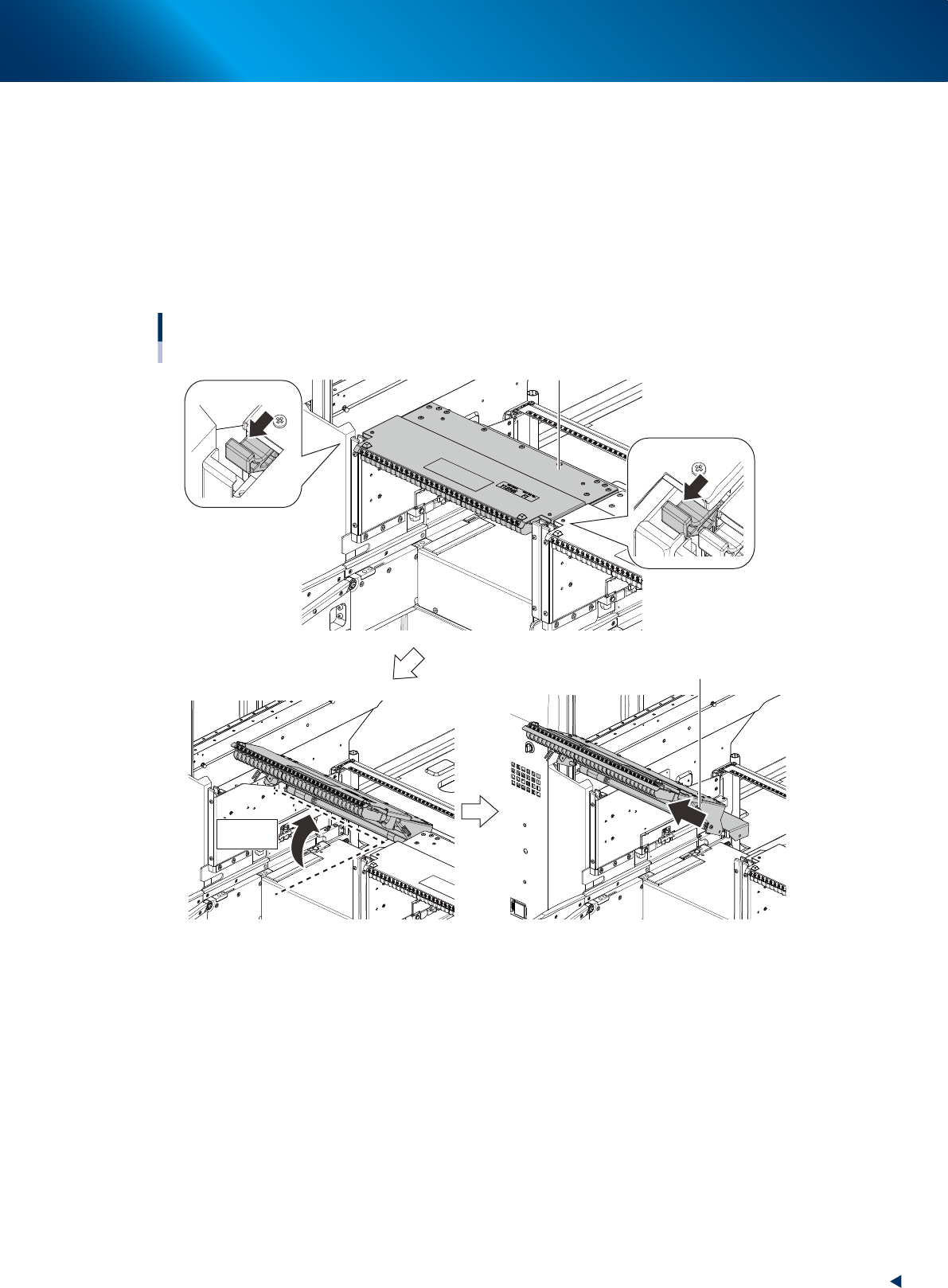

Detaching upper cover

1. Pull frontward the cover locks located at both sides of upper cover.

2. Open the upper cover 30 degrees upward by hand.

3. Pull out front-and-upward while supporting the upper cover with both hands.

Detaching upper cover

Pull out front-and-upward

30 deg.

Upper cover

Cover lock

23126-KMX-00

4. Component supply section

1-42

Chapter 1 Unit names and functions

█

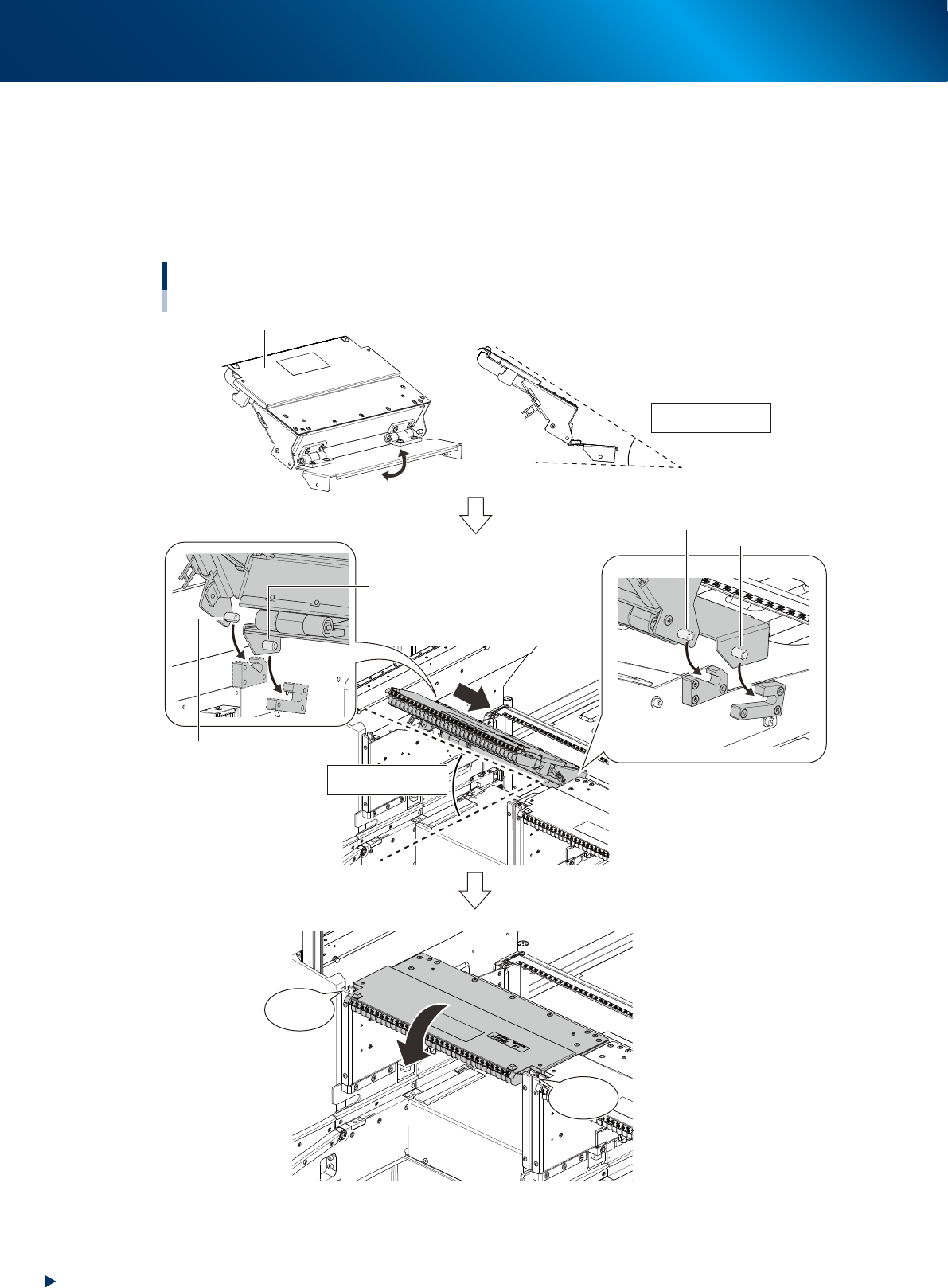

Attaching upper cover

1. Open upper cover

end

plate manually and hold position of upper cover guide section and end plate

as illustrated below (angle 30 degrees).

2. Insert upper cover into machine at an angle of 30 degrees. At this time, make far end pins and

second far end pins, located at both sides of upper cover, fit into their guides.

3. Close upper cover and confirm the cover locks at both sides click.

Approx. 30 degs.

Attaching upper cover

Approx. 30 degs.

■ Side view

Upper cover guide section

CLICK !

Far end pin (left)

Far end pin (right)

Second far end pin (right)

Second far end pin (left)

Upper cover end plate

23127-KMX-00

4. Component supply section

1-43

Chapter 1 Unit names and functions

█

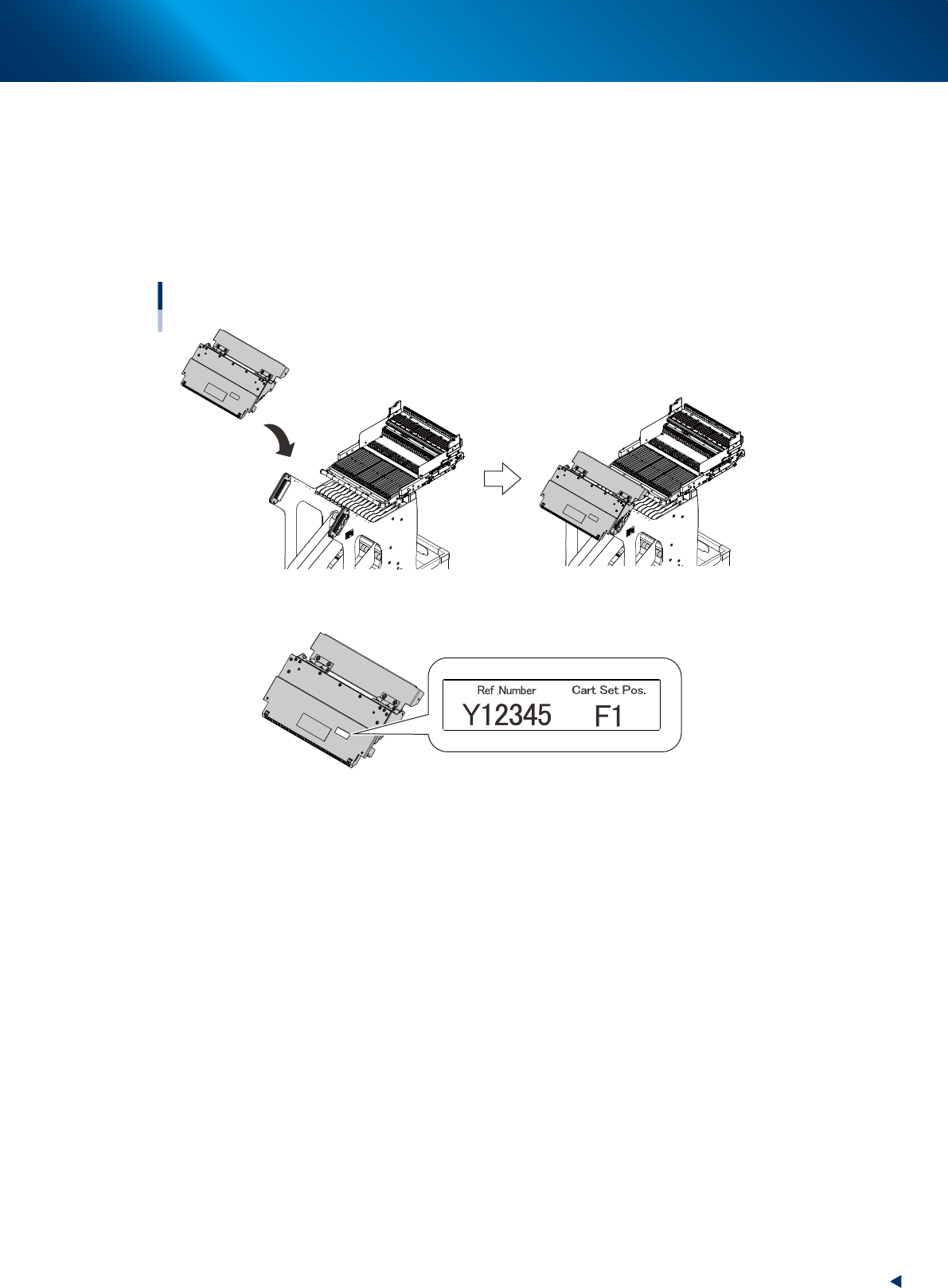

Temporary placing of upper cover and precautions

The upper cover can be placed temporarily upon handles of feeder exchange carriage.

Also, a cover identification label attached to upper cover carries machine serial number and number of

carriage set position.

The upper cover is not compatible for other carriage set position or other machine, as the guide position

is adjusted for the correspond machine upon assembling and then the carriage is shipped. Use with the

machine/carriage set position written on cover identification label.

Temporary placing of upper cover

■ Cover identification label
