App endix Contents A1 . Specifications A-1 A2. Y AM AHA Ser vice website for user A-2
1. Flow from starting up machine to production
3-34
Chapter 3 Flow from starting up machine to production
3
Start mounting operation.
1. Press the [START] button.
2. (Only for the first time after setting block skip) The block skip confirmation message appears.
Check the descriptions and press the [OK] button.
3. Press the [START] button once again to start up the automatic operation.

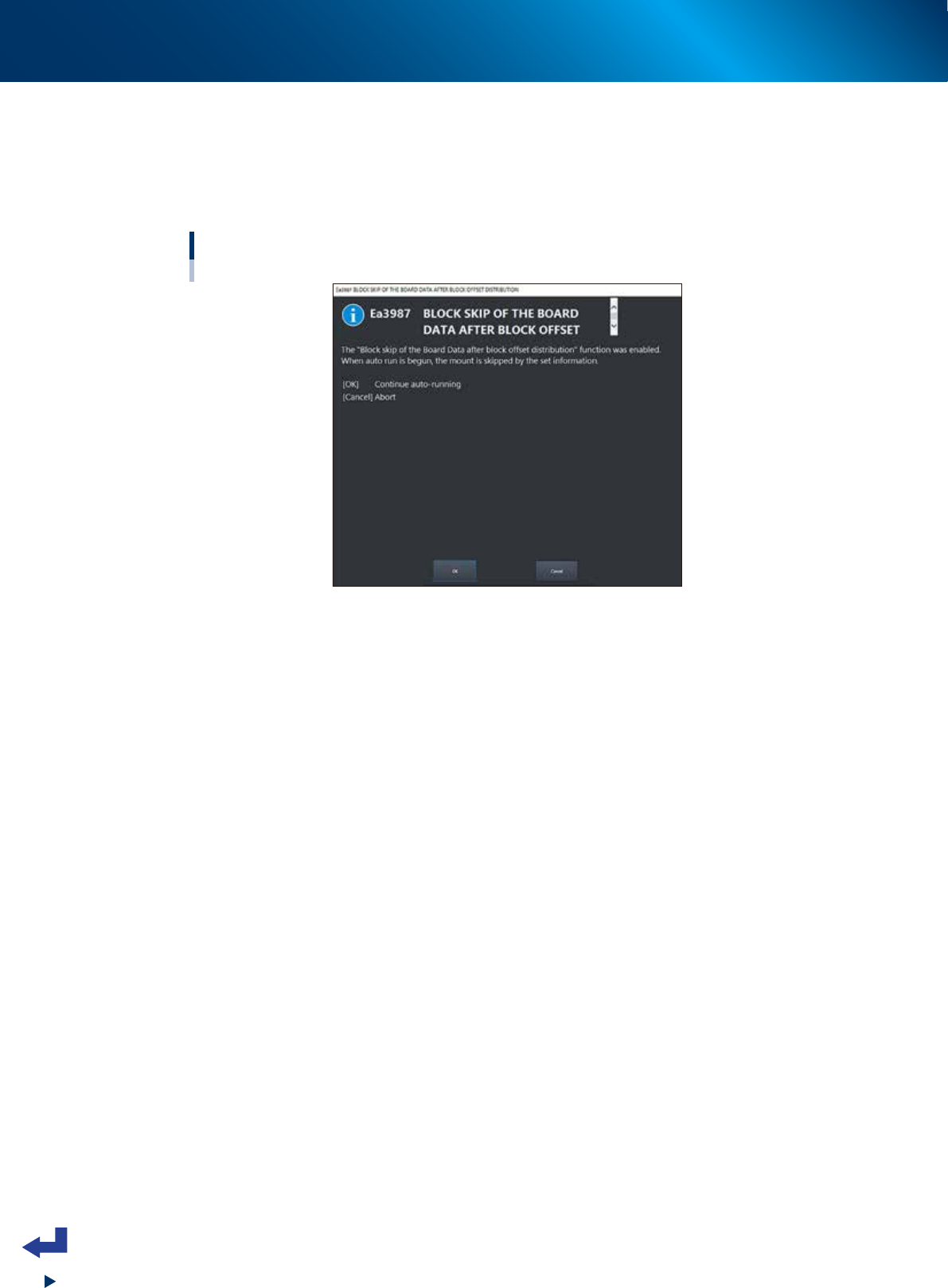

Block skip confirmation message
24325-KMX-00
A1. Specifications
A-1
Appendix
A1. Specifications
█
YRM20 specifications
Item Specifications
Operating ambient temperature
Function guaranteed: 15 to 35°C
Accuracy guaranteed: 20 to 28°C
Operating ambient humidity 20 to 80% (no condensation), optimal range: 50 to 60%
Noise level Under 78dB
Power requirement (voltage and frequency) 3-phase AC 200/208/220/240/380/400/416V +/- 10%, 50/60Hz
Power capacity 2.5kVA (Peak 5.4kVA) *
7
Breaker rating 30A*
8
Maximum current
55A*
9
Average power consumption
2.2kW
Power cable (conductor cross-section area) 6mm
2
or more
Overvoltage category *
1
Category III
Pollution degree *
1
Degree 2
Supply air pressure *
2
0.45MPa or more
Air consumption (ANR) *
6
RM • RM type : 60L/min (average); 270L/min (max.)*
10
HM • HM type : 260L/min (average); 320L/min (max.)*
10
FM • FM type : 160L/min (average); 270L/min (max.)*
10
Altitude 1000m or less above sea level
Board transport height *
3
900mm +/-10mm
Data
Number of mounting points *
4
32400 points
Number of component types 255 types per board
Number of fiducial marks *
5
128 sets per board
Board data capacity per one machine 500MB
*1: Conforms to IEC60664-1.
*2: This value is different from the air pressure setting of the machine(0.40MPa). Please supply clean and dry air treated with an air
dryer and air filter.
*3: Distance from the floor surface to the upper surface of conveyor belt.
*4: Decreases with the number of boards, blocks and fiducial marks.
*5: When using 2-point fiducial mode.
*6: Is a flow volume under condition of; Temperture: 20˚C, Relative humidity: 65%, Absolute pressure: 101.3kPa (1.03kgf/cm
2
or
760mmHg).
*7: When X and Y axes move at full speed.
*8: Includes the inrush current of the transformer.
*9: When 200V power is supplied.
*10: If the machine is equipped with eATS30 (option), add the air consumption of 30 L/min for each.
n
NOTE
See specification sheets for more detailed information not listed above.
