3. Head unit
1-24
Chapter 1 Unit names and functions

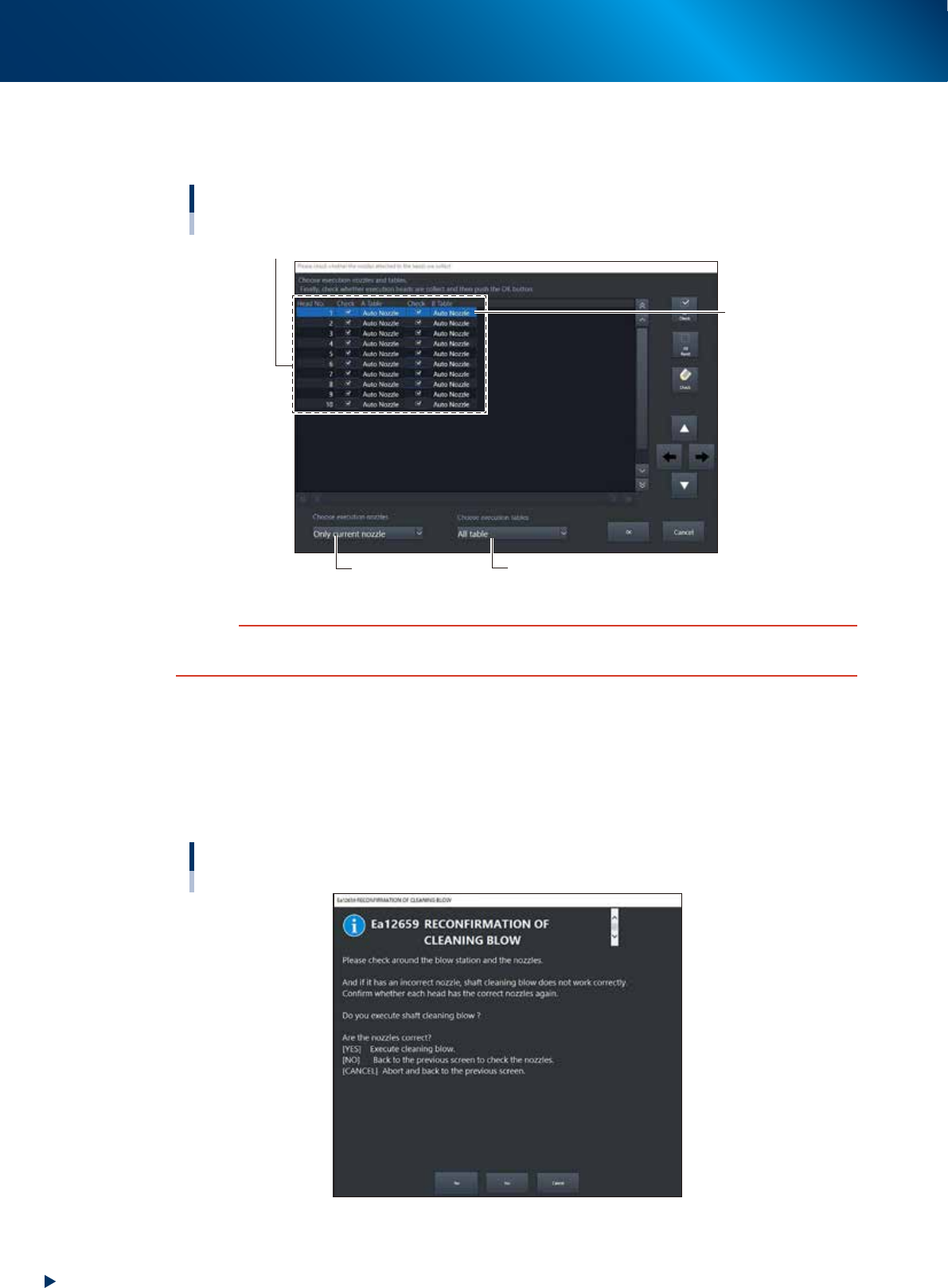

3
Specify the nozzles you want to clean by nozzle shaft blow.
The "Nozzle Setting" screen will appear. Select the table where the nozzle shaft cleaning blow is
performed, put a check mark on the nozzles, and then press the [OK] button.
Nozzle Setting screen
Select the check boxes for the nozzles you want to clean by nozzle shaft blow.
Select the table.
24101-KMX-00
c
CAUTION
When the nozzle is not subject to the nozzle shaft blow, the nozzle may collide with the air-blow station, causing
breakage. Before starting the nozzle shaft blow, be sure to check that the set nozzles meet the installed nozzles.
4
A confirmation screen appears asking you to make a final check.
Check the contents of the screen and press the corresponding button.
[YES] : Performs nozzle shaft blow of the selected nozzles.
[NO] : Returns to the "Nozzle Setting" screen.
[CANCEL] :
Closes the dialog box and returns to the [Unit]-[Head] screen without performing
nozzle shaft blow.
“RECONFIRMATION OF CLEANING BLOW” screen
24102-KMX-00
3. Head unit
1-25
Chapter 1 Unit names and functions
█

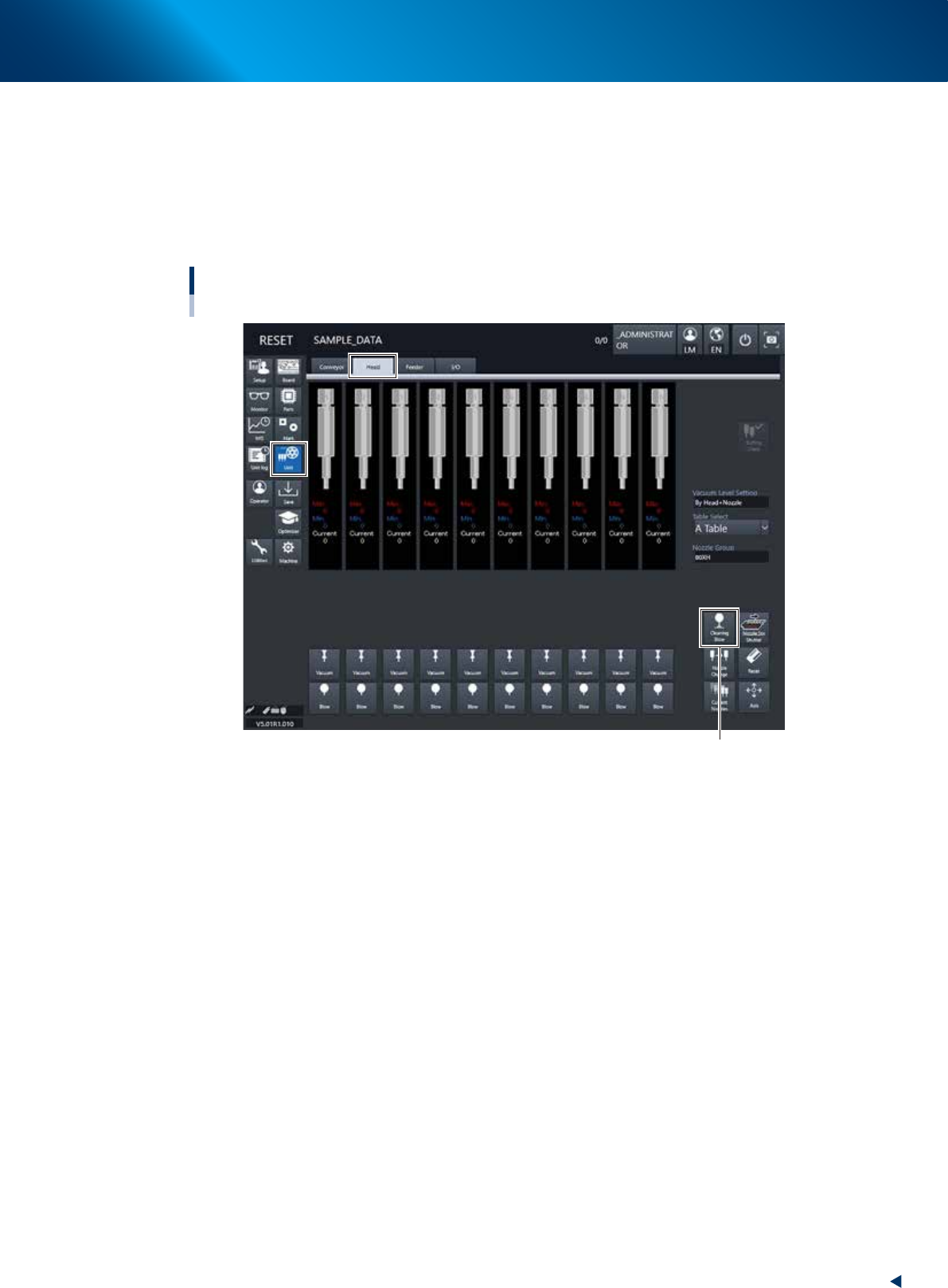

When the machine has a nozzle station (option)
When the settings are made so that all nozzles can be changed using a nozzle station (option), follow
these steps.
1
Open the [Unit] – [Head] screen.
2
Press the [Cleaning Blow] button.
[Cleaning Blow] button
Nozzle shaft blow
When using nozzle station (option)
24103-KMX-00
3. Head unit
1-26
Chapter 1 Unit names and functions
3
Specify the nozzles you want to clean by nozzle shaft blow.
The "Nozzle Setting" screen will appear. Select the target nozzle and table for the nozzle shaft
cleaning blow. Put a check mark on the nozzles, and then press the [OK] button.
Nozzle Setting screen
With nozzle station
Select the check boxes for the nozzles you want to clean by nozzle shaft blow.
Select the table.Select the target nozzle.
"Auto Nozzle"
should be selected
24104-KMX-00
c
CAUTION
When the nozzle is not subject to the nozzle shaft blow, the nozzle may collide with the air-blow station, causing
breakage. Before starting the nozzle shaft blow, be sure to check that the set nozzles meet the installed nozzles.
4
A confirmation screen appears asking you to make a final check.
Check the contents of the screen and press the corresponding button.
[YES] : Performs nozzle shaft blow of the selected nozzles.
[NO] : Returns to the "Nozzle Setting" screen.
[CANCEL] :
Closes the dialog box and returns to the [Unit]-[Head] screen without performing
nozzle shaft blow.
“RECONFIRMATION OF CLEANING BLOW” screen
24105-KMX-00
