3. Head unit 1-16 Chapter 1 Unit names and functions 3.3 Nozzle station (option) 3.3.1 Overview of Nozzle station T he nozzle station stores multiple types of nozzle described at "3.2 Nozzle types" abo ve to pe…
3. Head unit
1-15
Chapter 1 Unit names and functions
n
NOTE
The nozzles named "80XX" (e.g. 8004H, 8006H) are called "wide range nozzle", named "81XX" (e.g. 8101A, 8102A)
"narrow-pitch nozzle". The wide range nozzles support wide range of picking-up enabled component size, though they
require wider space (0.35 mm or more) from neighboring component upon placing.
n
NOTE

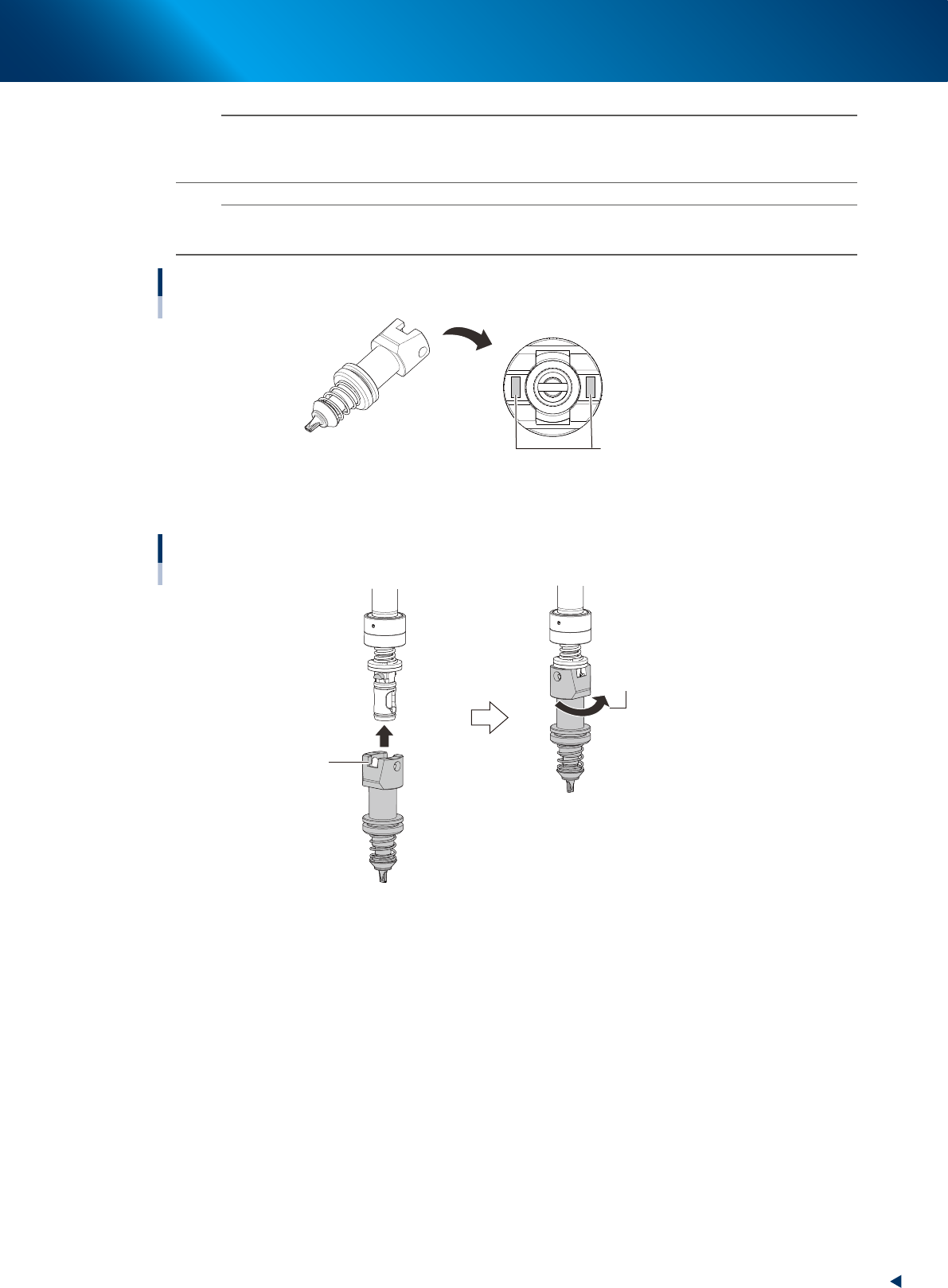

The data matrix with nozzle ID is pasted to each nozzle.
The machine reads automatically its ID and performs the nozzle management such as storing position in nozzle station.
Nozzle ID
Data matrix (Nozzle ID)
23112-KMX-00
█
Attaching/Detaching nozzle manually to RM head
Attaching nozzle to RM head
Notch
Rotate 90˚
1. Check the notch position of nozzle and insert to shaft.
2. Rotate nozzle 90˚ while pressing against.
*Perform reverse procedures to detach nozzle.
23119-KMX-00
3. Head unit
1-16
Chapter 1 Unit names and functions
3.3 Nozzle station (option)
3.3.1 Overview of Nozzle station
The nozzle station stores multiple types of nozzle described at "3.2 Nozzle types" above to perform
automatic nozzle change. The nozzle station is comprised of its base unit and nozzle holder storing nozzles
and whole nozzle holder can be attached/detached.
The nozzle station is equipped cylinders to perform ascending/descending the optional nozzle holder unit,
or opening/closing the nozzle holder shutter. The automatic nozzle change is performed by ascending the
nozzle holder unit and opening the nozzle holder shutter.
Nozzle station
Nozzle holder
Nozzle holder
Nozzle holder
shutter
Cylinder for ascending/descending
the nozzle station
Cylinder for opening/closing
the nozzle holder shutter
■ Ascending the nozzle holder ■ Opening/Closing the nozzle holder shutter
23113-KMX-00
3. Head unit
1-17
Chapter 1 Unit names and functions
3.3.2 Nozzle holder 1 and 2
The nozzle stattion can be installed one per front and rear side of machine. Moreover, two nozzle holders
are equipped per one nozzle station.
The nozzle holder of back side from operator is called nozzle holder 1 and near side, nozzle holder 2,
regardless of it is front/rear nozzle station.
Nozzle holder 1 / Nozzle holder 2
Holder 2
Holder 1
Holder 2
Holder1
Front
Rear
Holder 1
Holder 2
23114-KMX-00
n
NOTE
The numbering of nozzle storage position described at following section varies depending on the position where nozzle
holder is attached.
