3. Head unit
1-27
Chapter 1 Unit names and functions
►
Safety checks
The nozzle shaft blow function also contains the following safety checks.
• Nozzle shaft blow interruption alarm
The head immediately rises if operation stops during nozzle shaft blow due to emergency stop or an
interlock triggering. If the head rises but the air blow still continues, then the nozzle might come
loose from the head. To prevent this, a confirmation dialog box appears if the machine operation
stopped during nozzle shaft blow.
• Nozzle sensors to check whether a nozzle is left on the blow station
The nozzle shaft blow function forces high-pressure air through the nozzles during cleaning, so the
nozzles might come loose from the head if machine operation stops during nozzle blow. If a nozzle
comes loose from the head and remains on the blow station while the automatic operation still
continues, then the nozzle left on the blow station might interfere with other heads or so.
YRM 20 performs the missing nozzle detection by taking image of nozzles with side view cameras.
This check occurs at Z-axis UP completion following a shaft air-blow operation.
If a missing nozzle is detected, an error displays and all axes are stopped.
3. Head unit
1-28
Chapter 1 Unit names and functions
3.4.3 Automatic nozzle shaft blow procedure
The nozzle shaft blow can be automatically performed at the desired timing.
The following is the setting procedure.
1
Press the [Machine] button.
The "VmSpec" screen appears.
2
Select the "Schedule Specification".
Select the "Schedule Specification" on the left side of the “VmSpec” screen.
n
NOTE
The “Schedule Specification” is an item set up in the machine that requires the authorization at the administrator level.

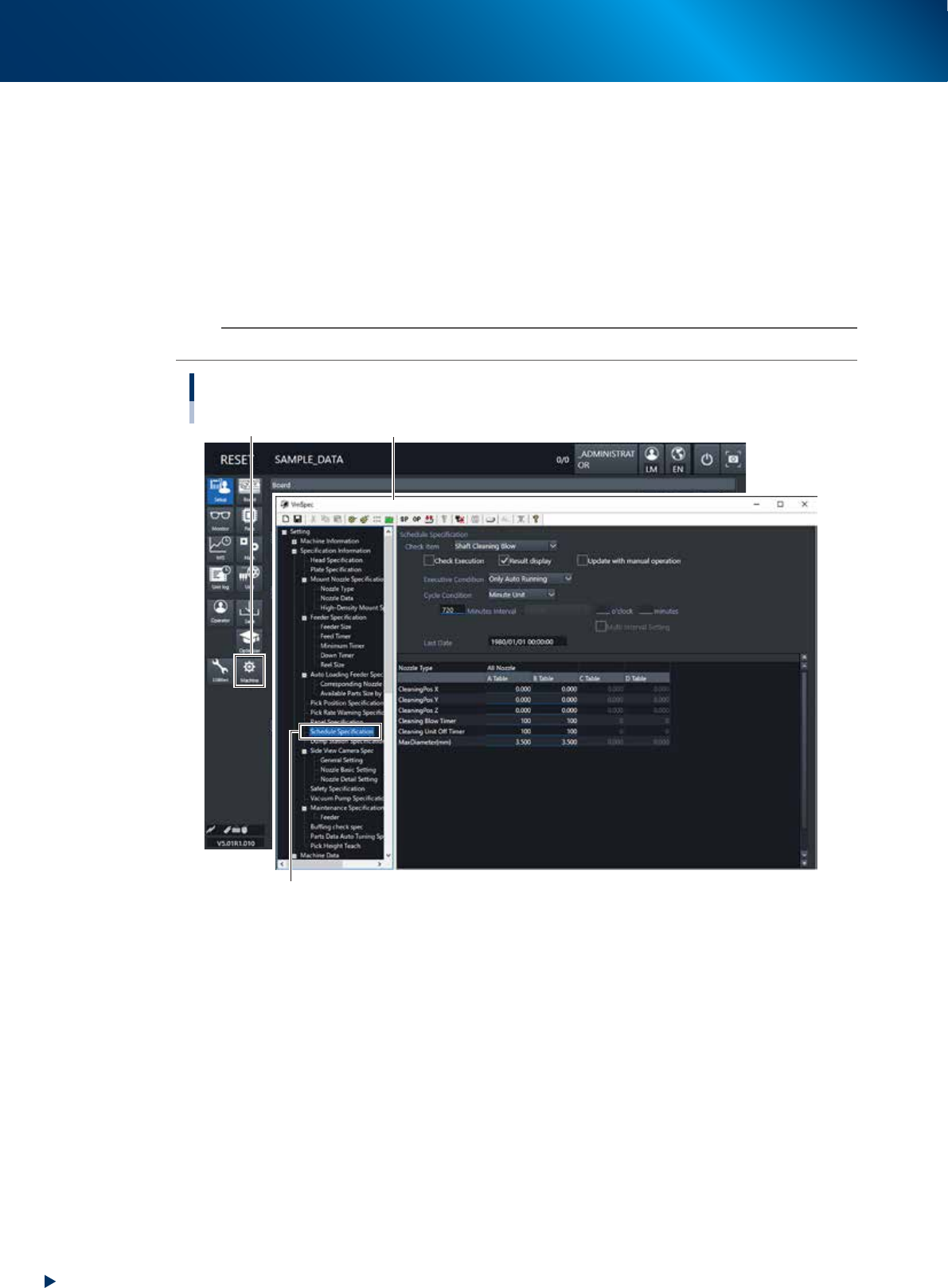

Open the “VmSpec” - “Schedule Specification” screen
[Machine] button VmSpec screen
Select the “Schedule Specification”
24106-KMX-00
3. Head unit
1-29
Chapter 1 Unit names and functions
3
Set the nozzle shaft blow.
1. Select the “Shaft Cleaning Blow” from the Check Item drop-down list.
2. Tick the checkbox of the “Check Execution”.
3. (If the machine has the nozzle station) Select the nozzle for nozzle shaft blow from "All
Nozzle" or “Only Using Nozzle” specified by the board data.
4. Set the “Executive Condition” and the “Cycle Condition”.
5. Press the save icon on the upper left corner of the screen to save the settings.
6. Press the close icon [x] on the upper right corner of the screen to exit the “VmSpec” screen.

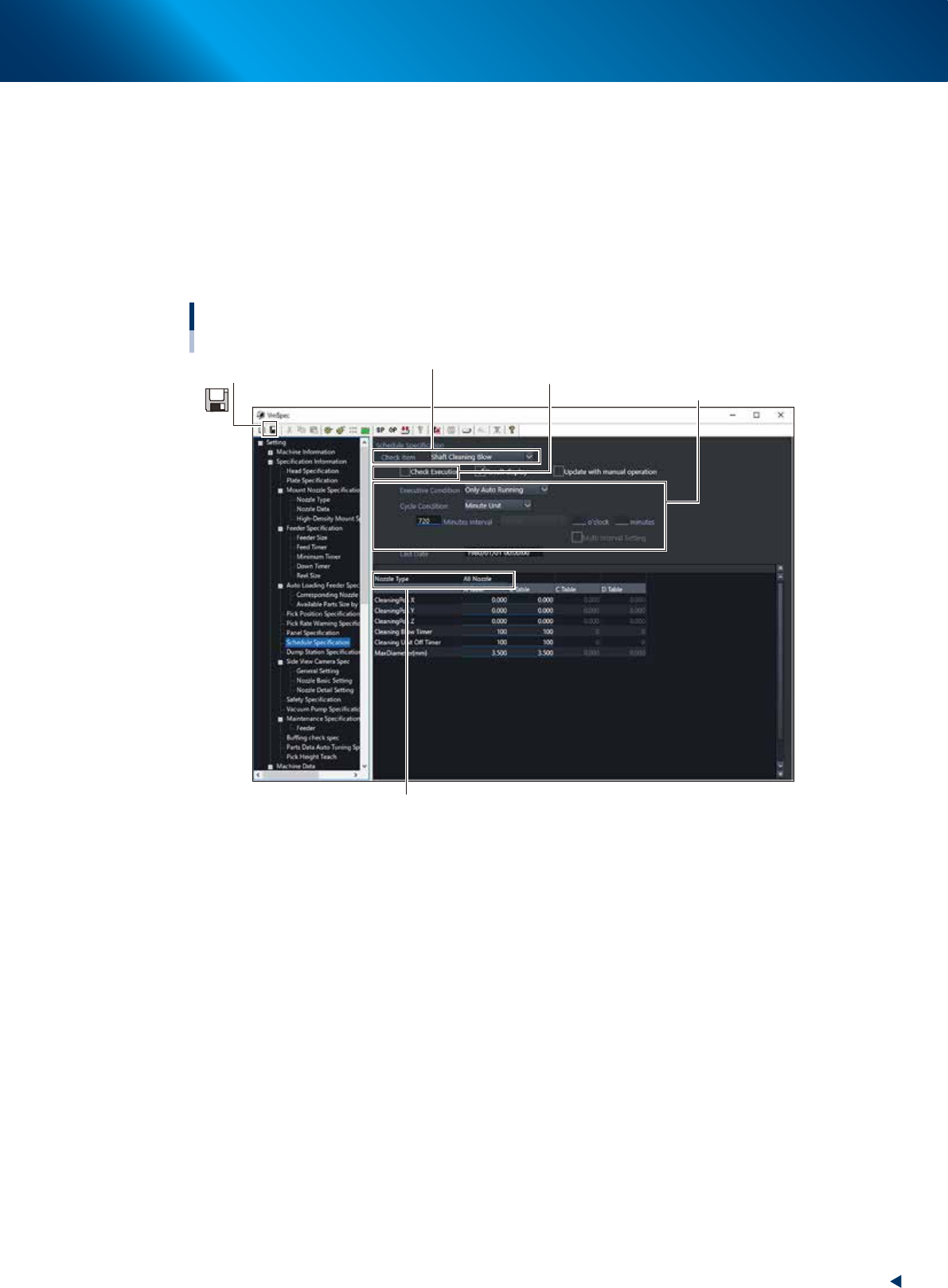

Setting automatic nozzle shaft blow
“VmSpec” screen
1. Select the “Shaft Cleaning Blow” from the Check Item drop-down list.
2. Tick the checkbox of the “Check Execution”.
5. Press the save icon.
3. If the machine has the nozzle station, select "All Nozzle" or
“Only Using Nozzle”.
4. Set the “Executive Condition” and “Cycle Condition”.
24107-KMX-00
4
Reload the board data.
The automatic nozzle shaft blow setting is reflected after reloading the board data.
