4. Component supply section
1-38
Chapter 1 Unit names and functions
4.2.2 Feeder exchange carriage attaching section of machine
YRM20 has up to four carriage attaching section, two for front and rear side each.
Feeder exchange cariage attaching section

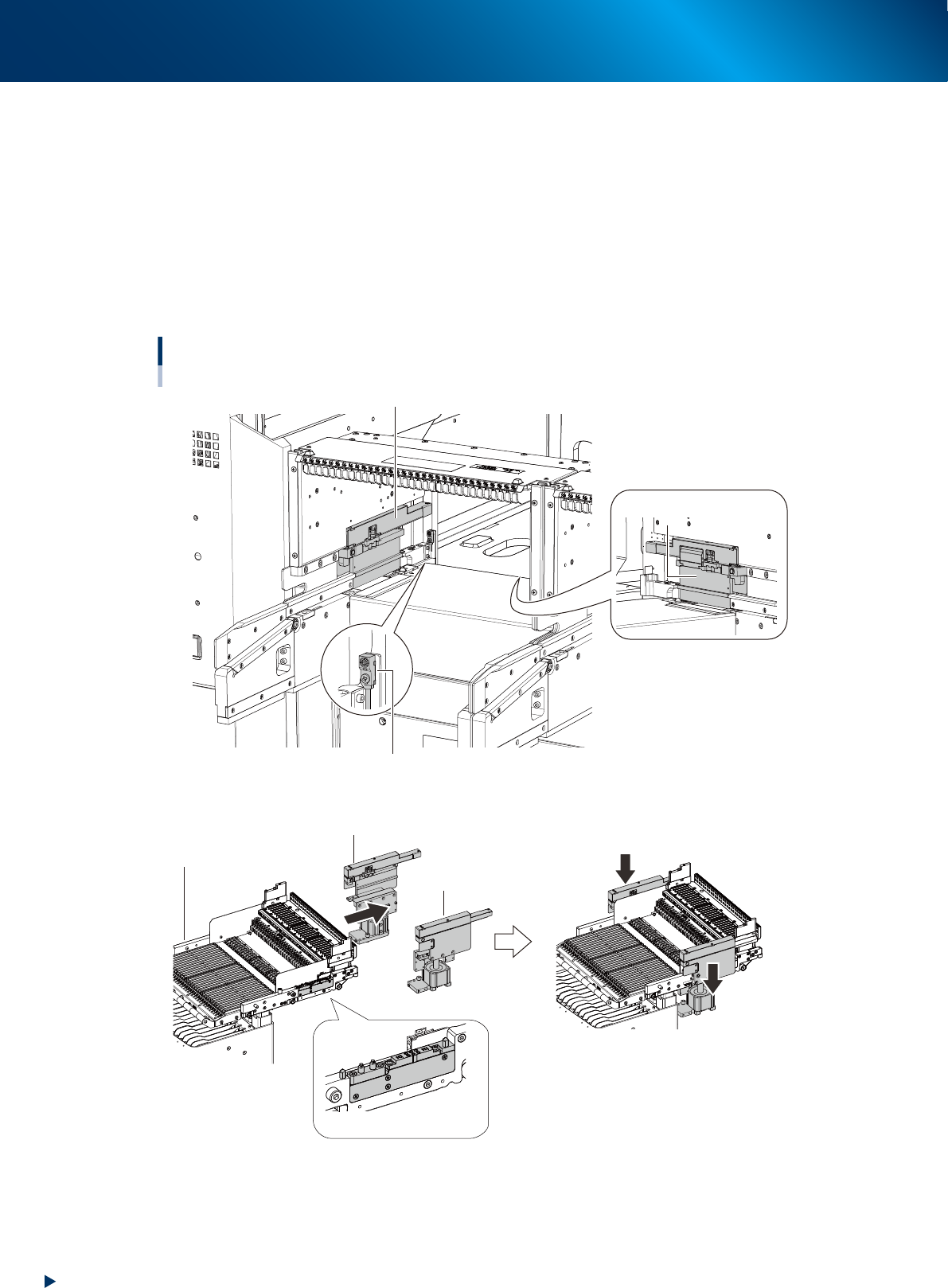

• Attached status of feeder exchange cariage and feeder
Feeder tape guide
Slope for feeder
exchange carriage
Tape guide cover
Upper cover
Tape guide cover
Upper cover
Feeder plate (Feeder exchane cariage)
23124-KMX-00
4. Component supply section
1-39
Chapter 1 Unit names and functions
Slope for feeder exchange carriage
Is a guide and also slope to attache carriage to machicne.
Upper cover
Closes the gap of machine safety cover to prevent inserting operator's hand.
TIP
It requires to open the upper cover and attach the feeders upon using SS feeder.
c
CAUTION
Feeder set number is attached to feeder plate and upper cover.
Make sure to check the both upper and lower number. Inserting forcibly the feeder while upper and lower numbers are
not aligned, it causes malfunction.
Tape guide cover
Feeder tape guide may float by faulting the part attachment to feeder or so. If the feeder tape guide
floats, the tape guide cover prevents interfering the head unit and tape guide.
4. Component supply section
1-40
Chapter 1 Unit names and functions
█
Clamp mechanism of feeder exchange carriage
The clamp mechanism of feeder exchange carriage are equipped on both sides of the carriage
attaching section of machine, and the forward end sensor at the far end of the section.
The machine recognizes with/without carriage by detecting the tip of carriage by the forward end
sensor.
The clamp switch of feeder exchange carriage is ON, while detecting the carriage by forward end
sensor and closing the machine safety cover, the clamp mechanism on both sides lowers and clamp the
carriage.
The connector is equipped at the clamp section of carriage side, and the power/air are supplied to
carriage by clamping carriage.
Clamp mechanism of feeder exchange carriage
Forward end sensor
Clamp mechanism of carraige
(on the right side)
Clamp mechanism of carraige (on the left side)
Clamp mechanism of carraige
(on the right side)
Clamp mechanism of carraige (on the left side)
Carriage clamping connector
(on the right side)
• Clamping motion of carriage
Feeder exchange carriage
23125-KMX-00
