4. Component supply section
1-51
Chapter 1 Unit names and functions
4
Enter Feeder Set No. for the copied component.
1. Press the [Assistant] button again to return to the "Pick" tab.
2. Enter the desired number to "Feeder Set No." of the component copied in Step 3. The desired
number must not overlap the other feeder set position.

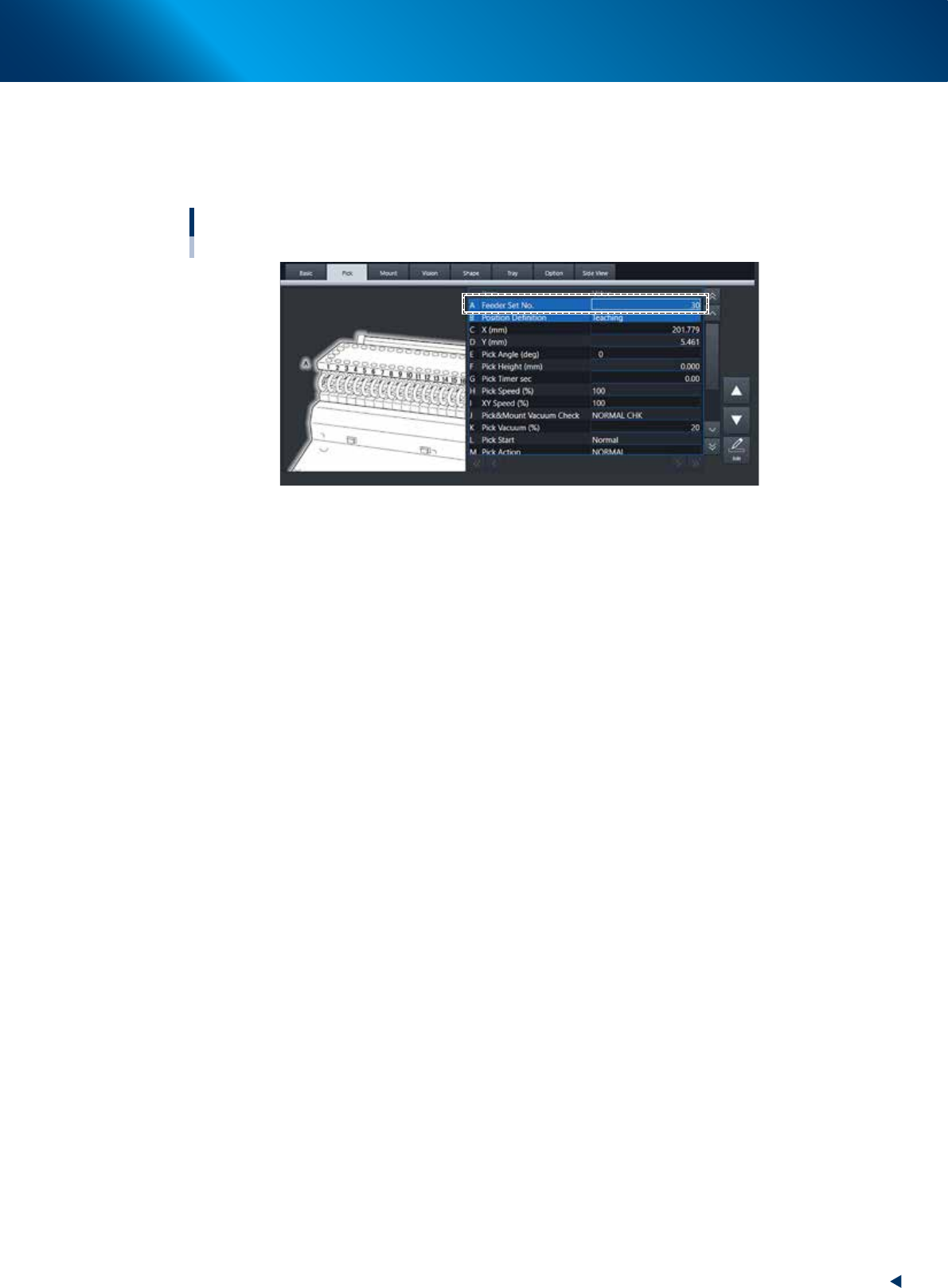

Entering Feeder Set No.
[Parts] - [Pick] tab
24116-KMX-00
4. Component supply section
1-52
Chapter 1 Unit names and functions
5
Specify the alternative component numbers.
1. Select the "Option" tab.
2. Select data No. 6 and enter "19" for the "A Alternative Parts" of Option tab.
3. Select data No.19 and enter "20"for the "A Alternative Parts" of Option tab.
4. Select data No. 20 and enter "6" for the "A Alternative Parts" of Option tab.
The settings above mean that the alternative component for No. 6 is No.19, that for No.19 is No.
20 and that for No. 20 is No. 6, just like making a loop as an alternative component group.
Detach No. 6 feeder from machine while it is substituted by No. 19, set new components and attach
again the reloaded feeder to No. 6 position of machine. When the reloaded feeder is set to No. 6,
components are supplied from feeder No. 6 automatically.
c
CAUTION
Data No. for alternative components must make a loop.

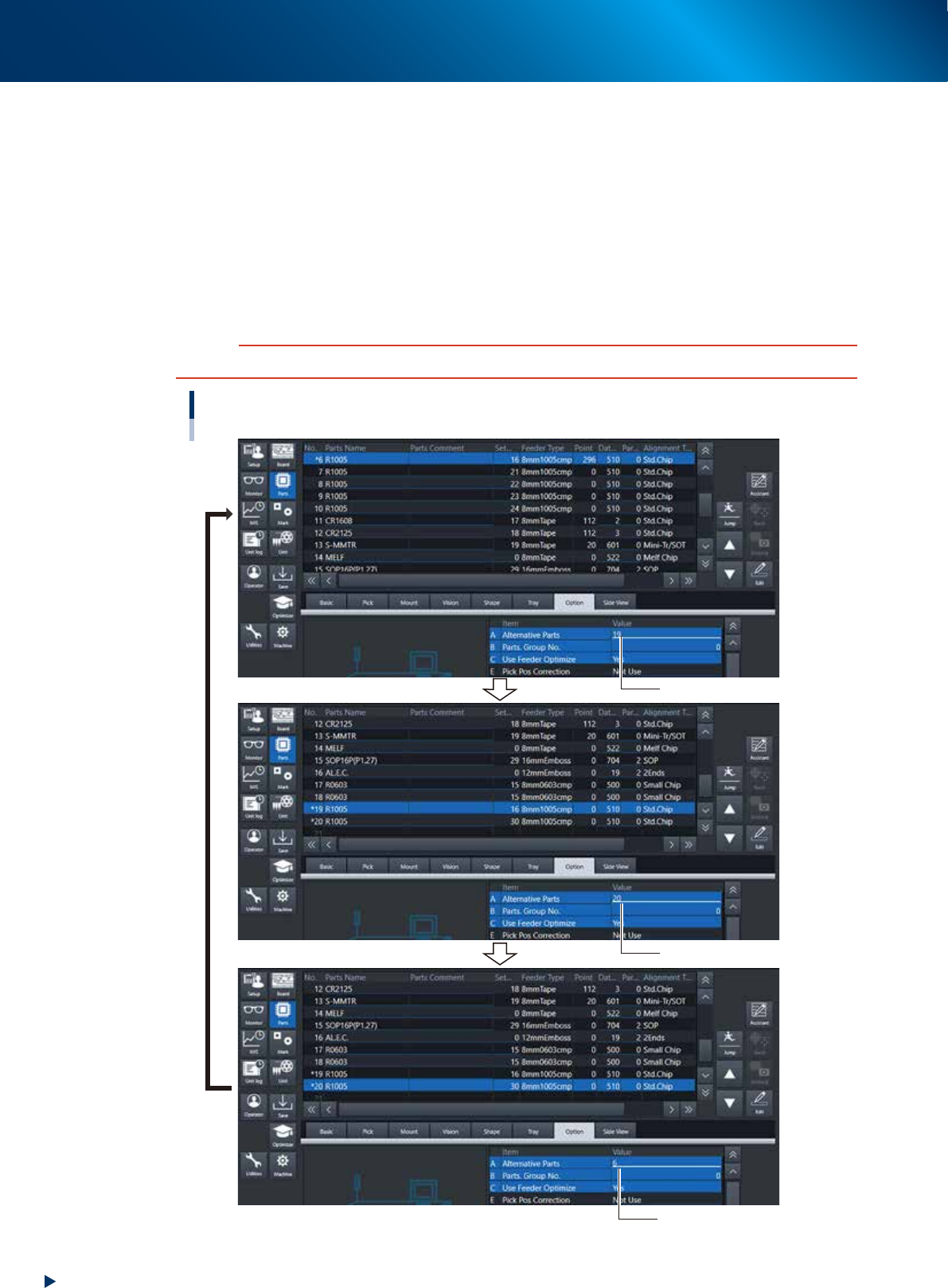

Alternative component number settings
Enter “19”.
Enter “20”.
Enter “6”.
24117-KMX-00
5. Conveyor
1-53
Chapter 1 Unit names and functions
5. Conveyor
5.1
Conveyor unit
The following describes the conveyor unit that carries-in and clamps a board.
Conveyor unit
Right-to-left flow example
1
2
3
4
6
7
9
Board transfer direction
8
5 (Mounting stage 2)
5 (Mounting stage 1)
23132-KMX-00
1. Entrance stopper
If a board is on the mounting position already, other board carried into the conveyor waits at the
position of the entrance stopper.
2. Mounting stage 1 main stopper
The board stopper for the mounting position of the mounting stage 1. A board carried into the conveyor
is in contact with the main stopper, then it stops.
3. Mounting stage 2 main stopper
The board stoppers for mounting position of the mounting stage 2. There are two main stoppers for the
mounting stage 2, which are used depending on the board sizes.
